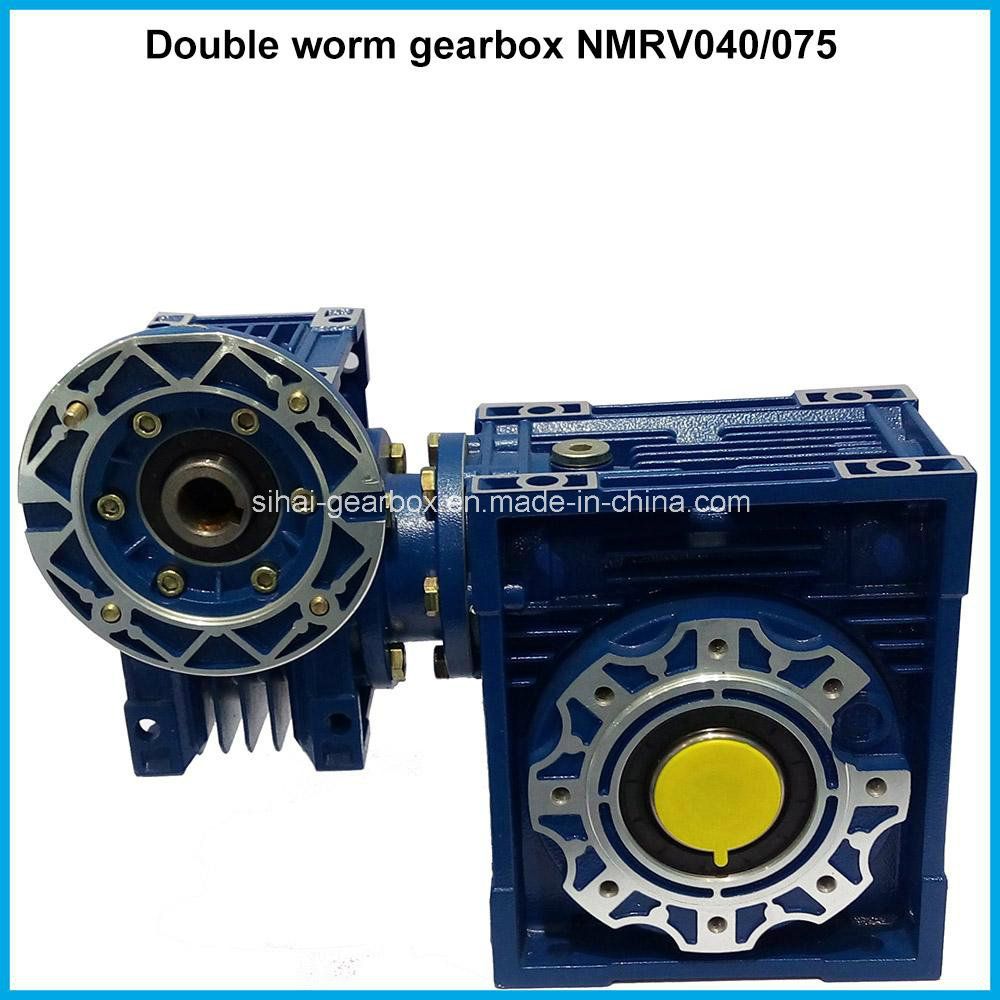

Double Worm Gearbox for Transmission Power

Name: Double Worm Gearbox for Transmission Power
Brand: china-manufacturer-directory.com
SKU: 758222145
Availability: InStock
Rating: 4.6 (143 reviews)

Supplier:	Taizhou Sihai Machinery Co., Ltd.
Price:	US $ 23/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	NMRV025-NMRV150
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Blue
Bearing:	NSK Bearing/ Homemade Bearing
Speed Ratio:	5/10/15/20/25/30/40/50/60/80/100
Quality Guarantee:	One Year
Oil Seal:	Nak Oil Seal
Certificate:	ISO9001:2000
Lubricant:	Mineral / Synthetic
Manufacturing Method:	Rolling Gear
Toothed Portion Shape:	Spur Gear
Type:	Worm and Wormwheel
Material:	Aluminium

Product Description

Characteristics:
(1)Large output torque
(2) Safe, reliable, economical and durable
(3) Stable transmission, quiet operation
(4)High heat-radiating efficiency, high carrying ability
(5) Combination of two single-step worm gear speed reducers, meeting the requirements of super speed ratio
Technical data:
(1) Iput power:0.06kw-15kw
(2) Output torque:4-2320N.M
(3) Speed ratio: 5/10/15/20/25/30/40/50/60/80/100
(4) With IEC input flange: 56B14/71B14/80B5/90B5…
Materials:
(1)   NMRV025-NMRV090: Aluminium alloy housing
(2)   NMRV110-150: Cast iron housing
(3)   Bearing: NSK bearing & Homemade bearing
(4)   Lubricant: Synthetic & Mineral
Color:
(1)   Blue / Light blue
(2)   Silvery White
Quality control
(1) Quality guarantee: 1 year
(2) Certificate of quality: ISO9001:2000
(3) Every product must be tested before sending

Motor power	Model	speed ratio	output speed	output toruqe
0.06kw 1400rpm	NMRV030	5	280rpm	2.0N.M
	NMRV030	7.5	186rpm	2.6N.M
	NMRV030	10	140rpm	3.3N.M
	NMRV030	15	94rpm	4.7N.M
	NMRV030	20	70rpm	5.9N.M
	NMRV030	25	56rpm	6.8N.M
	NMRV030	30	47rpm	7.9N.M
	NMRV030	40	35rpm	9.7N.M
	NMRV030	50	28rpm	11.0N.M
	NMRV030	60	24rpm	12.0N.M
	NMRV030	80	18rpm	14.0N.M
0.09kw 1400rpm	NMRV030	5	280rpm	2.7N.M
	NMRV030	7.5	186rpm	3.9N.M
	NMRV030	10	140rpm	5.0N.M
	NMRV030	15	94rpm	7.0N.M
	NMRV030	20	70rpm	8.8N.M
	NMRV030	25	56rpm	10.0N.M
	NMRV030	30	47rpm	12.0N.M
	NMRV030	40	35rpm	14.0N.M
	NMRV030	50	28rpm	17.0N.M
	NMRV030	60	24rpm	18.0N.M
0.12kw 1400rpm	NMRV030	5	280rpm	3.6N.M
	NMRV030	7.5	186rpm	5.2N.M
	NMRV030	10	140rpm	6.6N.M
	NMRV030	15	94rpm	9.3N.M
	NMRV030	20	70rpm	12.0N.M
	NMRV030	25	56rpm	14.0N.M
	NMRV030	30	47rpm	16.0N.M
	NMRV030	40	35rpm	19.0N.M
	NMRV030	50	28rpm	22.0N.M
0.18kw 1400rpm	NMRV030	5	280rpm	5.3N.M
	NMRV030	7.5	186rpm	7.7N.M
	NMRV030	10	140rpm	10.0N.M
	NMRV030	15	94rpm	14.0N.M
	NMRV030	20	70rpm	18.0N.M
	NMRV030	25	56rpm	20.0N.M
	NMRV030	30	47rpm	24.0N.M
