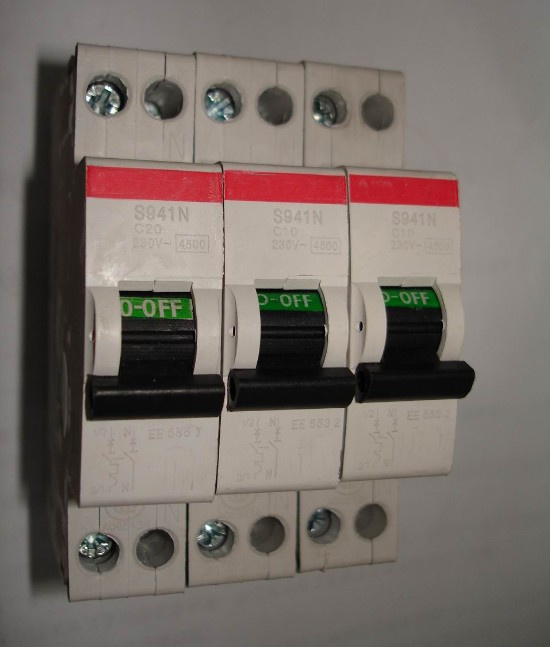

Product Specifications
| Prod Model: |
S941N |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Structure: |
MCB |
| Certification: |
CE |
| Installation: |
DIN Type |
| Poles Number: |
1p, 2p, 3p, 4p |
Product Description
Technical Data
. Pole No.: 1P+N
. Rated voltage: AC 230V
. Rated current (A): 3, 6, 10, 16, 20, 25, 32
. Tripping curve: C
. Rated short-circuit capacity(Icn): 4500A
. Rated frequency: 50/60Hz
. Energy limiting class: 3
. Rated impulse withstand voltage: 6.2Kv
. Electro-mechanical endurance: 4000
. Connection terminal: Pillar terminal with clamp
. Connection capacity: Rigid cinductor up to 10mm
2. Fastening torque: 1.2Nm
. Installation:
On symmertical DIN rail 35mm
Panel mounting
Construction and Feature
. Protection against both overload and short circuit
. Integrated with switched phase and neutral pole
. Neutral pole provides no protection against overload and short circuits
. Easy mounting onto 35mm DIN rail
