Product Specifications
| Prod Model: |
XLB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control System: |
Electric Control |
| Perssure: |
Max 2000PA |
Product Description

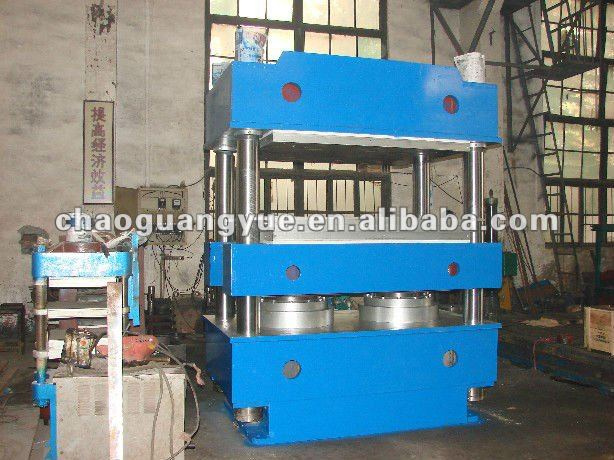

rubber vulcanizer equipment
Rubber vulcanizing equipment:
Plate vulcanizer is the machinery which produce all of kinds of rubber products, and thermosetting plastic like as related specifications aseling products, projected rubber, rubber plate and so on. this kind machinery has three types of frame type, pillar type, and jaw type. It is economical, advantage of compact structure, high working pressure, high producing efficiency,. Operation is safe and reliable. Also we can provide all kinds of sizes, types, and operation ways according to the customer's request.
type |
XLB-DQ(frame)900*900*1 |
XLB-DQ(frame)1200*2000*2 |
XLB-DQ(frame)1300*2000*1 |
total pressure(MN) |
250t |
315t |
560t |
Hot plate specification(mm) |
900*900 |
1200*1200 |
1300*2000 |
plate clearance(mm) |
200 |
200 |
400 |
working layer number |
2 |
2 |
1 |
piston stroke(mm) |
400 |
400 |
400 |
plate pressure(Mpa) |
30 |
22 |
21.5 |
main motor power |
3 |
3 |
8 |
Overall dimension(L*W*H)(mm) |
1340*1050*2400 |
1685*1320*2450 |
200*1860*2500 |
weight(kg) |
7500 |
9500 |
17000 |
We can offer more products of different specifications according to your demand.
The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.
The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.
The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
