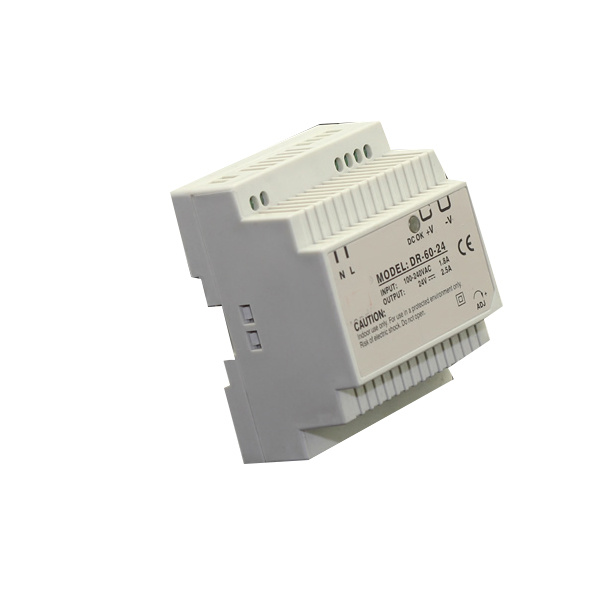

Switching power supply
AC Input voltage range:85-264VAC ;124-370VDC
AC Inrush Current:18A/115V 36A/230V current
DC adjustment range:10% rated output voltage
105-160%Overload protection type:cut output, reset, automatic recovery
Start, rise,hold time:100ms, 30ms, 100ms at full load and 230VAC
Dimension:78*93*56 mm
DR-60-5V
5V,0-5A
±2%
100mvp-p
72%
DR-60-12V
12V,0-3.5A
±1%
200mvp-p
77%
DR-60-15V
15V,0-3A
±1%
240mvp-p
77%
DR-60-24V
24V,0-2A
±1%
480mvp-p
80%
