Product Specifications
| Prod Model: |
LH-0810 /LH-900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Lh-Series |
| Coating Technology: |
Ion Coating |
| Size: |
D900*H1000mm . |
| Certification: |
ISO |
| Type: |
Arc Ion Coating Machine |
| Method Type: |
Auto/Half Automatic/Manual |
| Application: |
Tools and Moulds |
Product Description

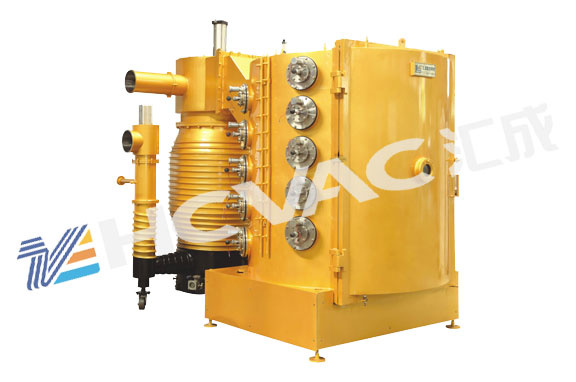

Drills and Cutters Tool Arc Ion Plating Machine/Vacuum Coating Equipment for Drills and Cutters Tool
Specifications
Drills and Cutters Tool Arc ion plating machine is designed for hard and super hard protective coatings on tools.
Drills and Cutters Tool Arc ion plating machine is designed for hard and super hard protective coatings on tools., cutter and mould.
The vacuum sealing of chamber and the interior design and material of moving parts are under consideration of high-temperature bear, assembling high efficiency roundness arc evaporation source or rectangular flat arc evaporation source. We can also install hollow cathode gun and impact resistance bias power supply, to ensure the density and reactivity of plasma, increase the compactness and adhesion of coatings. Substrates can be three-dimensional motion, to enhance the uniform of coating.
For more information,pls contact with : Sophia
Mobile/Line:86 13600282018
The full automatic control processing is steady and perfect. It can deposit TiN, TiC, TiCN, TiAlCN, TiCrCN, TiAlCrN, multilayer super hard coatings, whcih is used in precision mould industry(dies, shear mould, standard mould and moulding mould etc), tool industry (drill, hard alloy, milling cutter, broaches, screw tap and gear cutter etc), and automatic industry.
Mode
Dimension
| LH-800
| LH-1100
| LH-1250
| LH-1600
| LH-1800
|
800*1000mm
| 1100*1000mm
| 1250*1500mm
| 1600*1800mm
| 1800*1800mm
|
Maily application
| Metal decorative coating and Ceramic decorative coating
|
Coating mode and main confirguration
| Eight multi-arc targets
| Ten multi-arc targets
| Twelve multi-arc targets
|
Twenty multi-arc targets
|
Twenty two multi-arc targets
|
Power source
|
Electric-arc power, Filament power,
|
Process gas control
| Mass flowmeter + Electromagnetic ceramic valve
|
Vacuum chamber structure
|
Vertical side opening door, pump system postposition, double water cooling
|
Vacuum system
|
Molecule pump +Roots pump +Mechanical pump(8.0*10 -5 Pa)
Diffusion pump +Roots pump +Mechanical pump(8.0*10 -4 Pa)
|
Workpiece baking temperature
|
Normal temperature to 350 centi-degree PID control, radiation heating.
|
Workpiece motion mode
| Public rotation Frequency control: 0-20 rotation per minute
|
Measure mode
|
Number display composite vacuum gauge: from atmosphere to 1.0*10 -5 Pa
|
Control mode
|
Manual/Automatic/PC/PLC + HMI/PC four choice of control mode
|
Remark
|
We can design the dimension of the equipment according to customers special technique requirement.
|
