Product Specifications
| Prod Model: |
DCGF series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lifetime: |
10-20years |
| Quality: |
CE Standard |
| Grade: |
Food Grade |
| Filling Bottle Size: |
1000-20000 B/H |
| Composition: |
Filling Machine |
| Processing Material: |
Carbonated Drinks |
| Process: |
Filling |
Product Description
Drinks Making Machine
Key words: Soda maeker, soda making machine, Filling machine, bottle drinks filling machine, Carbonated beverage filling machine/CSD filling line, soda water filling machine, spirit drinks filling machine

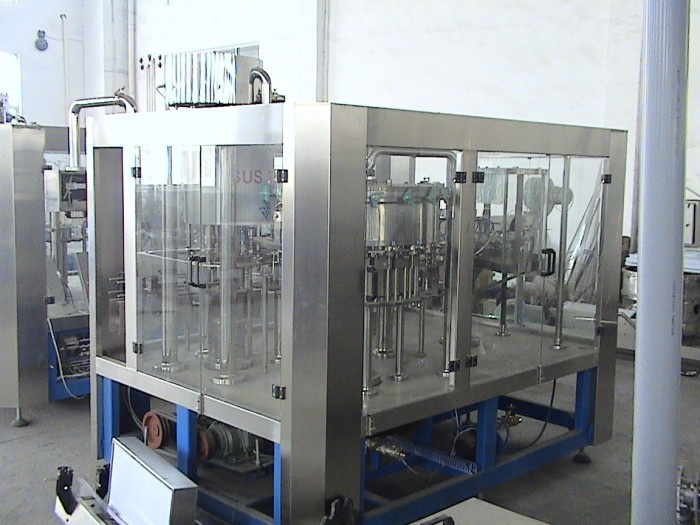

Washing, filling, capping 3-in-1 Monobloc
The carbonated beverage filling equipment adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping. It is equipped with CO2 accuracy pressure control, so that the liquid level is always stable. The application of alarm devices for bottle jam, bottle shortage, bottle damage, cap shortage, over loading etc in several places ensure the quality of its production. The machine obtains advantages of high reliability, high efficiency, high grade of automation and easy operation
Feature
1. This carbonated filling monobloc is made of super stainless steel. It has compact structure, good appearance, scientific and reasonable design. It is available for the bottles from 500ml to 2000ml.
2. This machine adopts advanced bottle neck clamping system, which get rid of the requirement of bottle height. So there is only a few parts need to change while different bottles are used on the same machine, such as the guide plate and the poking wheel.
3. This carbonated beverage filling machine adopts advanced PLC control and touch screen. The key electric elements are from international famous brand: Mitsubishi
4. It is equipped with high speed filling valve of high precision filling.
5. Specially designed bottle clip is made of stainless steel and durable, non-contact bottle-screw part, to avoid secondary contamination, no process dead angle, which is easy to clean.
6. The whole machine is equipped with perfect overload protective device that can keep the equipment and operator safely.
|
Model |
DGCF16-12-6 |
DGCF18-18-6 |
DGCF24-24-8 |
DGCF32-32-10 |
DGCF40-40-12 |
|
Production capacity(500ml) |
2000-4000 |
4000-6000 |
6000-8000 |
8000-12000 |
8000-12000 |
|
Filling precision |
≤ ± 5mm(liquid level) |
|
Filling pressure(MPa) |
< 0.4 |
|
Polyester bottle standard(mm) |
Bottle neck40-80
Bottle height: 130-280 |
Bottle neck: 50-100 bottle height: 150-320 |
|
Suitable cap shape |
Plastic screw cap |
|
Water pressure of washing bollte(MPa) |
0.18-0.25 |
|
Water consumption for water bottle(kg/h) |
1300 |
2000 |
2500 |
3000 |
3000 |
|
Spraying positon |
5 |
5 |
6 |
12 |
12 |
|
Dripping bottle position |
2.5 |
3.0 |
3.5 |
7 |
7 |
|
Gas source pressure |
0.4 |
|
Gas consumption (m3/min) |
0.3 |
0.4 |
0.4 |
0.5 |
0.5 |
Total power
(kw) |
5.03 |
5.03 |
6.57 |
8.07 |
8.07 |
|
Total weight |
2000 |
3000 |
4000 |
5000 |
5000 |
Dimension(L*W*H)
mm |
2100*1500*2200 |
2450*1800*2200 |
2750*2180*2200 |
3600*2200*2600 |
3600*2200*2600 |
Professional filling machine manufacturer---Zhangjiagang Jiayuan Machinery Co., Ltd. is a professional beverage machinery manufacturer to produce beverage machine and water treatment equipment. Our business philosophy is market-oriented, technology-guided, quality-based and customers-first. We now have passed ISO9001 international quality management system certification and own a perfect quality guarantee system.
Our products scope as below:
PET bottle filling machine
Water filling machine
Juice filling machine
Beverage filling machine
Soft drink filling machine
Alcohol filling machine
Other bottle filling machine
Labeling machine, wrap packing machine, water treatment system, and some auxiliarys.
