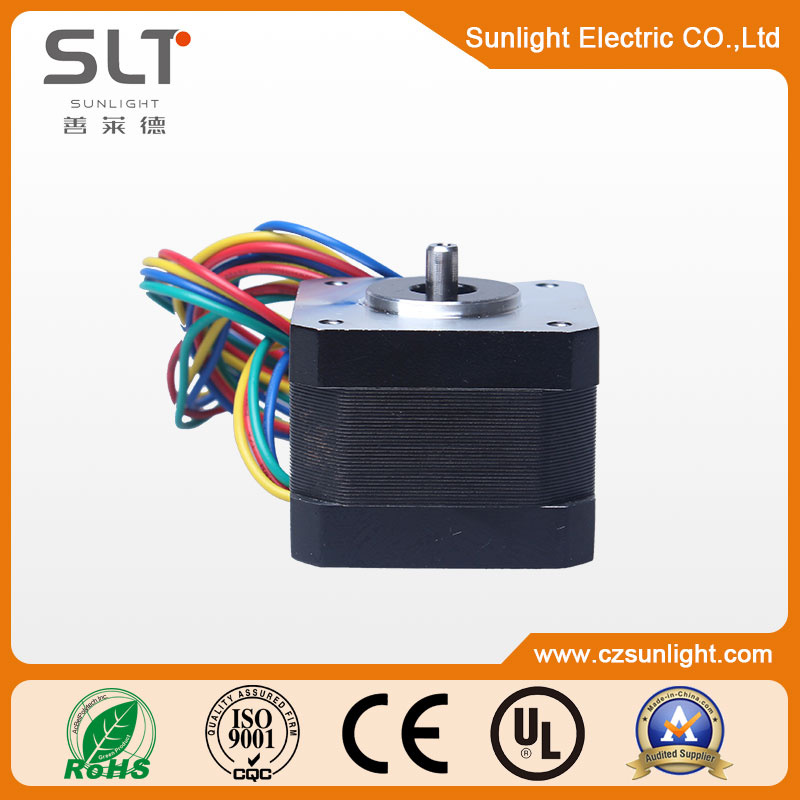

Driving Hybrid Electric DC Stepper Motor for 3D Printer
Product Specifications
| Prod Model: |
SLT42S01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Step Angel Accuracy: |
+/-5% |
| Resistance Accuracy: |
+/-10% |
| Inductance Accuracy: |
+/-20% |
| Temperature Rise: |
80° C Max |
| Ambient Temperature: |
-10oc-+50oc |
| Insulation Resistance: |
100mmin.500 VDC; |
| Dielectric Strength: |
500V AC for One Minute |
| Shaft Radial Play: |
0.06max |
| Shaft Axial Play: |
0.08max |
| Number Of Stator: |
Three-Phase |
| Excitation Mode: |
HB-Hybrid |
| Operate Mode: |
The Three Single Phase |
| Type: |
Magnetic-Electric |
| Brand: |
Slt |
Product Description
1,Voltage:4V-48V
2,Current:0.5A-10A
3,Resistor:0.2Ω-40Ω
4,Max brake torque:2-300 Oz-in
5, Step Angel Accuracy:+/-5%
6,Inductance Accuracy:+/-10%
7,Temperature Rise:+/-20% Advantage of 42mm Diameter Driving Hybrid Electric DC Stepper Motor Apply for 3D printer1,High torque
2,Low noise
3,Small size
4,Have the greatest torque motor stalling
5,Simple structure, easy to control cost
6,There are a wide speed rangeTechnical Specification of 42mm Diameter Driving Hybrid Electric DC Stepper Motor Apply for 3D printer| Model | single shaft | single shaft | single shaft | single shaft | single shaft | single shaft | single shaft | single shaft |
| 42H33M-0606A | 42H33M-0406A | 42H33M-0316A | 42H33M-1334A | 42H39M-1206A | 42H39M-0806A | 42H39M-0406A | 42H39M-1684A |
| double shaft | double shaft | double shaft | double shaft | double shaft | double shaft | double shaft | double shaft |
| 42H33M-0606B | 42H33M-0406B | 42H33M-0316B | 42H33M-1334B | 42H39M-1206B | 42H39M-0806B | 42H39M-0406B | 42H39M-1684B |
| voltage | V | 4 | 4 | 12 | 2.8 | 4 | 6 | 12 | 2.8 |
| current | A | 0.6 | 0.4 | 0.31 | 1.33 | 1.2 | 0.8 | 0.4 | 1.68 |
| Phrase Resistance | Ω | 4.2 | 10 | 38.5 | 2.1 | 3.3 | 7.5 | 30 | 1.65 |
| Phrase Inductance | mH | 4 | 9.5 | 33 | 4.2 | 4 | 7.5 | 30 | 4 |
| Holding Torque | Oz-in | 22 | 22 | 22 | 30 | 36 | 36 | 36 | 50 |
| g-cm | 1580 | 1580 | 1580 | 2200 | 2590 | 2590 | 2590 | 3300 |
| Lead Wire | No. | 6 | 6 | 6 | 4 | 6 | 6 | 6 | 4 |
| Rotor Inertia | g-cm2 | 35 | 35 | 35 | 35 | 54 | 54 | 54 | 54 |
| Motor Weight | Kg | 0.22 | 0.22 | 0.22 | 0.22 | 0.28 | 0.28 | 0.28 | 0.28 |
| Motor Length | mm | 33 | 33 | 33 | 33 | 39 | 39 | 39 | 39 |

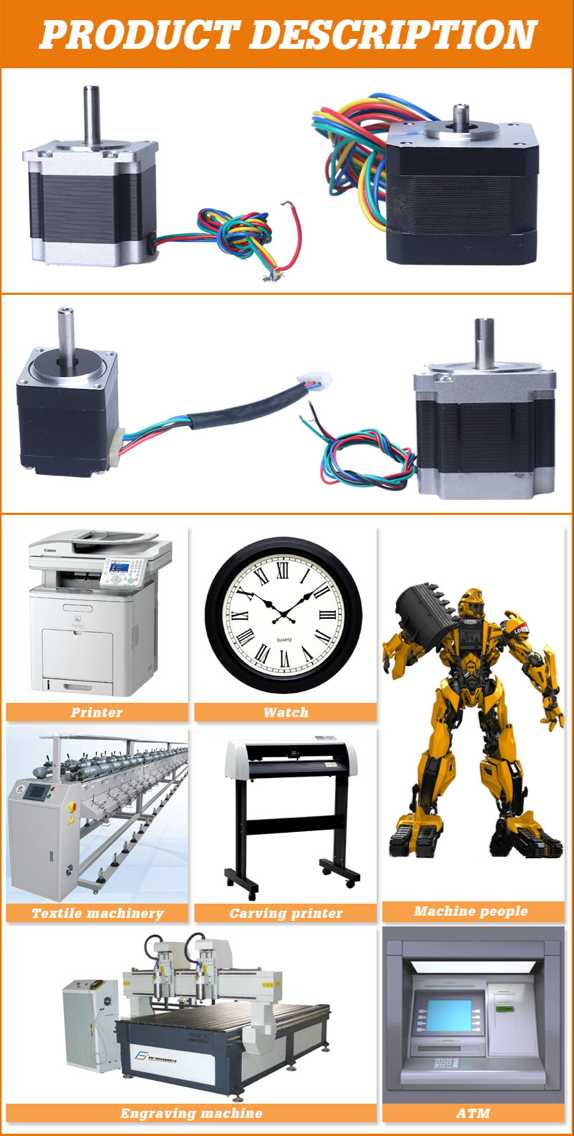

Application of 42mm Diameter Driving Hybrid Electric DC Stepper Motor Apply for 3D printer1,Office equipment
2,Household appliances(Robots )
3,Financial instruments(ATM machine)
4,Industrial machinery(textile machine,carving machine;)
Details structure of 42mm Diameter Driving Hybrid Electric DC Stepper Motor Apply for 3D printerA, General precision of the stepper motor step Angle of 3-5%, and do not accumulate
B,Stepper motor torque vary with the increase of rotational speed will be reduced.C, The step motor at low speed can operate properly, but above a certain speed won't be able to start, accompanied by squeaking noiseAbout sunlight:1,The company covers an area of 5000 square meters;
2,Modern workshops have advanced production lines and professional knowledge of assembly.
3,Excellent sales team and after-sales service
4,Professional technical team
5,Broad market:Europe(Germany....)America(America,Canada...)Asian( Korea, Japan...)
Packaging & Shipping1,Inner packing(Waterproof plastic bag packing)+Outer packing(Carton packing)
2,Export wooden box packaging for products.
3,Other package as you required
Contact Sunlight1,Your client satisfied on the right schedule and quality;
2,You can get good reputation from your market and obtain more orders;
3,Our professional service before and after sale;
4,The reasonable and competitive price;
5,Service is excellent.Any questions from you are welcome and will be replied in 24 hours.
6,Delivery on time Where is power supply, there is Sunlight ! Name cardChangzhou Sunlight Co., Ltd
Contact:Catherine Wang
Tel.: 86-519-83825998
Fax.: 86-519-83823899
Mobile: 86-15888322079
Website: www.czsunlight.com or www.sunlightmotor.com
www.czsunlightmotor.en.made-in-china.com
Sunlight is specialized in providing Axial fan, DC Motor, BLDC, parts and solutions. We insist in being best supplier with high reputation. Our head office Wenwei factory was found in 2000, which produce the parts of fan and motor in the began. The sub company Ronda manufactures aerator and was built in 2008. The sales number is around 6000M, and the area is about 5000 square meter, 200 employees, the products are sold to America, Europ, Asia and so on.
As a professional manufactuerer, we design and produce Axial fan, DC motor, brushless motor, stepper motor, plastic mould and spare parts, the products are applied to Car, bus, truck, home appliance, medical equipment, electric tools and so on. Quality is our life, technical is the basic, be honest and faithful to our partners. At the same time, we pay more attention on team work and improving the staff skills. Customer requirements and the innovation of technology as our guide, try to be the market leader of Motor business.
Sunlight provide the better power source for you, and at the same time, we offer the technical information and data for motor industries, suppliers and our partners.
Where there is power, there is sunlight.
