Drum Type Wood Chipper Machine / Wood Shredder Machine/ Wood Working Machine

Name: Drum Type Wood Chipper Machine / Wood Shredder Machine/ Wood Working Machine
Brand: china-manufacturer-directory.com
SKU: 688871162
Availability: InStock
Rating: 4.9 (68 reviews)

Supplier:	Zhengzhou Dingsheng Machine Manufacturing Co., Ltd.
Price:	US $ 820-4560/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	DS-216
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Feed Inlet Size:	230*500mm
Chip Size:	30mm
Host Motor Power:	55kw
Feed Roller Motor Power (Kw):	3-4kw
Oil Pump Motor Power (Kw):	1.51
Outside Dimension (Mm):	180019001210
Capacity:	7-8t/H
Delivery Detail:	7-15 Days After Getting Deposit
Weight:	4070kg
Max. Diameter Of Raw Material (Mm):	230mm
Type:	Flat Die Platen Wheel
Certification:	FDA
Voltage:	380V/240V
Color:	Customized

Product Description

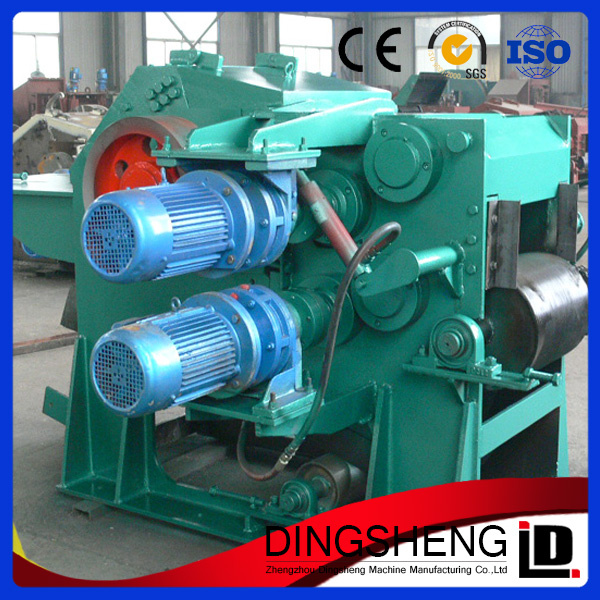

Drum type wood chipper

Product Description

Introduction of drum wood chipper machine :

The drum wood chipper is the special equipment for production of wood chips. Widely used in particleboard, fiberboard, preparation Section made panels, biomass power plants and other industrial production.

Raw material of drum wood chipper machine :

The raw material can be small diameter wood, timber harvesting, processing residues,such as branches, twigs, planks etc.

It can also be used for cutting non-wood materials,such as sugar cane, reed, bamboo, etc.

Advantage of drum wood chipper machine :

1.advanced and reliable technology

2.high output, high quality chips

3.applied for all kinds of wood

Specification of drum wood chipper machine :

Model	DS 216	DS218	DS2113
Feed inlet size (mm)	230*500	300*680	450*700
Knife roller speed (r/min)	590	650	500
Max. diameter of raw material (mm)	230	300	450
Wood chips size (mm)	30	30	38
Capacity ( t/h )	7-8	12-15	15-30
Host Motor power (kw)	55	110	200-250
Feed roller motor power (kw)	3-4	4-5	7.5*2
Oil pump motor power (kw)	1.5*1	1.5*1	3*1
Weight (kg)	4070	7000	11840
Outside dimension (mm)	180019001210	220021501500	367025172050

Aftersale service
Technogical instruction and install instruction

1 Are you still hesitating to choosing our products? now stop it and join us , seeing is believing, we will never let you down

2, We will try ou best to satisfy your need

3. Contact me

Zhengzhou Dingsheng Machine Manufacturing Co., Ltd. is a company(with our own factory) which is specialized in many products, as follows:

1. Oil Press/Oil Extraction/Oil Refinery

2. Feed Pellet Machine

3. Food Processing Machine

4. Fertilizer Making Machine

5. Woodwroking Machine

6. Agrictltural Machine

We have our own manufacturing factory for grain and oil processing equipment, as industry innovation and optimization, we are marketing our products into international market, and the export business is expanding rapidly, so we register a company which get the license of self-Imp&Exp rights, now our business not only relates to the grain and oil processing equipment, we are also developing in the field of agriculture machinery, construction and mining machinery.

Our 80% products for exportation, and the trade amount up to 500 million dollars annual.

Our manufacturing place covers almost 8000 square meters, 150-200 workers.

R&D people 8-10, to design and develop new products and meet the demand of market.

QC peoople 15-20, to control the product quality strictly, keep the product 100% qualified before leaving factory.
