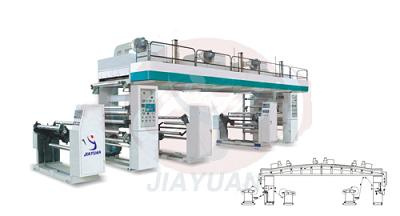

Dry Laminating Machine (JYD-A)

Dry Laminating Machine (JYD-A)
Supplier: Ruian City Jiayuan Machinery Co., Ltd.
Price: Negotiable
Min Order: 1
Quantity::
contact supplier

Product Specifications

Prod Model: JYD-A

Product Description

Application:
This machine is suitable for laminating pla stic-plastic, Paper-plastic, Paper-paper and aluminum foils and other laminated materials in the packing industry.

Performance and Characteristics:
1, The glue coating and laminating motor adopts imported double variable frequency synchronous speed regulating to change the past shatt driving strructure.
2, Smooth mate rial fee ding and synchronous linear speed prevent from stretching of the base material.
3, The bridg e-type &three-segment drying tunnel heating fasten temperature increasing and the drying system makes laminating speed even higher.
4, Gluing and laminating adopt pneumatic pressing rollers and impotred pneumatic components.
5, The two kinds of doctor blade type and pressing-type gluing ways can be chosen at will according to different processes.
6, Unwinding and Rewinding adopts powertension control.
7, The automatic temperature control system can controltemperature at the best state.
8, First unwinding adopt automatic EPC system.
9, Second unwinding adopt double feeding system.

Techinical parameters:
Model: JYD-A
Max. Laminating Width: 600mm-1000mm
Max. Diameter of Material Roll: Φ600mm
Layer Quantity of Lamination: Two layer
Laminating Speed: 5-90m/min
Max. Adjustable Temperature of Oven: 90º C
Max. Adjustable Temperature of Hot Cylinder: 80º C
Total Power: 40kw-65kw
Machine weight: 5000kg-7000kg
Machine Dimension: 6500× (1600-2000)× 3600mm
Jiayuan Machinery Co., Ltd. is a high-tech enterprise specializing in manufacturing hot melt equipment in China.

Our products range:
JYT Series Hot Melt Coating Machine
JYJ Series Hot Melt Extruding Coating Machine
JYP Series Hot Melt Adhesive Spraying Machine
Air Gun & Infusing Gum Tube

Hot melt equipment is widely used in the industries of paper carton package, shoe materials, cosmetics fill, furniture agglutination, bookbinding, dynamo agglutination, filter, auto inner-decoration, adhesive tape, garments materials, advertisement materials, medical dressing, label, nonwoven and electronic, etc. Our products are highly appraised by customers from South Africa, Mid-Asia, Southeast Asia, Vietnam, Thailand, Sri Lanka, Pakistan, India, Indonesia, etc.

Jiayuan Machinery Co., Ltd. is on the position of high standard management, technology and equipments which enable us to provide good quality to customers all over the world.
