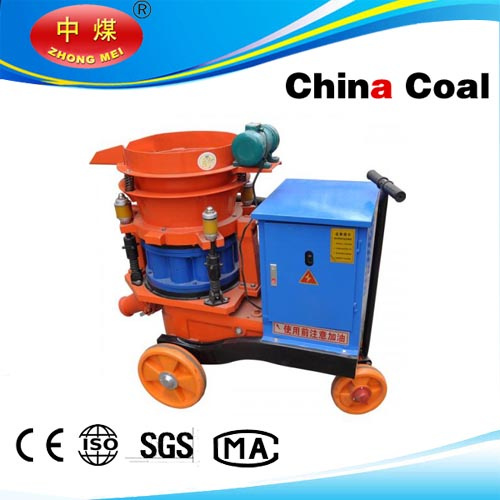

Dry Shotcrete Machine for Nconstruction Use

Name: Dry Shotcrete Machine for Nconstruction Use
Brand: china-manufacturer-directory.com
SKU: 699557112
Availability: InStock
Rating: 4.9 (148 reviews)

Supplier:	Shandong China Coal Industrial & Mining Supplies Group Co., Ltd.
Price:	US $ 100-10000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	PZ-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item:	Pz-3
Output:	3.5m3/H
Max. Convey Dist:	Horizontal:200m Vertical: 20m
Water Cement Ratio:	≤0.4
Max. Aggregate. Size:	20mm
Hose Inner Size:	38mm
Operating Air Pressure:	0.4~0.6MPa
Air Consumption:	3-4 M3/Min
Motor Power:	Y112m-6-3kw
Whole Weight:	260kgs
Type:	Concrete Mixer
Machining Process:	Hydraulic
Certification:	CE
Condition:	New

Product Description

Product Introduction
Cement shotcrete machine is widely used in building construction, mines, tunnels, culverts, subway, hydropower engineering, underground engineering and high marsh coal mine tunnel shotcrete construction operations. There are wet shotcrete machine, dry shotcrete machine, explosion-proof shotcrete machine, and spare parts.
Main Parameter

Item	PZ-3	PZ-5	PZ-7
Output	3.5m3/h	5m3/h	7m3/h
Max. convey dist	Horizontal:200m Vertical: 20m	Horizontal:200m Vertical: 20m	Horizontal:200m Vertical: 20m
Water cement ratio	≤0.4	≤0.4	≤0.4
Max. Aggregate. size	20mm	20mm	20mm
Hose inner size	38mm	51mm	64mm
Operating air pressure	0.4~0.6MPa	0.4~0.6MPa	0.4~0.6MPa
Air consumption	3-4 m3/min	7-8 m3/min	8-10 m3/min
Rotor diameter	350mm(150)	438mm	480mm
Motor power	Y112M-6-3KW	Y132-6-5.5(KW)	Y132-6-7.5KW
Voltages	380v or as your requirement	380v or as your requirement	380v or as your requirement
Overall dimension(mm)	1040550940	12807001280	15007001280
Whole weight	260kgs	600kgs	700kgs
wheel	Nylon wheel ;Rubber wheel ;skid wheel ;Rail wheel

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd. is Situated Near The Beautiful Lake Named Weishan in The Centre of Jining City, Which Is The Hometown of Confucius and Mencius. The Reserved Coal Resource Is More Than 20 Billion Tons and Is One of The Top Eight Coal Production Bases in China.

Shandong China Coal Industrial & Mining Supplies Group Co., Ltd. is a Big Joint-Stock Enterprise and Was Founded at The Beginning of 1980s, Which Is an Comprehensive Company Specially Doing The Business of The Mine Construction Materials, Mechanical and Electrical Equipments, Pneumatic Machineries and Accessories. We Have Six Economy and Trading Branches and One Machinery Manufacturing Branch.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the high quality at the reasonable price.
