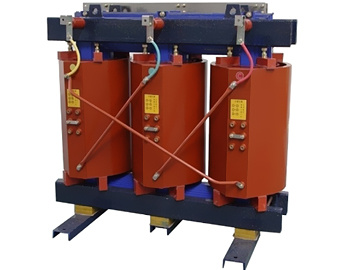

Dry-Type Distribution Transformer
Product Specifications
| Prod Model: |
SC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Dry-Type Distribution Transformer |
| Rated High Voltage: |
10 (10.5,11,6,6.3,6.6.)Kv |
| High Voltage Tapping Range: |
±5% or ±2*2.5% |
| Rated Low Voltage: |
0.4kv, 0.415kv, 0.433kv |
| Connection Symbol: |
Dyn11, Yyn0 |
| Insulation Level: |
Li75AC35/Li0AC3 |
| Application: |
Audio |
| Phase: |
Single |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Auto-transformer |
| Brand: |
Kewang |
Product Description
Iron Core Shunt Reactor Copper Wire with Metal Frame Harmonic Filter Reactor
Production Introduction and Feature
Ø Advanced and reasonable structure, small volume light weight, convenient
installation, maintenance-free and economical.
Ø Low noise and low loss, good heat dissipation performance, strong loading ability.
Ø Moisture proof performance, it can run in 95% relative humidity
Ø Low value of partial discharge, can guarantee long term safety operation in working voltage
Ø It can increase 40-50%of rated capacity shortly in forced air cooling
Ø Good insulation performance, high tolerance for lightning impulse level, and strong ability to bear sudden short circuit.
Ø It is high mechanical strength and good thermal stability. With rational combination of insulation material, it can obtain the same temperature expansion coefficient with copper conductor.
Ø The computer temperature controller automatic monitoring and protection provides reliable safeguard for transformer's safety operation.
Ø It is with strong ability of flame retardant and automatic flame out. It can install in load center.
Application
High Rise Building, Commercial center, City square, Hospital, School, Airport, Station,
Seaport, Underground, Power station, Oilfield, Chemical Industry, Tunnel, etc.
Note

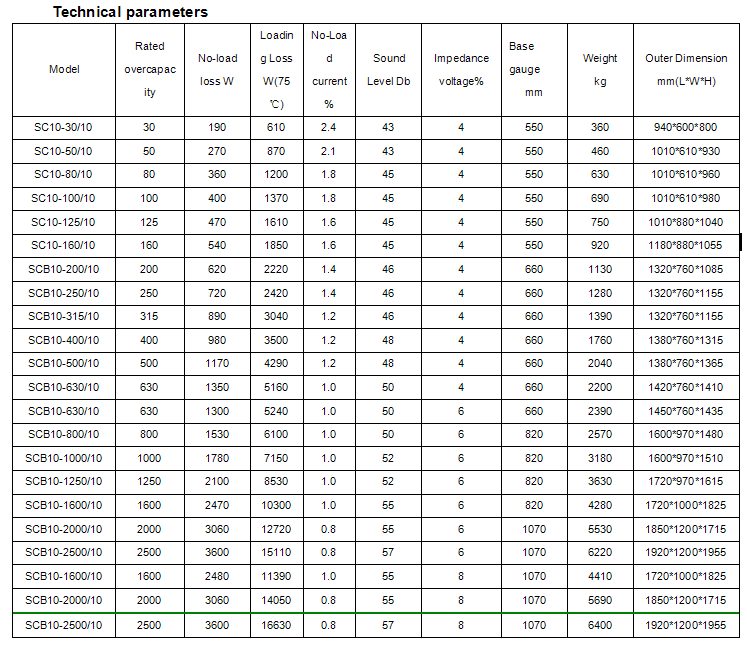

(1) Install size, it is symmetric with main visual and left visual for high voltage side or low voltage side. Per the table show, 550*550;660*660; 820*820; 1070*1070.
(2) The product outline size shown in the table is for reference only.
GB1094.11-2007(Instead of GB6450-1986)
GB/T10228-2008(Instead of GB/T10228-1997)
IEC60076-1993
BENEFITS
Manufactured in an ISO 9001: 2008 certified plant
High efficiency, high safety, high reliability
Output power tolerance of +/-3%
25-year limited warranty on power output, 5-year limited warranty on materials and workmanship
KEWANG'S ADVANTAGES
1) Excellent quality, competitive price, prompts delivery, on-time service and good reputation.
2) Fast sample delivery
3) Low minimum order
4) Fast shipment in 15~20 days on receipt of your payment.
5) We handle all the components needed for utility-connected systems, or for powering independent homes and remote industrial sites.
6) We offer knowledgeable tech support before and after the sale.
7) We manufacture the complete line of Voltage stabilizer ranging from 3kVA to 2500kVA with CE approval, offering the full capacity, Voltage stabilizer are as efficient as other competitors, but far cheaper-without skimping on quality.
Kewang was established in 1995 with headquarter in Songshan Lake National High-Tech Industrial Development Zone, Donguan city, Guangdong Province, China. It has a total construction of 50.000 square meters which consists of two subsidiaries, Dongguan Kewang Technology Co., Ltd, & Jiangxi Kewang Technology Co., Ltd. Dongguan Kewang is the Group's high class product development, manufacturing and sales base. Jiangxi Kewang is the Group's Conventional products R & D, manufacturing base, with an area of 130, 000 square meters.
Kewang Group is a high-tech enterprise norminated by Guangdong Government. It's engaged in new energy and power supply whose business covers power devices for Wind Energy, Solar Energy, and Natural Gas. It's dedicated to R&D, manufacturing, sales & engneering of high/ low voltage transmission, distribution devices & related power devices. Moreover, it provides integrated solutions for enterprises power suply, data center, and distributed new energy. Kewang has been serving for royal customers over 40 countries, with recognized good quality & professional service.
As a leading power supply company, Kewang Group had taken the lead to be qualified with the ISO9001 quality system certification & ISO14001 environment system certification, and the CCC China mandatory certification. Its products are qualified with European CE certification and American UL certification. We had taken 11 projects norminated by the local government: 4 of which had won government's scientific prizes, and over 30 patents had been achieved. We keep consistent cooperation with South China University of Technology and Wuhan University. With the introduction of high class technical talents, we integrate various resources for R&D, quality& management improvement-- these cooperation enable us to set up strong advantages in techniques, talents & brand promotion.
Kewang group upholds the principle of "Technology Oriented & Sustainable Operation". We keep introduction of new techniques for innovated products, keep on improving management & optimizing product quality. We are dedicated to prvode global customers power solutions which are reliaible, energy-saving & environment-friendly. We create win-win value for customers, and return value to the piblic, which's our original motivation as Kewang's "beginner's mind".
