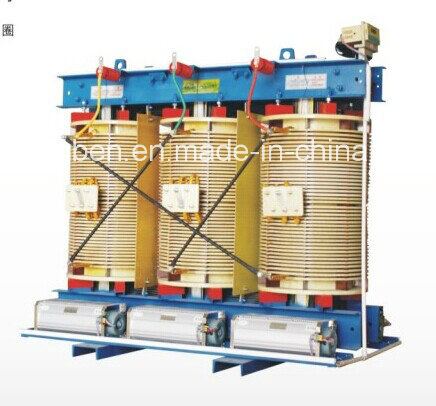

Dry Type Distribution Transformer

Product Specifications

Prod Model:	SCB10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Capacity:	100-2500
Phase:	Three
Application:	Power
Coil:	Core-type Transformer
Winding Type:	Two-winding Transformer
Cooling Method:	Dry-type Transformer
Brand:	Yingben

Product Description

H Level Insulated SGB SeriesThree Phase Dry Type Transformer Brief Description: Capacity 100kva-2500kva Rated Voltage(HV):  6kv-12kv,12kv-35kv Rated Voltage(LV): 0.4kv Connection Method : Yyn0, Dyn11 Insulation level H-Level(180C) Material : Toroidal Coil,  100%Copper or Aluminum,  Steel Plated paper Usage:Substation,Subway,Buildings,Airports, Stations,Hospitals, Power Plants, Shopping Centers Advantage of ours:Good qulity With 120Cheavy load &IP23 ANY QUESTION PLS FEEL FREE CONTACT US!! WE WILL DO OUR BEST FOR YOU!! www.yingben.com http://yingben.en.made-in-china.com rated capacity ( KVA ) Rated voltage( KV) Join groups label no-load loss (W) load loss (W) no-load current (%) impedance voltage (%) Overall Dimensions a×b×h gauge crosswise×lengthways all up (kg) high pressure low pressure 100 400 1690 1.7 4 1280*610*995 550*550 630 160 540 2280 1.5 1360*1000*1150 660*940 800 200 620 2710 1.3 1390*1000*1170 660*940 970 250 720 2960 1.3 1430*1000*1190 660*940 1140 315 800 3730 1.1 1430*1000*1275 660*940 1310 400 980 4280 1.1 1480*1000*1300 660*940 1610 500 11 10.5 10 6.3 6 Yyno or Dyn11 1160 5230 1.1 1560*1000*1385 820*1040 1850 630 1300 6400 0.9 6 1710*1100*1345 820*1040 2060 800 1520 7460 0.9 1735*1100*1485 820*1040 2410 1000 0.4 1770 8760 0.9 1830*1100*1540 820*1040 2910 1250 2090 10370 0.9 1870*1100*1715 820*1040 3330 1600 2450 12580 0.9 1990*1100*1850 820*1040 4070 2000 3050 15560 0.7 2100*1250*1915 1070*1070 4780 2500 3600 18450 0.7 2210*1400*1980 1070*1070 5340
