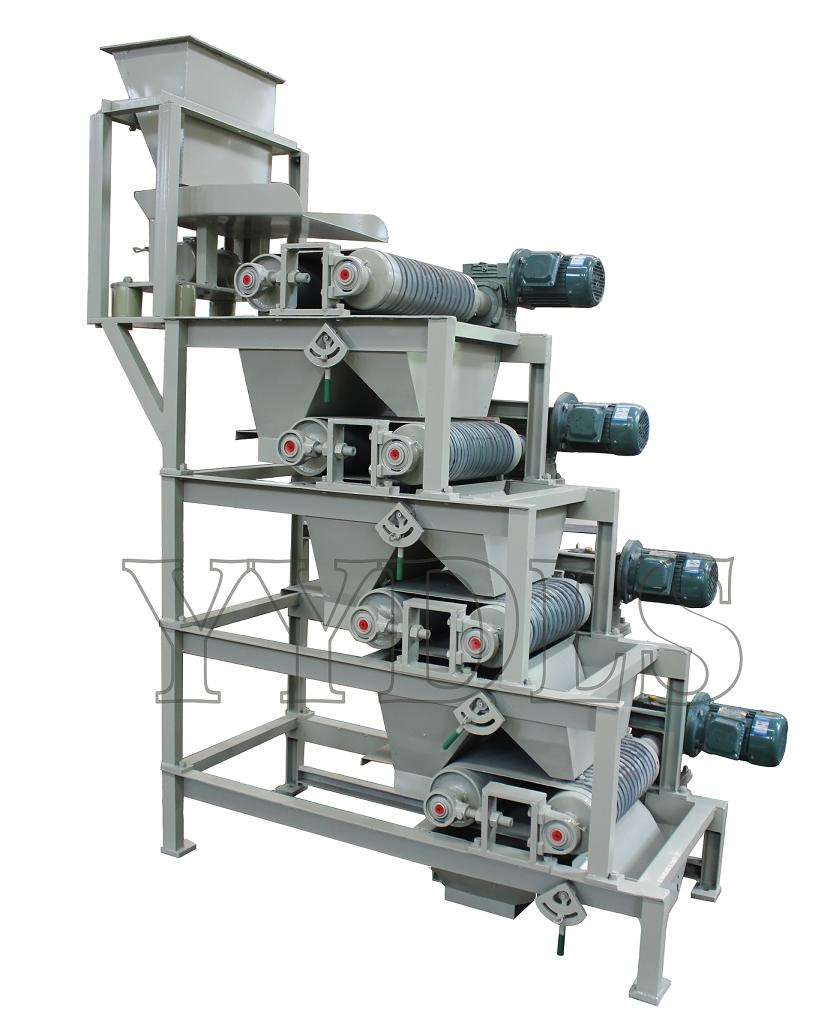

Series CR Magnetic Separator is roller permanent magnetic separator for dry powders of minerals. The rollers are made of high energy rare earth NdFeB, which is special designed by YYDLS (Yueyang Dalishen), for better beneficiation of Fe minerals such as hematite, magnetite, and non metallic minerals purification, such as feldspar, kaolin, clay, etc.
Application (magnetic separation, magnetic concentration, magnetic beneficiation, magnetic selecting, magnetic processing):
1. Discarding tailings and purifying of weak magnetic coarse minerals, such as hematite, ilmenite, and manganese, etc.
2. Processing of non-metallic minerals, such as andalusite, sillimanite, rutile, kyanite, garnet, quartz, frigidite, feldspar, zircon, adamantite and diamond, etc.
3. Removal of ferrous impurities from abrasives catalysis and other powders.
Feature and Benefits
1. Made of new type of high magnetic rare earth (above 45 MGOe)with high intensity(1.3T~1.5T);
2. High gradient (104) and high magnetization;
3. Maximum particle size is 50mm;
4. Simple and useful mechanical structure;
5. Various vibratory feeder;
6. Separation belt to protect the roll;
7. Up to four rollers for better concentration and higher recovery.
Note: Tailored magnetic separators and free sample beneficiation test are available.
|
Technical Date of Magnetic Separator CR |
|
Model |
CR150x500 |
CR150x1000 |
CR250x500 |
CR250x1000 |
CR250x1500 |
|
Magnetic Field Intensity (Gs) |
12000~15000 |
12000~15000 |
12000~15000 |
12000~15000 |
12000~15000 |
|
Motor Power (kw) |
2.2 |
2.2 |
2.2 |
2.2 |
3 |
|
Diameter of Roller (mm) |
150 |
150 |
250 |
250 |
250 |
|
Length of Roller (mm) |
500 |
1000 |
500 |
1000 |
1500 |
|
Feed Power (kw) |
0.12 |
0.12 |
0.12 |
0.12 |
0.12 |
|
Feed Partical Size (mm) |
0.5~5 |
0.5~5 |
0.5~5 |
0.5~5 |
0.5~5 |
|
Feed Capacity (t/h) |
1.5~3 |
4~5 |
2~4 |
5~6 |
6.5~7.5 |
|
Weight (kg) |
700 |
800 |
900 |
1200 |
1400 |
Yueyang Dalishen Electromagnetic Machinery Co., Ltd. (YYDLS) has decades of experience on magnetic equipments production. It is one of the leading manufacturers for magnetic machines in China.
Our headquarters in Yueyang City, the electromagnet base of China, produce wet high intensity electromagnetic separators (WHIMS), high gradient magnetic separator (HGMS), rare earth drum/roll magnetic separator (REDMS/RERMS), magnetic lifting equipments, etc.
YYDLS has a powerful R&D team and comprehensive lab, providing updated, tailored products, on-site training and guidance for installation, commissioning and operation, considerate after-sale service and beneficiation test for various minerals.
YYDLS has established cooperation with Institute of High Energy Physics of Chinese Academy of Science, Central South University, Changsha Research Institute of Mining and Metallurgy Co., Ltd., etc. For more information, please contact our headquarters or local offices in the USA, Italy, India, South Africa, etc.
