Product Specifications
| Prod Model: |
Dry-type |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Application: |
Lighting |
| Brand: |
Rzh |
Product Description

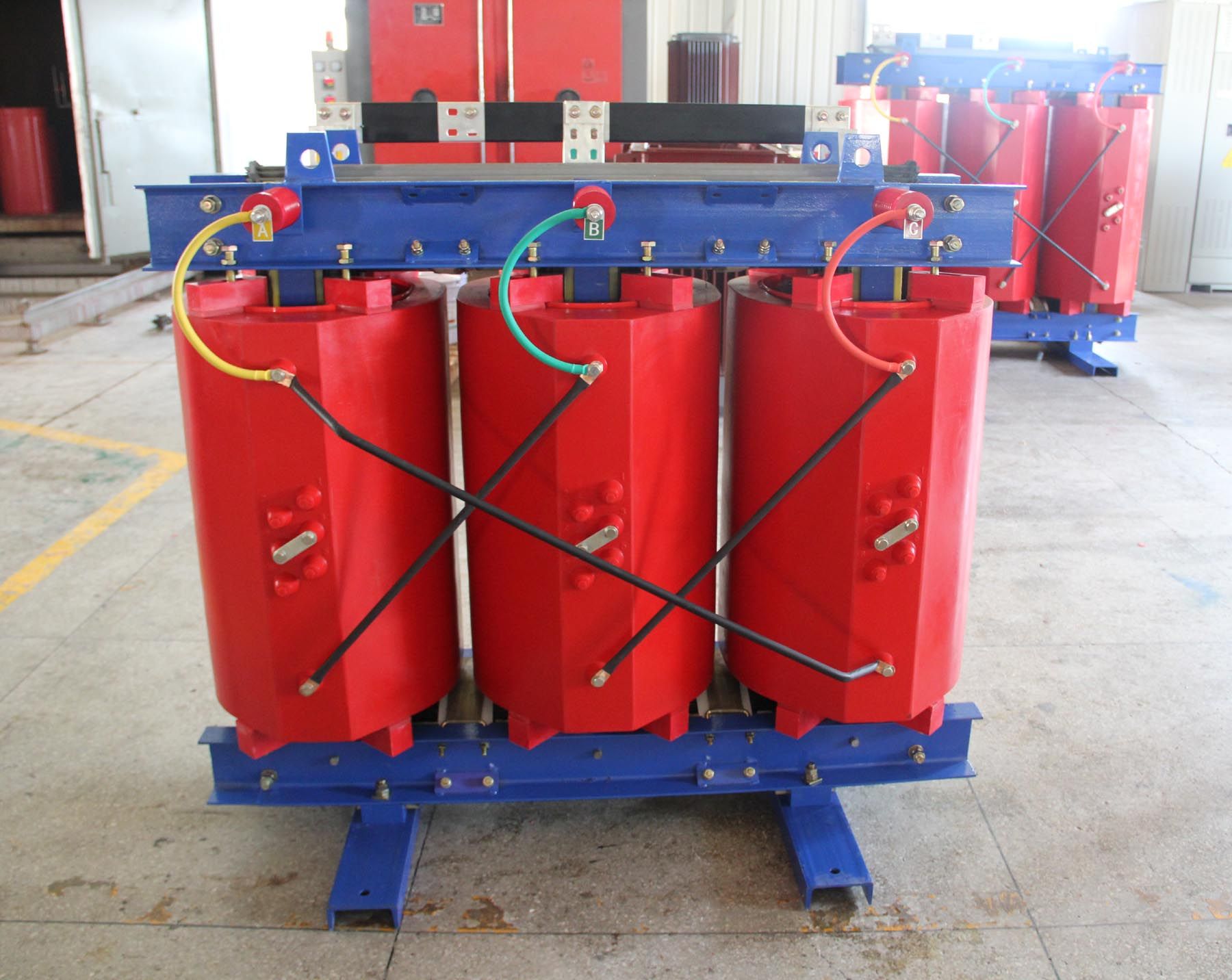

SC(B)10 Series Resin Insulation Dry-type Transformer is made of high-quality silicon steel sheets, cast epoxy resin, and with intelligentized temperature control system, which will alarm and trip when it fault or overheat. So it is advantageous in safety, low loss, low noise, fire-proof, low partial discharge and high anti short-circuit capacity. Also it can be connected with computer, to make it centralized management and supervise.
Due to above features, SC(B) Series Resin Insulation Dry-type Transformer widely apply to power supply and distribution system, such as hotel, airport, tall building, commercial center, hospital, resident area, subway, power industrial, ship , offshore drilling platform and so on.
The technical parameter as follows:
1. Rated capacity: 10~4000kVA
2. Rated HV: 6kV to 11 kV
3. Rated LV: 0.4kv
4. Frequency: 50Hz or 60Hz
5. Cooling methods: ONAF
6. Tapping Range: ±5% ±2x2.5%
7. Phase: Single Phase or Three Phases
8. Connection Symbol: Yyn0 or Dyn11
9. Insulation level: LI75AC35/LI 0AC5
10. Insulation grade: F grade
|
RATED POWER (KVA) |
VOLTAGE(KV) |
HIGH VOLTAGE TAPPING RANGE |
CONNECTION SYMBOL |
LOSS(KW) |
NO-LOAD CURRENT(%) |
IMPEDENCE VOLTAGE(%) |
WEIGHT(KG) |
INSULATION GRADE |
|
H.V. |
L.V. |
NO-LOAD |
LOAD(120ºC) |
|
10 |
11 10.5 10 6.3 6 |
0.4 |
±5% OR ±2*2.5% |
Yyn0 OR Dyn11 |
0.135 |
0.305 |
4.0 |
4.0 |
135 |
F |
|
20 |
0.170 |
0.595 |
3.5 |
180 |
|
30 |
0.190 |
0.710 |
2.4 |
330 |
|
50 |
0.270 |
1.000 |
2.4 |
380 |
|
80 |
0.370 |
1.380 |
1.8 |
510 |
|
100 |
0.400 |
1.570 |
1.8 |
590 |
|
125 |
0.470 |
1.850 |
1.6 |
650 |
|
160 |
0.540 |
2.130 |
1.5 |
780 |
|
200 |
0.620 |
2.530 |
1.4 |
930 |
|
250 |
0.720 |
2.760 |
1.4 |
1040 |
|
315 |
0.880 |
3.470 |
1.2 |
1180 |
|
400 |
0.980 |
3.990 |
1.2 |
1450 |
|
500 |
1.160 |
4.880 |
1.2 |
1630 |
|
630 |
1.340 |
5.880 |
1.0 |
1900 |
|
630 |
1.300 |
5.960 |
1.0 |
6.0 |
1900 |
|
800 |
1.520 |
6.960 |
1.0 |
2290 |
|
1000 |
1.770 |
8.130 |
1.0 |
2700 |
|
1250 |
2.090 |
9.690 |
1.0 |
3130 |
|
1600 |
2.450 |
11.730 |
1.0 |
3740 |
|
2000 |
3.050 |
14.450 |
0.8 |
4150 |
|
2500 |
3.600 |
17.170 |
0.8 |
4810 |
|
1600 |
2.450 |
12.960 |
1.0 |
8.0 |
3740 |
|
2000 |
3.050 |
15.960 |
0.8 |
4150 |
|
2500 |
3.600 |
18.890 |
0.8 |
4810 |
|
3150 |
5.140 |
22.500 |
0.8 |
5800 |
|
4000 |
5.980 |
27.000 |
0.8 |
7100 |
