Bean dregs dryer
1. Brief introduction:
Bean dregs (soybean curb residue) is a kind of bound water, large oil-based materials, water is not easily to remove
We developed a complete equipment of dehydration drying equipment for beandregs (soybean curb residue)
Beandregs was dehydrated through high pressure
Most of the water is lost in this way just in a minute
Then the beandregs enter into the dryer
Beandregs and the dry fresh hot air moving in the opposite direction under the effect of a special scraping wings (pusher plate) and dry-hot wind
This process is a little long, the temperature is relatively low and the material is running slowly
The dryer is a downstream drying and the outlet temperature is only 40° C
The whole drying process can fully use the thermal energy and the beandregs even heated so the toasted beandregs can have a good color, no burning material and low consumption
2. Mechanical structure and working principle:

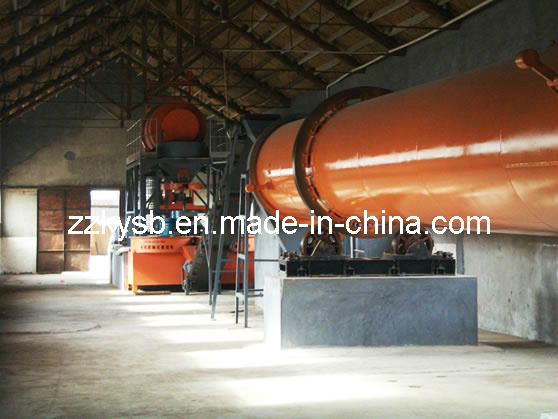

Bean dregs dryer consists of the heat source, feeding machine, rotary drum, discharging machine, induced draft fan, discharge devices, and distribution cabinet
The wet material is put into the dryer after dehydration
The material can disperse evenly and contact fully with the hot air in the dryer through the stirring of the plate which is in the roller
Thus quicken the speed of drying, heat transferring and mass transferring
In the process of drying, the material can be sent out by the star unloading valve which is in the other end of the dryer under the action of the gradient plate and the hot mass
The technological and all equipments' parameter, structure of the production line are being careful analysis and verified by the experiment of drying the bean dregs, we fully take into account the large moisture content, high protein levels, big viscous and adopted a series of unique original technology to solve these problem to ensure a perfect drying results
3. Main features:
High degree of mechanization, large production capacity, and continuous option
Simple and excellent structure, material running smoothly through the cylinder, operating convenience
Less mechanical failure, low maintain charge, and power consumption
Uniformity of drying product is good
Drying production line using a special scattered installations to ensure the dryer's drying effect
Use innovative and unique sealing device, and sophisticated keep-warm system
Reduce the coal consumption of the system effectively
Whole system holds a good performance of sealing
With complete dust removal equipment
No dust spilling
With good operating environment
Whole drying system uses electric centralized control, auto-control of temperature for hot air, high automation and convenient operation
Can join in crushing, mixing, granulating, packing, and other follow-up steps after drying to produce the finished product of beandregs particle feed
|
type |
TD800 |
TD1000 |
TD1500 |
TD2200 |
|
Quantity delivered of feed screw |
≥ 800kg/h |
≥ 1200kg/h |
≥ 1800kg/h |
≥ 3000kg/h |
|
Evaporation capacity of moisture |
350kg/h |
650kg/h |
900kg/h |
1300kg/h |
|
Rotate speed and power of the rotary drum |
3-4rmp, 4kw |
3-4rmp, 5.5kw |
3-4rmp, 10kw |
3-4rmp, 15.5kw |
|
Rotate speed and power of the crush axis |
150-250rmp, 3kw |
150-250rmp, 4kw |
150-250rmp, 4kw |
150-250rmp, 5.5kw |
|
Power of induced draft fan |
7.5kw |
11kw |
15kw |
18.5kw |
|
Coal consumption(standard coal) |
≤ 70kg/h |
≤ 110kg/h |
≤ 170kg/h |
≤ 220kg/h |
|
Power consumption |
≤ 10degree/H |
≤ 15degree/H |
≤ 20degree/H |
≤ 30degree/H |
|
area |
≥ 80m2 |
≥ 100m2 |
≥ 120m2 |
≥ 150m2 |
|
Height of the plant |
≥ 3.8m |
≥ 4.2m |
5.5m |
≥ 5.5m |
|
Weight of the dryer |
5.5T |
8.5T |
15.5T |
23.5T |
