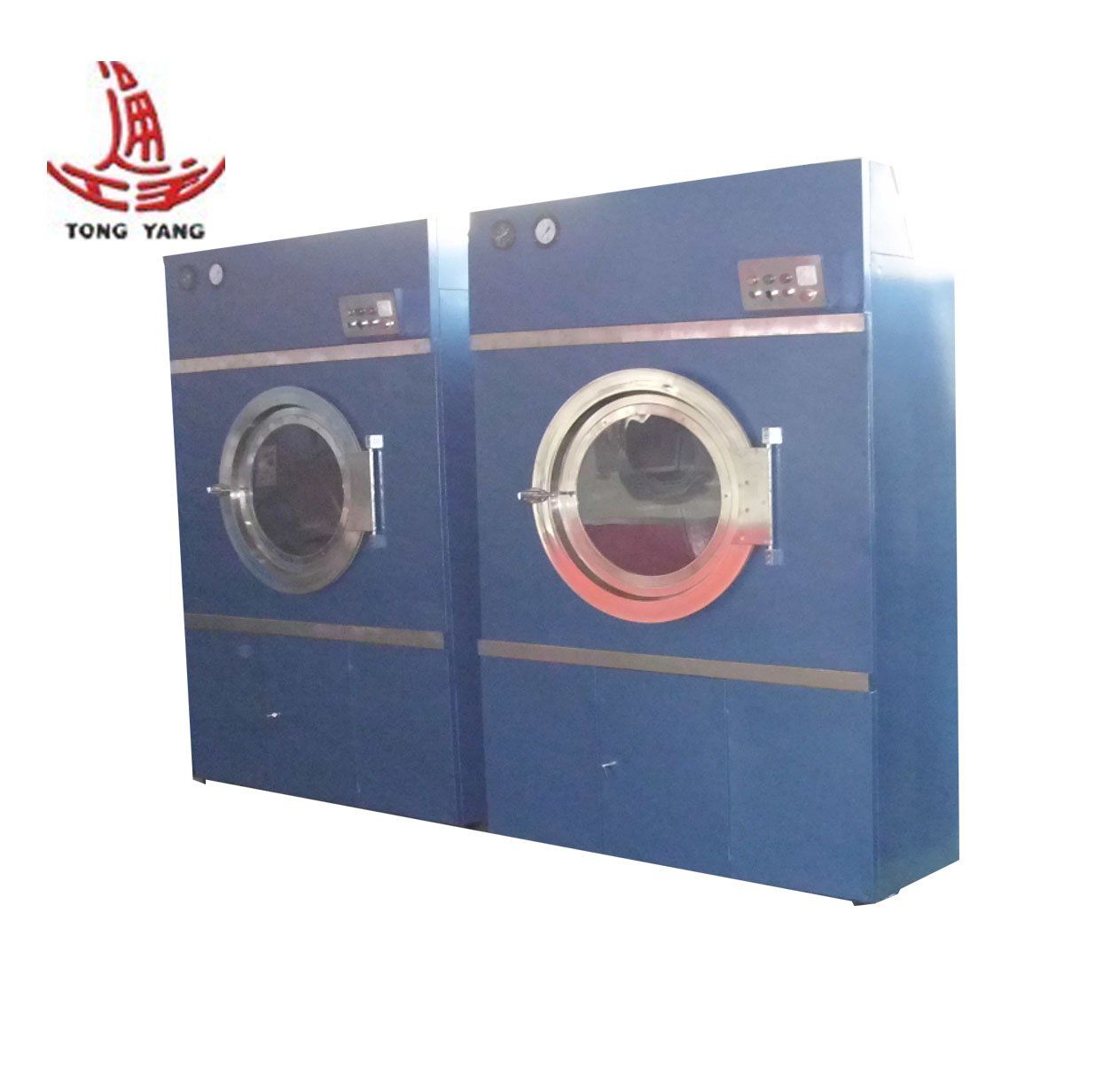

Drying Machine for Textile/Gas Heated Tumble Dryer (SWA801)

Name: Drying Machine for Textile/Gas Heated Tumble Dryer (SWA801)
Brand: china-manufacturer-directory.com
SKU: 699621065
Availability: InStock
Rating: 4.6 (118 reviews)

Supplier:	Taizhou Tongyang Washing Machinery Co., Ltd.
Price:	US $ 1500/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	SWA801
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
10kg To 150kg:	Easy to Operate
Free Standing:	CE Quality
Drying Medium:	Inactive Gas
Appearance Of Dried Sample:	Strap
Type Of Flow:	Cross Flow
Operational Method:	Continuous
Structure:	Rotary Type Drier
Operation Pressure:	Vacuum Dryer
Movement Way:	Cylinder Rotary Drying
Heating Mode:	Gas, Electric or Steam

Product Description

1, Drum in stainless steel, prevent the pollution of corrosion to fabric.

2, The heat-exchanger looks like wings, high thermal efficiency, long service life.

3, Large plush collection network, collect fluff easily and quickly.

4, Large door, easy loading and unloading, opens 180;

5, Optimal design of cooling fan, with the best heat dissipation, wind speed.

6, Fully automatic computer control the temperature, temperature control devices, over-temperature protection device.

7, Heating: Electrical, steam, gas.

8, Easy accessibility to the vital parts, easy service, quick replacement of the belt.

9. Its capacity is from 10kg to 150kg.

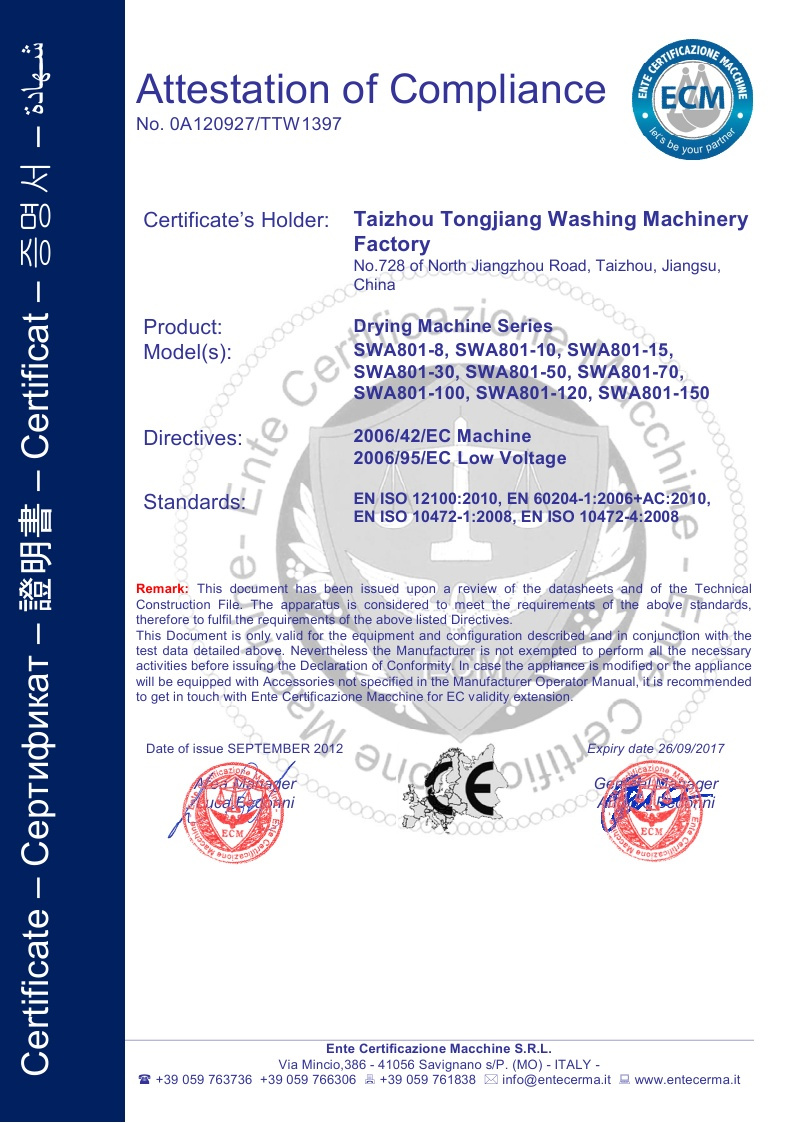

10. CE and ISO9001 certificates.

Type	SWA801-10	SWA801-15	SWA801-30	SWA801-50	SWA801-70	SWA801-100	SWA801-120	SWA801-150
Max. capacity(Kg)	10	15	30	50	70	100	120	150
Drum dimensions(mm)	Φ 640× 560	Φ 760× 560	Φ 950× 860	Φ 1160× 1000	Φ 1260× 1000	Φ 1320× 1100	Φ 1500× 1080	Φ 1600× 1160
Drum speed(r/min)	46	35	32	26	26	30	28	27
Steam pressure(Mpa)	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
Motor Power (Kw)	0.55	0.75	1.1	1.5	1.5	2.2	2.2	3
Fan Power (Kw)	0.55	0.75	1.1	1.5	1.5	1.5*2	1.5*2	2.2*2
Overall dimension(mm)	700× 1100× 1340	920× 1200× 1650	1100× 1450× 1900	1320× 1700× 2200	1400× 1700× 2300	1500× 1800× 2360	1620× 1800× 2360	1720× 1900× 2600
Weight (Kg)	250	313	396	512	600	672	875	966

Taizhou Tongyang Washing Machinery Co., Ltd. is specializing in producing industrial and commercial washing machines with various specifications available.

Our main products include fully-automatic washers and extractors, carpet washing machines, extracting machines, drying machines and ironing machines. These products are new in type and low in power consumption. They are widely used in various trades, such as textile, printing, dyeing, silk, garments and chemical industries, hotels, restaurants and hospitals.

Recently, our factory successfully developed a chlorine washing machine and a foam washing machine which filled up domestic blank. They can replace the ones we had always imported from the USA.

Our products have a ready market not only in China but also in Southeast Asia. We ensure superb quality and reasonable price. We take full responsibility of repair, replacement or refund if serious quality problems happen. All our products enjoy life-long service and all the spare parts for them are available.

You are welcome to visit our factory and order our products.
