Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
as You Required |
| Type: |
Drying Machine |
| Warranty: |
Quality Certification |
| Installation: |
Under Engineer's Guide and Trained Workders |
| After Sale Service: |
for Whole Using Life |
| Structure: |
Rotary Type Drier |
| Movement Way: |
Combined |
| Heating Mode: |
Transmission |
| Operational Method: |
Continuous |
| Operation Pressure: |
Atmospheric Dryer |
Product Description

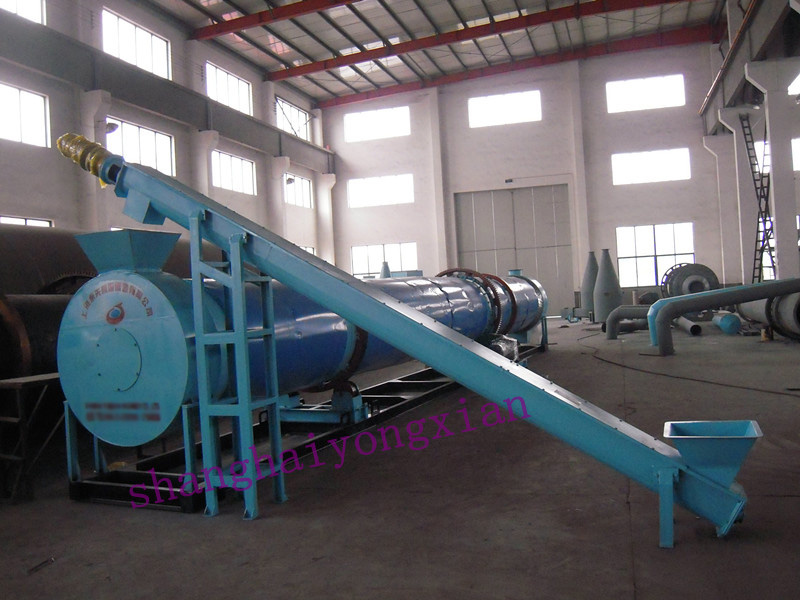

High Humidity Material Dryer
1. High Humidity materials dryer is a drying equipment with low fuel consumption and high efficiency. The machinery can made the humidity below 85% content material dry to a final moisture content below 13%. Suitable for dealing with high humidity waste, byproduct and diverse chemical raw materials such as chicken dung, alcohol planters, wine slot, decoction dregs, fructose residue, Sauce vinegar residue, sugar beet residue, Slaughtered animal body contents, slime, bentonite, etc. In animal husbandry, food brewing, sugar-making and pharmaceutical industries. It is a ideal equipment for resource exploiture and environmental protection.
2. Features of High Humidity materials dryer:
The equipment used downstream drying technics, particular usable for fast drying Humidity materials which should be Save Nutrition, such as the handling of fresh chicken dung can achieve a drying, sterilization, deodorant and preservation of nutritional purposes. The machinery are equipped with high-speed rotating broken devices in the roller, and increased the contact area between material and drying medium, the internal certain unique equipment design, difficult bonding materials in the tube wall panels and parade, complete machine have insulation function, and good sealing function, the thermal efficiency considerably higher than the general drum dryer.
3. The machinery structure is compact, so it is easy to install and debug, and small footprint. Drum and broken devices all use the stepless speed regulating, so as to adapt to the different requirements of the drying material. The machinery can be used with different heat sources which use different fuels (such as coal, heavy oil, natural gas, etc. )
4. Facilities and work principle of High Humidity materials dryer:
The complete sets of equipment is mainly composed by the broken drum dryer, burning furnace, feed spiral, a spiral expected, pipeline, ESP, Guan wind, Fan, control cabinet components.
5. Principle of High Humidity materials dryer:
High Humidity materials are putted from the feed screw directly into the dryer drum crusher, was copied on the drum wall panels repeatedly, after scattered through the broken device, the raw material and was full contacted with high-temperature medium to complete heat and mass transfer process. Due to the effect of the roller's inclination and citation am the wind, the material moves slowly from the feed end, then discharged from the spiral after drying, the exhaust gas dusted through dust catcher, then discharged to the atmosphere.
Technical Parameter of High Humidity materials dryer:
|
type |
GZS800 |
GZS1000 |
GZS1500 |
GZS2200 |
|
data |
Φ 800× 12m |
Φ 1000× 12m |
Φ 1500× 12m |
Φ 2.2× 12m |
|
conveying capacity |
≥ 500kg/h |
≥ 1000kg/h |
≥ 1500kg/h |
≥ 2000kg/h |
|
evaporation capacity |
275kg/h |
550kg/h |
800kg/h |
1100kg/h |
|
Rotation speed& power |
3-4rmp, 4kw |
3-4rmp, 5.5kw |
3-4rmp, 10kw |
3-4rmp, 15.5kw |
|
crushing spindles peed& power |
150-250rmp, 3kw |
150-250rmp, 4kw |
150-250rmp, 4kw |
150-250rmp, 5.5kw |
|
draught fan power |
7.5kw |
11kw |
15kw |
18.5kw |
|
coal consumption |
≤ 70kg/h |
≤ 110kg/h |
≤ 170kg/h |
≤ 220kg/h |
|
electricity consumption |
≤ 10kw/h |
≤ 15kw/h |
≤ 20kw/h |
≤ 30kw/h |
|
floor area |
≥ 80m2 |
≥ 100m2 |
≥ 120m2 |
≥ 150m2 |
|
factory height |
≥ 3.8m |
≥ 4.2m |
5.5m |
≥ 5.5m |
|
dryer weight |
4T |
6T |
12T |
19T |
