Product Specifications
Product Description
Description

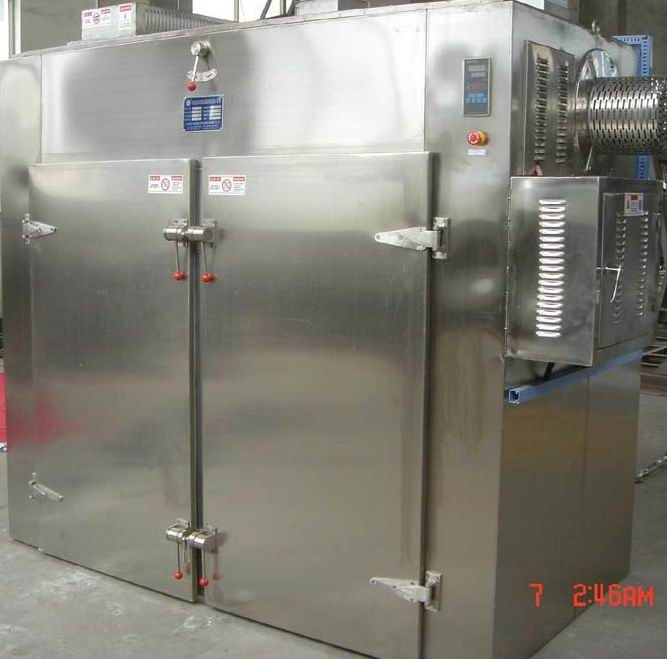

Drying Oven - drying machine(W/CE mark)
Hot air circle oven is equipped with low noise axial flow fan and automatic temperat ure control system. The circle system is fully sealed. It makes the hot efficiency increased from 3-7% of traditional oven to 35-45%. The maximum hot efficiency can be 70%. The successful design of CT-C series hot air circle oven makes the hot air circle oven catch up the advanced level both at home and abroad. Drying machine drying oven
Features
Most of hot air is circled inside the oven. The hot efficiency is high;
The energy source can be saved;
It uses enhanced ventilation and equips with adjustable air distributing plate inside the oven, Raw material can be dried evenly;
The heat source can be steam, hot water, electricity or far infrared. The machine has low noise and stable operation. The temperature can be controlled automatically. The installation and maintenance are very convenient;
The applied fields are wide and can be suitable for all kinds of raw materials. It is a comprehensive drier.
Type for the industry standard
| Type and specification
| Drying capacity for each time (Kg)
| power (KW)
| Steam to be consumed (Kg/h)
| Heat radiation area(m 2 )
| Air capacity(m 3 /h)
| Temperature between the top and the bottom ( ºC)
| Baking plate (PC)
| Overall dimension (LxWxH) mm
| Baking cart to be used
|
RXH-14-B
| CT-I
| 100
| 1.1
| 20
| 20
| 3400
| ±2
| 48
| 2430×1200×2375
| 2
|
RXH-27-B
| CT-II
| 200
| 1.1
| 40
| 40
| 5200
| ±2
| 96
| 2430×2200×2433
| 4
|
RXH-41-B
| CT-III
| 300
| 2.2
| 60
| 80
| 9800
| ±2
| 144
| 3430×2200×2620
| 6
|
RXH-54-B
| CT-IV
| 400
| 2.2
| 80
| 100
| 9800
| ±2
| 192
| 4380×2200×2620
| 8
|
RXH-5-C
| CT-C-0
| 25
| 0.45
| 5
| 5
| 3400
| ±2
| 16
| 1550×1000×2044
| 0
|
RXH-14-C
| CT-C-IA
| 50
| 0.45
| 10
| 10
| 3450
| ±2
| 24
| 1400×1200×2000
| 1
|
RXH-14-C
| CT-C-I
| 100
| 0.45
| 18
| 20
| 3450
| ±2
| 48
| 2300×1200×2000
| 2
|
RXH-27-C
| CT-C-II
| 200
| 0.9
| 36
| 40
| 6900
| ±2
| 96
| 2300×2200×2000
| 4
|
RXH-41-C
| CT-C-III
| 300
| 1.35
| 54
| 80
| 10350
| ±2
| 144
| 2300×2200×2000
| 6
|
RXH-54-C
| CT-C-IV
| 400
| 1.8
| 72
| 100
| 13800
| ±2
| 192
| 4460×2200×2290
| 8
|
RXH-18-C
| CT-C-IB
| 120
| 0.9
| 20
| 25
| 6900
| ±1
| 48
| 1460×2160×2250
| 2
|
RXH-41-C
| CT-C-IS
| Special baking bottle
| 2.2
| 60
| 100
| 6900
| ±2
|
| 1140×6160×3240
| 6
|
RXH-25-A
| High efficiency and high temperature far infrared bacterium reducing baking oven
| 1200×1000×1600
| 4
|
Changzhou Hengcheng First Drying Equipment Co., Ltd. Specializes in producing drying equipment. Our factory covers an area of 20, 000 square meters, including 8, 000 square meters of building area. We have over 10 million RMB of fixed assets and hold over 100 sets of special processing equipment. We can produce 600 sets of equipment for drying, granulating and mixing annually. Our products have 20 kinds with 100 specifications and varieties, which are widely used in pharmaceutical, chemical, foodstuff, zymin, building materials, electron, feed industry, as well as the production of agricultural and sideline. Our factory has special advantages in design for customers.
Our products sell well all over the country and are also exported to the USA, Korea and Southeast Asia. Our factory has assembled and trained a team with rich experience in production and technical service, and has cooperated with relevant universities and colleges in technology for a long time. We are also improving, upgrading and developing products constantly, to ensure advanced, high-quality products and good service available to our customers.
Our goal is to build world first-class drying equipment, and we will try our best to do everything for our customer's satisfaction.
We welcome you to visit our factory!
