Digital Temperature and Humidity Controller Waterproof:
Product Description
Unique 1-Wire interface requires only one port pin for communication
. Multidrop capability simplifies distributedtemperature sensing applications
. Requires no external components
. Can be powered from data line. Power supplyrange is 3.0V to 5.5V
. Zero standby power required
. Measures temperatures from -55°C to+125°C. Fahrenheit equivalent is -67°F to+257°F
. ±0.5°C accuracy from -10°C to +85°C
. Thermometer resolution is programmable from 9 to 12 bits
. Converts 12-bit temperature to digital word in 750 ms (max.)
.User-definable, nonvolatile temperature alarm settings DS18B20Z
.Alarm search command identifies and 8-Pin SOIC (150 mil)addresses devices whose temperature is
outside of programmed limits (temperature PIN DESCRIPTION alarm condition)
.Applications include thermostatic controls, DQ - Data In/Out industrial systems, consumer products, VDD - PowerSupply Voltage thermometers, or any thermally sensitive NC - No Connect system.
The DS18B20 Digital Thermometer provides 9 to 12-bit (configurable) temperature readings which indicate the temperature of the device. Information is sent to/from the DS18B20 over a 1-Wire interface, so that only one wire
(and ground)needs to be connected from a central microprocessor to a DS18B20. Power for reading, writing, and
performing temperature conversions can be derived from the data line itself with no need for an external power source.
Because each DS18B20 contains a unique silicon serial number, multiple DS18B20s can exist on the same 1-Wire bus. This allows for placing temperature sensors in many different places. Applications where this feature is useful include HVAC environmental controls, sensing temperatures inside buildings,equipment or machinery, and process monitoring and control.
Digital Chips :
Digital temperature and humidity sensor with a high technological content, application wide range of high quality, highly reliable, competitive and other features. The company can be reached on the mass of the mature product over a hundred type, are widely used in agricultural Equipment. Refrigeration HVAC controller, seafood,poultry and hatching, barn equipment, wine cooler and other fields. Industrial equipment: Dehumidifier, automobile, boiler, automatic control devices, GPS location tracking, automotive, medical equipment, energy-saving power supply, communications equipment and other fields.
How to Order :
In order to help you get the exact model, please offer the following necessary info.:
1, The application of the ds18b20 sensor:__________
2, Working environment of ds18b20 sensor:________
3, The range of operation temperature:___°c to ___°c

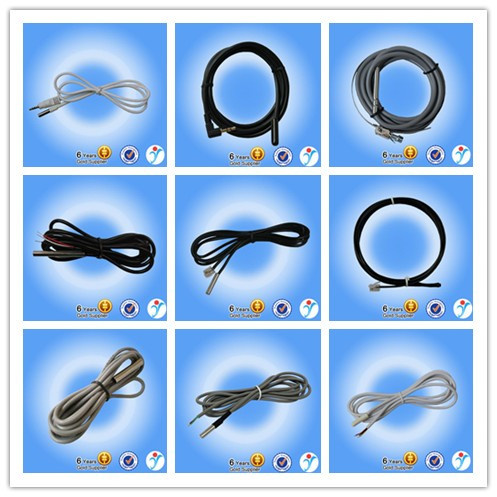

4, The dimension and the drawing of the sensor- cable length___,probe material ___, probe diameter___ and probe length__.
5, Connetor model.
Guangzhou Jian Yuan Electronics Co., Ltd was established in 2006, specialized in the development, design, production and management of temperature sensors as well as beauty machines.
Our company with headquarter in Hongkong, and has branches in Guangzhou, Shunde, Ningbo. It possesses not only the advanced manufacturing equipments, completed testing facilities and 90% experienced managers, 15 engineers and technicians, but also with up to 50 new sensors and beauty machines monthly. We also supply excellent after-sales Service. Based on the superior quality and silver service, our products are popular in European, South America, Middle East, Russia, Africa, and other countries and territories.
The company inherits the following management philosophy: Pursue quality and satisfy the customer, improve our management level and product quality with steady step, our group has successfully passed ISO9001 certification.
We design the styles according to the customers target price, and we have established our quality control system to meet our customers request. The products we make are very cost-effective and quality guarantee.
To look forward to the future, the company will develop continuously with the working spirit of innovating, keeping improving practically and constantly and will be introducing competitive products and service constantly to gain your trust remarkably!
Please feel free to contact us if you are interested in our products. Inquiry now.
