Product Specifications

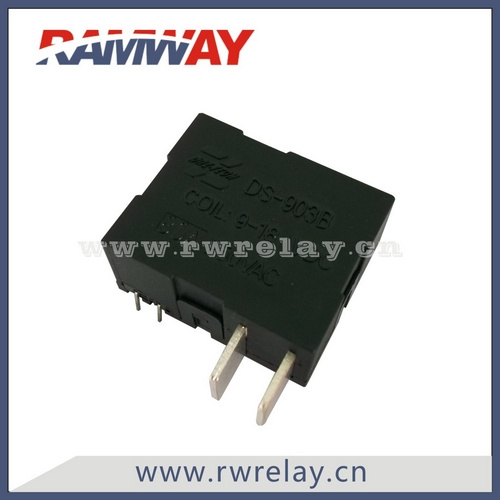

| Prod Model: |
DS903B 80A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Lathe Relay |
| Theory: |
Electromagnetic Relay |
| Type: |
AC Contactors |
| Size: |
Miniature |
| Phase: |
1 |
| Number Of Pole: |
1 |
| Electricity Type: |
AC |
Product Description
Contact Data
Contact Current 80A 250VAC
Contact Form 1A, 1B
Contact Resistance Max 2MΩ(12VDC 1A)
Max. Switching Current 80A
Max. Switching Voltage 250 VAC/110 VDC
Max. Switching Power 20000VA
Electrical Life 10000OPS
Mechanical Life 1000000OPS
Characteristic
Insulation resistance 1000 MΩ(at 500 VDC)
Dielectric Strength Between Contact &coil 4000VAC 1min
Between Contacts 1800 VAC 1 min
Operation Time Max. 20ms
Comback Time Max. 20ms
Ambient Temp. -40~+70degree
Humidity 98%RH, +40degree
Vibration Resistance 10-55Hz, 1.5mm(DA)
Termination PCB
Weight 47g(without accessories)
