Product Specifications
| Prod Model: |
DSSI722 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Current(a): |
1.5(6) 5(20) 10(40) 15(60) 20(80) |
| Rated Voltage(V): |
3*220/380 |
| Rated Frequency(Hz): |
50 or 60 |
| Accuracy Class: |
1s or 2s |
| Display: |
Digital |
| Installation: |
General Installation Meter |
| Usage: |
Multi-rate Watt-hour Meters |
| Electric Equipment: |
Three-phase Four-wire |
| Theory: |
Electronic Meter |
| Power Meter Connection: |
Terminal |
| Measured Signal: |
Continuous Wave |
| Type: |
Energy Meter |
Product Description

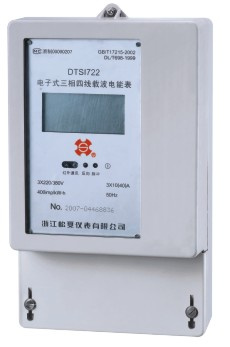

DSSI722 three-phase electronic carrier watt-hour meter
1. Brief introduction of product
DSSI722 three-phase electronic carrier watt-hour meter is the new intelligent adopting an international advanced micro-chip which has the function of carrier communications, relay control, with the special three phase chip, high integration, high measurement accuracy, high speed and low power consumption, carrier communication interface etc.
It meets the standard of GB/T17215.321-2008(IEC61036),GB/T15284-2002, carrier performance conform to the standard of DL/T698.1-2009 electrical industry. Steady and reliable, high accuracy, LCD display, easy installation for watt-hour meter, which is particular applicable to electrical energy measurement and control of commercial customers and industrial users.
2.Function and features
-Measurement function: measurement of positive and negative power of active, protect electricity from stealing, reverse indication, reverse LED lighting for electric energy condition of reverse
-electricity carrier communication function:meter parameter setting and reading
-may control of meter relay
-communication rare: sychronous communication, 500pbs
-communication distance:500m(two connections between each)
-4s carrier relay function, expend communication distance
-communication rule: carrier communication rule
-interruption of power supply function: long range to send and interrupt electricity through the carrier.
-way of display: LCD
3. Main Technical data
Rated Current(A):1.5(6) 5(20) 10(40) 15(60) 20(80)
Rated voltage(v): three-phase four-wire 3*220/380
Rated Frequency(Hz): 50 or 60
Accuracy class: 1s or 2s
Carrier communication:spread spectrum,PSK, the center frequency120k,15khz bandwidth
Power consumption:static state is less than 1W, the carrier launch is not beyond 4W
