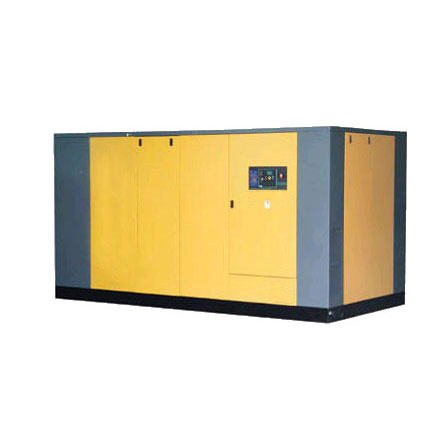

(DTD) -Ultra Direct Driven Screw Compressor

Name: (DTD) -Ultra Direct Driven Screw Compressor
Brand: china-manufacturer-directory.com
SKU: 720966485
Availability: InStock
Rating: 4.5 (27 reviews)

Supplier:	Shanghai Dynamic Technologies Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	DTD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Configuration:	Stationary
Power Source:	AC Power
Type:	Screw
Lubrication Style:	Lubricated
Mute:	Mute

Product Description

- Power-head of compressor is directly connected to motor, therefore, no power lose. Lower rotating speed and larger diameter power-head results in better efficiency for air compressing;
- Rotator, gear box are connected from a flexible coupling to the motor, the installation is more efficient than any belt system. Users therefore get more compressed air with same quantity of power spent.
The installation is self-centering-aligned to take toque on its peak value and to avoid impact;
- Less wear and tear parts, better reliability and less cost for service and maintenance;
Applicable for larger power rate machines.

DTDA
Model	Bar	Output (M3)	KW	Kg	Outlet
DTDA22	10.5	3.5	22	620	G1"
DTDA37	8.5	6.5	37	1000	G1"-1/2"
DTDA45	8.5	7.6	45	1050	G1"-1/2"
Cooling:Air/Water		Power Supply: 380V, 3Ph, 50HZ
DTDB
Model	Output (M3)		KW	Kg	Outlet
DTDB110	7.5,20.0/8.5.17.8/10.5,15.8		110	3850	3" Flange
DTDB132	7.5,24.2/8.5.21.8/10.5,18.5		132	3950	3" Flange
DTDB160	7.5,27.6/8.5.25.6/10.5, 21.5		160	4130	3" Flange
DTDB185	7.5,31.0/8.5.28.0/10.5,25.3		185	4460	4" Flange
Cooling:Air/Water		Power Supply: 380V, 3Ph, 50HZ
Size: 2700 x 650 x 850mm, (110,132) 285 x 700 x 950 (160,185)
DTDC
Model	Output (M3)		KW	Kg	Outlet
DTDC55	7.5,10.0/8.5,9.0/10.5,8.0		55	2000	2" Flange
DTDC75	7.5,13.0/8.5,11.8/10.5,10.5		75	2050	2" Flange
DTDC90	7.5,15.6/8.5,14.1/10.5,12.8		90	2150	2" Flange
Cooling:Air/Water		Power Supply: 380V, 3Ph, 50HZ
Size: 2200 x230 x 700mm, (55,75) 2200 x 300 x 700 (90)
DTDD
Model	Output (M3)		KW	Kg	Outlet
DTDD220	7.5,37.8/8.5,35.8/10.5,32.3/12.5,29.6		220	4500	4" Flange
DTDD250	7.5,44.0/8.5,41.8/10.5,38.5/12.5,34.8		250	4800	4" Flange
DTDD300	7.5,52.0/8.5,51.0/10.5,46.0/12.5,41.0		300	5300	4" Flange
DTDD315	7.5,54.8/8.5,53.3/10.5,48.0/12.5,42.8		350	5500	4" Flange
Cooling:Air/Water		Power Supply: 380V, 3Ph, 50HZ
Size: 2200 x230 x 700mm, (55,75) 2200 x 300 x 700 (90)
PLS contact _TECH for Special Applications above 1,25 bar

Our goal is to deliver smart and reliable manufacturing, installation and maintenance of compressed air solutions for our customer needs. We have gained our position as a leader in the compressor world by working diligently in improving our products, techniques and customer service in every scale.

With manufacturing facilities in China and a worldwide distribution network, BEST-PAL serves customers in every corner of the globe. BEST-PAL factory in China is ISO 9001: 2008 certified to assure the highest quality standards.

D-TECH Air Compressors
The Energy-Saving D-Tech Patented Profile Airend Larger, slower-running airends are more efficient and deliver more compressed air for the same input power. BEST-PAL Patented Profile Airends are optimized and designed to operate at the lowest possible speeds. Every BEST-PAL rotary screw compressor is equipped with a highly efficient airend and will quickly pay back for itself through power cost savings.

Time Proven Reliable Airend
Used in compressors worldwide, BEST-PAL airends have proven to be the market leader in both reliability and efficiency.
Precision machined rotors.
Highest quality tapered roller bearings.
All coolant flow paths are integral to the cast housing, eliminating potential leak paths.
Ideal wherever budgets are limited, but the need for performance is not.
Premium Efficiency And Performance
BEST-PAL's premium efficiency compressors deliver reliability through our unique airends, reknowed for trouble-free operation and low energy consumption. Efficiency and durability through low compression ratio in each stage.
