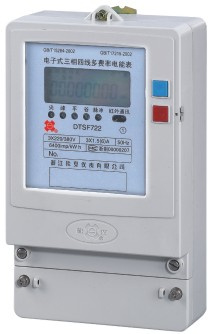

DTSY722 type electronic pre-paid watt-hour meter
1.Brief introduction of product
The DTSY722 type three-phase electric pre-paid watt-hour meter is a new type of IC card pre-paid meter, which has such function as power metering, load control and customer information management. It is an ideal product when reforming electric-use system, achieving electrical energy to commercialize, setting charge and adjusting load stage in the electric network. All the indexes comply with the technological specifications aiming to the three-phase electronic pre-paid watt-hour meter in the standard of GB/T 17215.321-2008 class1 and 2 static A.C active watt-hour meter and GB/T 18460-2001. This series electronic watt-hour meter has two ways of wiring: Direct wiring or wiring by current transformer.
2.Function and features
-Active three-phase electric power metering, don't need calibrate for long-term operation
-Three-phase power supply can assure accurate metering in case of cut off in one line(each line of three-phase & three line) or two lines(any two lines of the three-phase & four line)
-Indicative function for phase loss or voltage indication
-The signal will display after it test
-Each user(meter)responds to a card, well protect form forgery
-Once the remaining electric power quantity is approaching the alarming power quantity, the digital tube should be lighted to remind user of timely purchasing
-Once the electric consumption available is out, it should be auto cut-off
-Auto cut-off overload
-Date-copying function make the electricity department easier to manage
-Load switch
-The IC card power selling control system has the function as power selling and using control
-Expansible RS485
3.Main Technical Data
Rated Current(A):3*1.5(6) 3*5(20) 3* 10(40) 3*15(60) 3*20(80) 3*30(100)
Rated voltage(v): 3*220 or 380 3*100 or 57.7
Rated Frequency(Hz): 50 or 60
Accuracy class: class1 or class2
