Guangzhou Nova Acoustics Co., Ltd. >> Dual 10" PRO Audio Line Array Speaker (Q1)

Dual 10" PRO Audio Line Array Speaker (Q1)

Supplier:	Guangzhou Nova Acoustics Co., Ltd.
Price:	US $ 400-550/Piece
Min Order:	2/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	Q1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Compact Dual 10" Line Array:	High Power Speaker
Noise:	<95dB
Hi-Fi:	Hi-Fi
Operation Mode:	Wire / Remote Control
Speaker System:	Mono
Speaker Material:	Wood
Application:	Commercial
Certification:	CE
THD:	<0.005%

Product Description

NOVA make line array, PA audio, pro audio, professional loudspeakers,amplifier, signal processor and flightcase.

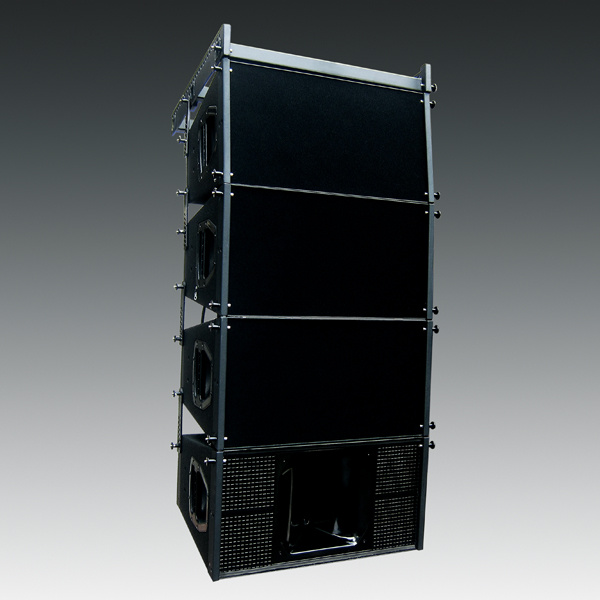

Q1 is a passive two-way design that houses 2x10" LF drivers and a 2" HF compression driver units.

Q1 Specification:

Frequency response: 60Hz-20KHz(-10dB)
100Hz-19KHz(±3dB)
RMS power: 750W
Program power: 1500W
Norminal Impedance: 8Ohm
Sensitivity: 139dB/W/M
Max SPL: 142dB
Component: 2x10"+2"
Coverage Angles: 75H°x15°V

Specification
Model	Q1	QSUB
System	2-Way line array system	subwoofer
Frequency response (dB standard):	60Hz-17KHz (±3dB)	40Hz-130Hz
Frequency response (dB CUT mode):	100Hz-17KHz (±3dB)	40Hz-100Hz
Components:	LF: 2x10" woofer units	18" sub-woofer unit
	HF driver: 1X2" compression driver unit
Normal Impedance:	8Ohm	8Ohm
RMS power:	750W	500W
Peak power:	1500W	2000W
System sensitivity:	135dB/M/W	129dB/M/W
Max sensitivity:	139dB	133dB
Horizontal (-6dB):	75°	N/A
Vertical (-6dB):	15°	N/A
Dimension (WxDxH):	580x306.5x425mm	493x580x668mm
Enclosure material:	18mm plywood	18mm plywood
Grill:	Black perforated steel	Black perforated steel
Suspension system:	proprietary rigging system	proprietary rigging system
Net weight:	29kg	49kg

Nova specializes in manufacturing PRO audio which including line array, professional loudspeakers & KTV, power amplifiers, mixers consoles, signal processors including equalizers, limiters/compressors, exciters, crossovers, power sequence controllers etc. To meet different customer's market, we also add producion line for woofer speakers, subwoofer speakers and flightcase for sound equipmentand professional lights and LED monitor ect.

With experienced & strong R&D department and strictly quality control managment and Satisfactory market service system and reasonable price and good quality, Our price had got high reputation in many ares.

OEM/ODM also available.

Nova will offer what you want.

Please join in NOVA family!
