Product Specifications
| Prod Model: |
KK D323 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

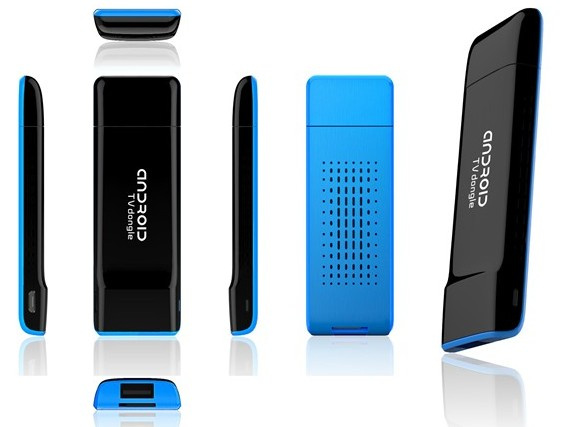

More Information about dual core android 4.2 google TV dongle KK D323:
Hardware Spec.
Operation System: Android 4.1.1or 4.2. 2
Language: Chinese, EnglishMulti-Language support
Chipset: RK3066 Dual core ARM Cortex-A9
GPU: Mali 400, Quad-Core
SDRAM: DDR3 1GB(256M*8bit*4) Optional: 2GB
Nand Flash: 4GB Nand Flash. Optional: 4GB/8GB/16GB
Storage Extension: Support MicroSD(TF), Up to 32GB
Power Supply: DC 5V/1000mA via Micro USB
Interface
AV Out-Put: 1xHDMI A male Jack, HDMI1.4A
USB Host: 1XUSB 2.0
Card Reader: 1xMicro SD(TF) slot, Push-Push type
Bluetooth: Support Bluetooth4.0 Optional
Power Supply: 1xMicro USB
LAN: RJ45 (Via Micro USB connect Wire Network Adapter) Optional
Network
Wi-Fi: Support 802.11 b/g/n Wireless protocol
Cable Network: LAN 10M/100M Optional by customer
Media Parameter
Audio Container: Support MP1, MP2, MP3, WMA, WAV, OGG, OGA, APE, FLAC, AAC, M4A, 3GPPetc Audio formats. Muliti -EQ mode, Support Synchronized lyrics and full-page lyric display.
Audio Out: HDMI Data Output
Video Decoder: MPEG-1, MPEG-2, MPEG-4, H. 263, H. 264, AVS, VC-1, RV, VP6/VP8, Sorenson Spark, MVC 1920× 1080P 60FPS"
Video Encoder: H. 264, VP8, MVC(1080P)
Resolution: Full HD1080P@30fps
H. 264 Data Rate: Up to 60Mbps
Image browser: Support JPG, JPEG, BMP, GIF, PNG, JFIFetc photo format. Maximum resolution up to 8192× 8192.
Text-Reading: Support TXT, LRC, PDF, HTML, Htm, EPUBetc formats(Depends on APK install).
APK Download: Support Android Market & APK install.
DLNA, Miracast Protocol: Support DLNA, Miracast Protocol
IM Software: Support Skype/QQ/MSN/GTALK (Depends on APK install)
Offic Software: WORD/EXCEL/PDF(Depends on APK install)
Remote Control: Support Smart phone remote control, 2.4GHz wireless mouse, IR Remote controller. Optional
Others Parameters
Operationg Temperature: -10~40
Storage Temperature: -20~50
Humidity environment: 5%-90%(No condensation)
Certification: CCC, CE, EMC, FCC, Wi-Fi
Package
Dimension: 90× 33.3× 12mm
Net Weight: 32g
Carton Box Size: 422*255*385mm
Gift Box Size: 175*81*47mm
Accessory List
1. Standard Package: 1xUSB Cable, 1xManual, 1xHDMI Convertor Cable, 1xAdapter(USB DC 5V/1000mA).
2. Optional Package: 1xY type USB Cable, USB Wire Network Adapter, IR Remote Control+1xIR receiver USB cable, 2.4G air mouse
