Dual Core Mini Computer Industrial Motherboard Mini Computer Industrial PC. Two LAN Port

Dual Core Mini Computer Industrial Motherboard Mini Computer Industrial PC. Two LAN Port
Supplier: Huizhou Dayawan Fox Etech Limited
Price: Negotiable/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CIF,EXW
contact supplier

Product Specifications

Prod Model: ITX-hm67-002
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Lvds: Support 24bits Dual Channel Lvds Conncetor
Printed Circuit Board: Four Layers
Audio Effects: Not HiFi
SATA Interface: SATA2.0
Main Chipset: Intel
Structure: Mini-ITX
Memory: DDR3
Integrated Graphics: Integrated Graphics
Maximum Memory Capacity: 8G
Main Board Structure: Integrated

Product Description

dual core mini computer industrial motherboard mini computer industrial pc .two Lan port


specifaiction:
The features :
1.low consumption
2.Made from factory
3.Long working hours >5 years
4.Three years quality guarantee.


Main Features

Suitable for

AD Player;AIO machine; Thin Client; Firewall;Car PC;HTPC;VOD; IPC; POS etc.

Form Factor

3.5 Inch 115mm×155mm×23mm

Chipset Manufacturer

Intel

CPU

Intel Core2 i7/i5/i3 processors optional;default I3-2310M (3M Cache, 2.10 GHz)

Chipset

Intel® HM67 /QM67 Express Chipset

L2 Cache

3MB, CPU integrated

BIOS

AMI EMI 32MB SMT/DIP-SPI Flash ROM

RAM

DDR3 1066/1333/1600MHz memory,SO-DIMM socket,maximum up to 8GB

Integrated Graphics

Intel HD Graphics ( requires compatible CPU with built-in GPU )

Sound

Onboard Realtek HD ALC662 chipset(Line in/out/Mic),onboard power amplifier.

Network

RTL8111EL PCI-E Gigabit Ethernet LAN,support RTL/PXE diskless booting

Storage

2*SATA;1*mSATA

LVDS

Support 24bit dual channel LVDS connector.Resolution maximum up to:1920*1200

USB

8*USB 2.0/1.1(2 external;6 from expansion headers)

Expansion Sockets

1*Mini SATA socket;1*Mini-PCIE socket for WIFI;1*SIM card slot for 3G

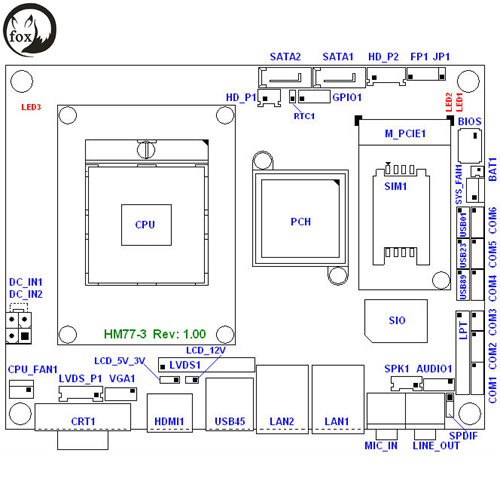

rear panel I/O

1*12V -DC power supply

1*HDMI

1*VGA port

2*USB 2.0/1.1 port

2*1000M RJ45 port

2*Audio I/O interfaces( Line in,Line out,Mic)






Internal I/O

3*USB 2.0/1.1 expansion header

2*CPU/SYS Chassis fan connectors

1*Audio I/O expansion header

6*COM expansion headers (support RS232/422/485)

1*GPIO expansion header(8 bit)

1*VGA expamsion header

1*Audio power amplifier

1*LPT expansion header

Power Interface

2PIN DC Power connector

Working Temperature

-20°C~70°C (-4°F~158°F)

Storage Temperature

-20°C~80°C (-4°F~176° )

Operating Humidity

 10%~90% (non-condensing)


The Applications / suitable for :

1. all-in-one PC, home entertainment systems, factory automation, information release system.
2. Building automation, intelligent transportation system, monitoring system and so on to automotive electronics.
3. Digital electronics/advertising billboards (DSA), health care use computer game/game machines.
4. Professional, medical, textile machinery, electric power, transportation line POS cash register;
5. On-board memory, high stability, is all kinds of numerical control, automotive, medical, aerospace equipment.
6. Industrial automation control, instrumentation, medical equipment, electric power systems.

7. Telecommunication, railway transportation, aerospace, military defense of choice.
