Bosin Holdings Limited >> Dual Gang Joystick Potentiometer with Switch for Toys- RJ1612

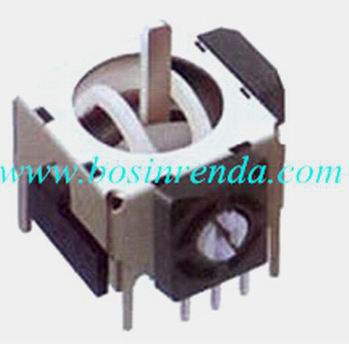

Dual Gang Joystick Potentiometer with Switch for Toys- RJ1612

Name: Dual Gang Joystick Potentiometer with Switch for Toys- RJ1612
Brand: china-manufacturer-directory.com
SKU: 720899855
Availability: InStock
Rating: 4.4 (143 reviews)

Supplier:	Bosin Holdings Limited
Price:	US $ 0.1/Piece
Min Order:	200/Piece
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	RJ1612
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
RoHS:	100%
Certificate:	ISO9001, ISO14001, Ts16949
Produce Capacity:	30kpcs Per Day
Shipping:	Via Sea, Via Air, Via DHL, UPS...
Resistance:	Variable Resistor
Type:	Rotary Potentiometer
Installation:	DIP Resistor
Function For Resistance:	Load Resistor
Material:	Carbon Film Resistor
Package Type:	Throught Hole

Product Description

Potentiometer, rotary potentiometers, joystick potentiometer, metal shaft potentiometers, audio potentiometers

Bosin electronics is a manufacturer specializing in rotary encoders, potentiometers and switches. Our company passed ISO9001, ISO14001, ISO/TS16949.

This type joystick potentiometer mainly use on electrical toys, Sony PS3.

Our products have superior operational feeling, integrated tact switch and long operational life.

Please check below specification.

1.Mechanical characteristics for joystick potentiometer
1.1 Figure of lever operation:	Circular Operating
1.2 Operating angle of lever:	60°±6°
1.3 Stopper Strength:	3.1Kgf.cm Min 3Sec
1.4 Push-Pull Strength:	Push/Pull:5.0Kgf Min 3Sec.
1.5 Operating Force:	160±40gf
1.6 Accuracy of rest position:	±5°
2.Electrical characteristics
2.1 Total Resistance:	5KΩ~100KΩ
2.2 Resistance Tolerance:	±20%
2.3 Resistance Taper:	B
2.4 Max. operating Voltage:	Taper B:AC 50V or DC 5.0V
2.5 Rated Power:	Taper B:0.0125W
2.6 Withstand Voltage:	1 minute at AC 300V
2.7 Residual Resistance:	50Ω Max
3.Durability
3.1 Rotational Life:	Standard life :1 Million Cycles Min.
4. Switch Characteristics
4.1 Rated Power:	12 V DC, 50 MA
4.2 Operating Force:	820±260gf
4.3 Travel:	0.5+0.5/-0.4mm
4.4 Operating life:	100,000 Cycles min

After decade of efforts, the Bosin products have been sent to over 100 countries, including rotary potentiometers, slide potentiometers, trimmer potentiometers, super-thin potentiometers, encoders and rotary switches, widely applied to computer/multimedia peripherals and various industrial fields. All products are RoHS compliant. For further improving the compatibility and making effort to our quality policy of "Keep Improving, Quality Assurance", the Bosin takes most advanced management mechanism and technologies that including computerized jigs and dies design, automatic assembly facilities and so forth. Now, the Bosin has the capability of producing over 1200 different kinds of hardware, 16 series with about 240 models of potentiometer to meet most of the requirement of the potentiometer market.

The Bosin has passed the certificate of ISO 9001-2000, ISO 14001-2004, TS16949, this assures to satisfy our clients with best quality of products and services. Now, the Bosin is devoting all its efforts to become the top of the potentiometer manufacturer in China.
