Product Specifications
| Prod Model: |
RJ45 Modular Jack |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Network |
| Test: |
100% Test Before Shipping |
| Free Sample: |
Yes |
| OEM: |
Acceptable |
| Warranty: |
Life Time |
| Support Network: |
Ethernet |
| Usage: |
Computer |
| Type: |
Wired |
| Information Content: |
Data |
Product Description

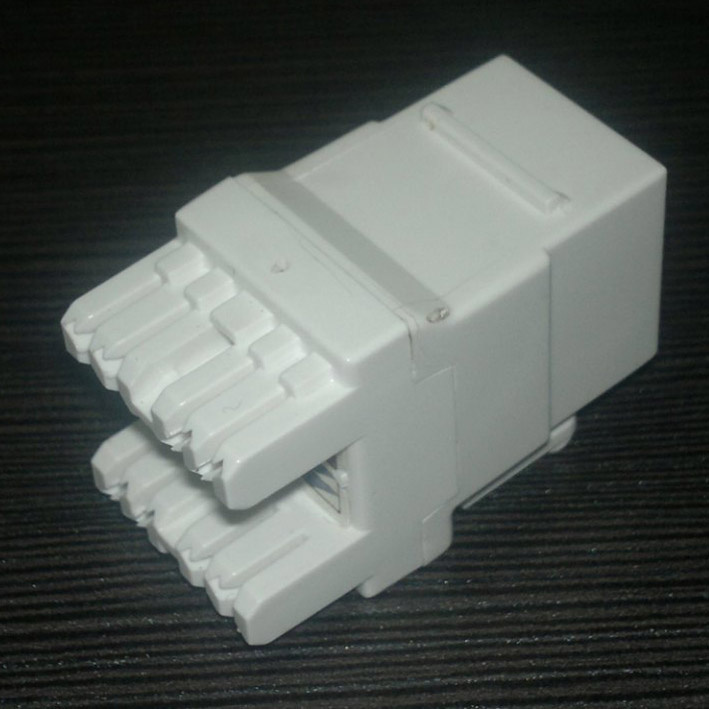

Dual IDC Cat5e RJ45 Modular Jack 180 Degree
1. Cat5e keystone jack
2. Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5e requirements;
Meet TIA/EIA TSB-40;
Meet ISO/IEC Generic Cabling Standard 11801;
Meet CENELEC Generic Cabling Standard EN50173
3. Angle: 180 Degree, fit for loading a full STP/UTP 24/48 port patch panel
4. CAT5e available
Electrical:
1. According to UL 1863
2. Current rating: 1.5 Amp Max.
3. Voltage rating: 150 Volts
4. Contact resistance: 20 m-ohm
5. Insulation Resistance: 500M-ohm
6. Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Mechanical:
Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 U" to 50 U" Gold plating on contact area.
Packing: 1pc/plasic bag, 100PCS/BOX
Our Service:
1. Any question will be replied within 24 hours.
2. Professional manufacturer. Welcome to visit our company.
3. Warranty is Life Time.
4.100% test before shipping.
5. OEM/ODM is available:
1)print logo the products.
2)customized color box.
6. Faster delivery:
2 days for Samples order, 3-7 days for bulk production.
7. Payment:
You can pay for the order via: TT, Western Union, ESCROW
8. Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS, China Air Post
Production Flow:
Certificate: CE, FCC, ROHS, UL, ISO9001
|
Housing |
PC UL94V-0 |
|
PCB |
1. FR4 1.6mm(0.04") thickness.
2. 4 layers. |
|
Contact |
1. PC Ul94V-0
2. Phosphor bronze: 0.45mm(0.018") Diameter
3. Gold plating: 3 U"/0.0762um ~ 50 U"/1.27um |
|
Electrical |
1. According to UL 1863.
2. Current rating: 1.5 Amp Max.
3. Voltage rating: 150 Volts.
4. Contact resistance: 20 m-ohm.
5. Insulation Resistance: 500M-ohm.
6. Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min. |
|
Standard |
1.Meet TIA/EIA-568-A and TIA/EIA-568-B Category6a requirements.
2.Meet TIA/EIA TSB-40.
3.Meet ISO/IEC Generic Cabling Standard 11801.
4.Meet CENELEC Generic Cabling Standard EN50173. |
|
Performance |
Pass FLUKE test |
