Product Specifications
| Prod Model: |
TSUMU88EDI-LF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Manufacturing Technology: |
Integrated Circuits Device |
| Material: |
Element Semiconductor |
| Type: |
Intrinsic Semiconductor |
| Package: |
DIP(',Dual In-line Package) |
Product Description

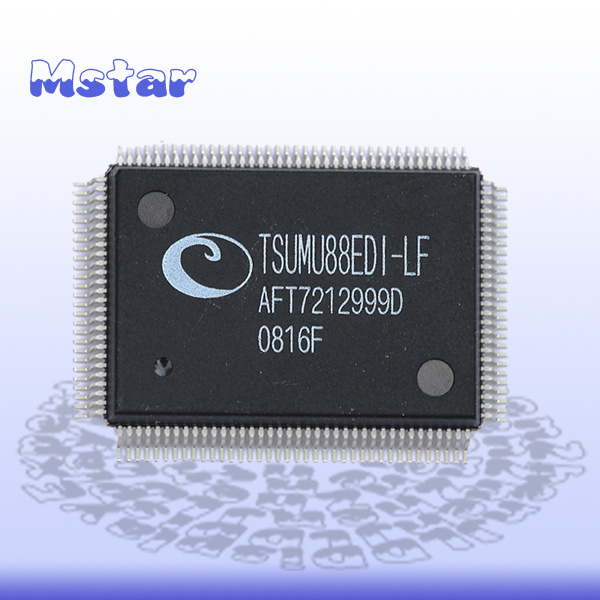

UXGA/WSXGA LCD Controller with Dual Interface and Dual LVDS Transmitter Chip
Key Specifications/Special Features:
Input ports:
RGB analog input port supports up to 165MHz (UXGA at 60Hz)
Full SOG and composite sync support, including copy protected signals
Two DVI/HDMI input ports
Compliant with HDMI, HDCP and DVI receiver
Supports HDMI 8/10/12-bit deep color mode (up to 225MHz at 1, 080P 60Hz with 12-bit deep color resolution)
25 to 225MHz TMDS operating speed
Display processing engine
Variable sharpness control
Interlaced to progressive conversion
Media Window enhancement (MWE)
Dynamic Luma Curve (DLC) with 32 segments
With 6 axis adjustments
Peaking and coring functions for sharpness enhancement and noise reduction
Brightness and contrast control
Programmable 10bit gamma correction
RGB supported
Advanced vertical line scaling
Auto-detection/auto-tune supported
Auto input signal formats (SOG, composite, separated HSYNC, VSYNC and DE)
Input mode detection support analyzes input video signal (H/V polarity, H/V frequency, interlace/field detect) extensive status registers support robust detection of all VESA and IBM modes
Auto-tuning function including support for phase selection, image position, off set/gain and jitter detection
Smart screen-fitting
On-screen Display Controller (OSD)
Built-in OSD generator with 291 character font programmable RAM
OSD programmable font height
Internal OSD rotation degree of 90 and 270
Supports 2/4/8 multicolor fonts
Supports 8/16/256k color palette
Supports 1K code attributes
Gradient color function
Hardware button animation function
Pattern generator for production test
Supports OSD MUX and alpha blending capability
Supports OSD gradient engine
