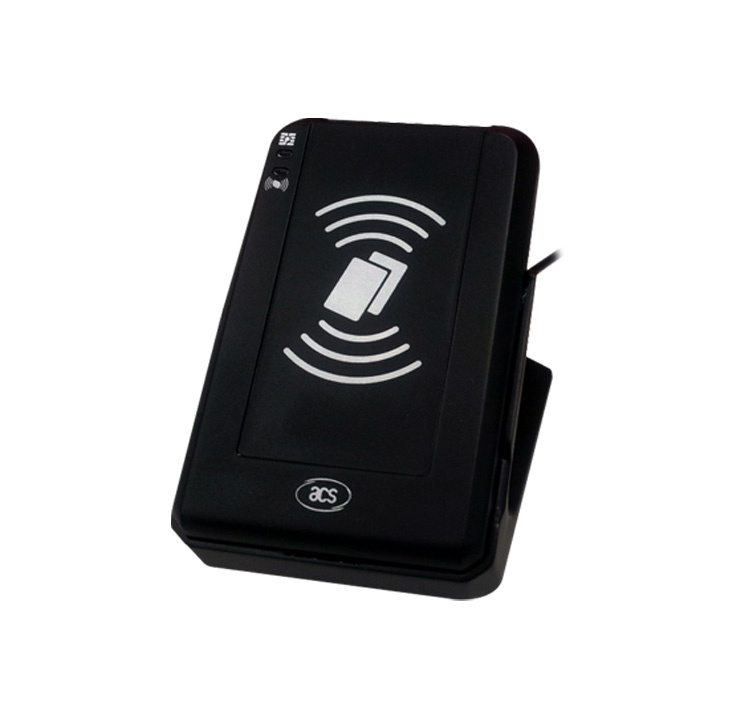

Dual Interface Smart Card Reader-- ACR1281u-K1
Product Specifications
| Prod Model: |
ACR1281U-K1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Source: |
From USB |
| Supply Voltage: |
Regulated 5V DC |
| Supply Current: |
200mA |
Product Description
Dual Interface Smart Card Reader-- ACR1281U-K1
Feature
USB Full Speed (12 Mbps)
CCID Compliant
USB firmware Upgradable
Compliance/Certifications:
ISO 14443
ISO 7816
CE
FCC
PC/SC
CCID
PBOC
Qpboc
EMV Level1
MicrosoftRWHQL
RoHS
| Universal Serial Bus Interface |
| Source | From USB |
| Speed | 12 Mbps (full speed) |
| Supply Voltage | Regulated 5V DC |
| Supply current | 200mA |
| Contactless Smart Card Interface |
| Standard | ISO 14443 A & B Parts 1-4 |
| Protocol | ISO 14443 T=CL for ISO 14443-4 compliant cards and T=CL Emulation for Mifare series |
| Smart card read/ write speed | 106 kbps\212 kbps\424kbps\848kbps |
| Operation frequency | 13.56 MHZ |
| Operating distance | Up to 50mm(depends on card type) |
| Antenna size | 76mm X 76mm |
| Contact Smart Card Interface |
| Standard | ISO 7816 1/2/3 ,Class A,B,C(5V,3V,1.8V),T=0 and T=1 |
| Supply current | Max.60 mA |
| Smart card read/write speed | 9.6-344bps |
| Short circuit protection | +5V/GND on all pins |
| CLK frequency | 4.80 MHz |
| Card connector | Landing |
| Card insertion cycles | Min.200,000 |
| SAM Card Interface |
| Standard | ISO 7816 |
| Protocol | T=0 and T=1 protocol |
| Bulti-in Peripherals |
| Buzzer | Monotone |
| LEDS | Red and Green |
| Casing |
| Dimensions | 145.0mm(L)X90.0mm(W)X20.5mm(H) |
| Weight | 300 |
| Color | Black |
| Connecting line length | 2.0m(USB) |
| Operation Conditions |
| Temperature | 0-50 ° C |
| Humidity | 10%-90% |
| Compliance/Certifications |
ISO 14443, ISO 7816 ,CE, FCC, PC/SC,CCID, CE FCC,RoHS,USB full speed
MicrosoftRWHQL Windows Vista,7,8 |
| Application Programming Interface |
| Application Programming Interface | PC/SC |
| OS Support |
| Windows 2000, XP,Vista,7,8,Server 2003, Server 2008, Server 2008R2,Linux, Mac,Android TM 3.1 |
