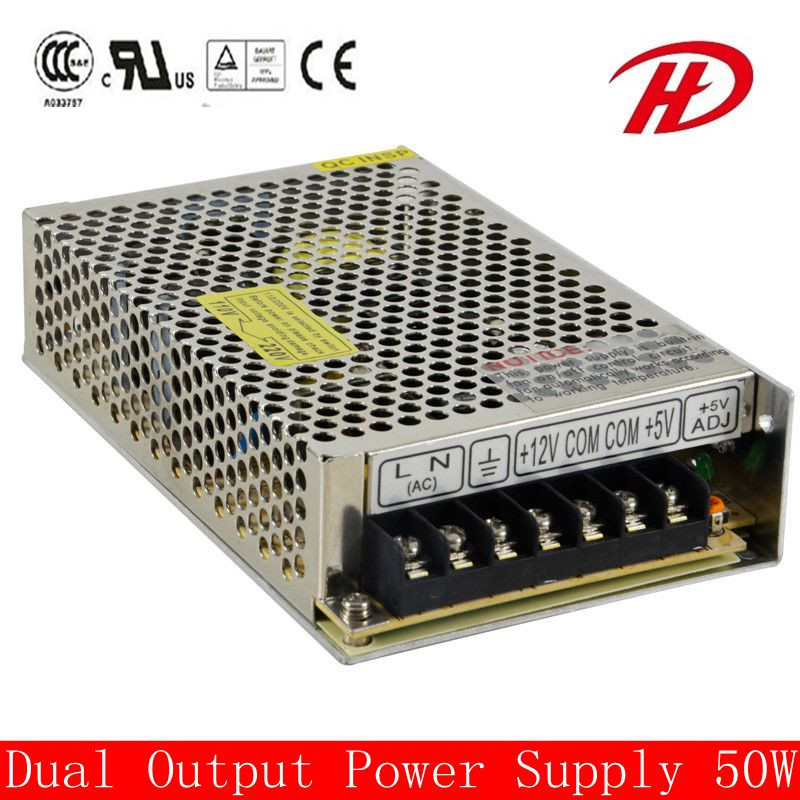

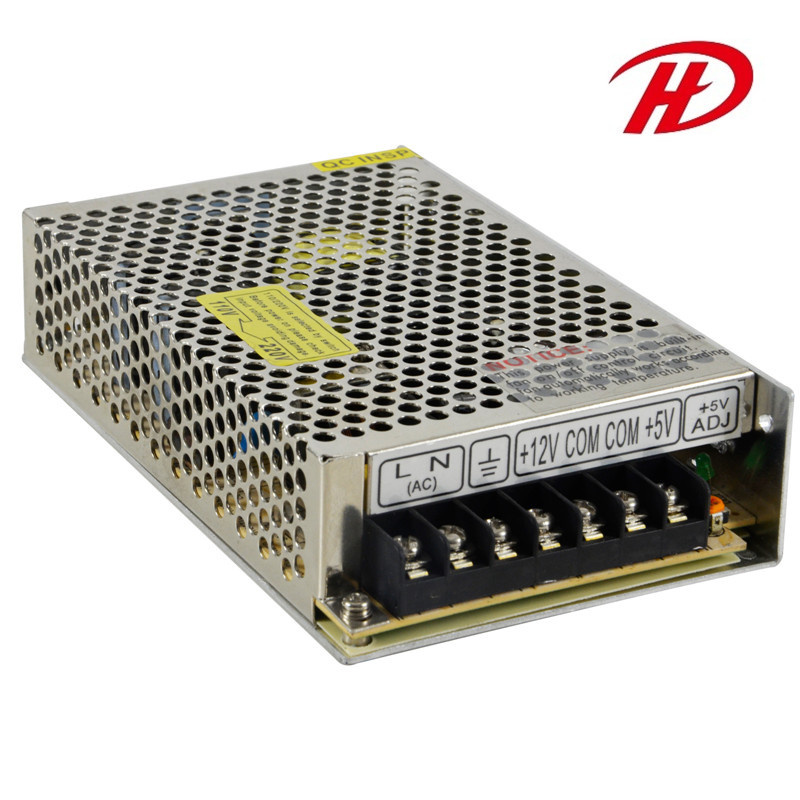

Dual Output 50W Switching Power Supply (D-50W)

Name: Dual Output 50W Switching Power Supply (D-50W)
Brand: china-manufacturer-directory.com
SKU: 724949475
Availability: InStock
Rating: 4.7 (105 reviews)

Supplier:	Cixi Hong Di Import & Export Co., Ltd.
Price:	US $ 7.78-7.92/Piece
Min Order:	200/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	D-50W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	1599738mm
Output Type:	Dual
Output Power:	1 - 50W
Input Voltage:	Full Range
Voltage Regulating Mode:	Frequency Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	2 Years
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	RoHS

Product Description

D-50W series normal dual switching power supply
Features: · AC input voltage range selected by switch
· Small volume, low weight, high efficiency
· Protections: Short circuit/over load
· LED indicator for power on
· 100% full load burn-in test
· 2 Years warranty

Model		D-50A			D-50B		D-50C
output	DC voltage	CH1:5V	CH2:12V		CH1:5V	CH2:24V	CH1:12V	CH2:24V
	Voltage tolerance	± 2%	+4%~-8%		± 3%	+6%~-8%	± 3%	+6%~-8%
	Rated current	6A	2A		4A	1.5A	2A	1.2A
	Current range	0.8~6A	0.3~2A		0.8~4A	0.2~1.5A	0.5~2A	0.2~1.2A
	Rated power	54W			56W		52.8W
	Ripple&noise	80mvp-p	100mvp-p		80mvp-p	120mvp-p	100mvp-p	120mvp-p
	DCvoltage ADJ.range	CH1:-9%~+10%
input	Voltage range	90~132VAC/180~264VAC( selected by switch ) , 255~373VDC
	frequency	47~63HZ
	AC current	1.3A /115VAC , 0.65A /230VAC
	efficiency	73%		75%			77%
	Inrush current	Cold start current18 A /115VAC , 36A /230VAC
	Leakage current	< 2mA/240VAC
protection	overload	Rated output power 110%~150 start over load protection
		protection type :part layer type current limit , auto-recovery after fault condition is removed
	-----	-----
		-----
environment	Working temp,humidity	-10 °c ~+60 °c , 20%~90%RH
	Storage temp,humidity	-20 °c ~+85 °c , 10%~95%RH non-condensing
	Withstand vibration	10~500HZ , 2G 10min/1cycle , period for 60 minutes , each axes
safety	Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	Isolation resistance	I/P-O/P,I/P-FG,O/P-FG:100Mohms/500VDC
Fit standard	Safety standard	Compliance to UL1012
	EMC standard	Compliance to EN55022 , CLASSA
others	Dimension	1599738mm(LWH)
	Weight/packing	0.52kg /45pcs/24kg/0.041m ³ /1.45CUFT
note	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and25 °c of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation.
