Product Specifications
| Prod Model: |
CD-UV55 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Number: |
CD-UV55 |
| Battery: |
1500mAh High Capacity Lithium Battery |
| Dimension: |
117*55*38mm |
| OEM: |
Accept |
| Style: |
Handheld |
| Talk Range: |
8km Max |
| Battery Type: |
Lithium Battery |
| Usage: |
Home, Commercial, Army |
Product Description

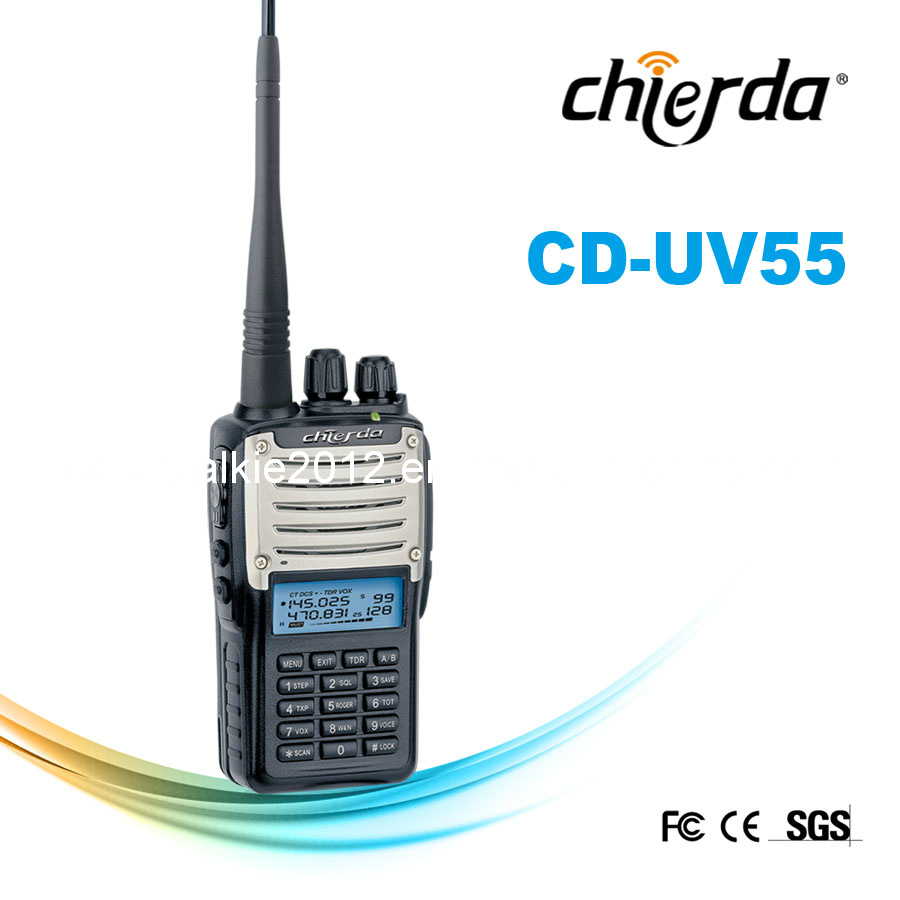

Dual Standby Dual Band Dual Display 2 Way Radio CD-UV55
3. Normal Function and Features:
1) Frequency Range: VHF 136-174MHz or UHF 400-470MHz
3) Channel: 128
4) Voice Prompt of English and Chinese
5) Busy Channel Lock Out
6) Battery Save Mode
7) Timer-out Timer
8) CTCSS/DCS
9) Dimension: 117*55*38mm
10) Weight: 198g
Dual Standby Dual Band Dual Display 2 Way Radio CD-UV55
Standard Accessory:
1* Antenna
1* Recharageable Lithium Battery
1* Desktop Charger
1* Adapter(USA charger, EU charger, etc)
1* Belt Clip
1* English Manual.
Anout us:
We do our best to produce excellent quality products and services, we hope we help you and are glad to become your faithful friends
Shippment:
For fast delivery, usually bulk goods are shipped by DHL, UPS, FedEx, EMS etc, large quantities depend on customer's request.
Note:
1) Please contact us at first time for bulk order, larger discount waits for you
2) Please be responsible for custom tax if your local custom charge some custom tax.
3) OEM service is offered, we can design packing box and logo mark as your requirement.
4) Sample time: If with our logo, within 5 days.
5) MOQ: 2 for sample; 100 for mass production; 500 for OEM
6) Payment term: T/T, Western Union and PayPal
7) Warranty Information: 12 months for body radio; 6 months for accessories
|
Specification: |
|
Frequency Range |
400.000~470.000MHz |
|
Rated Voltage |
DC7.4(Li-ion battery) |
|
Memory Channel |
128 |
|
Channel Spacing |
5, 6.25, 10, 12.5, 25, 50, 100KHz |
|
Frequency Sensitivity |
± 2.5PPM |
|
Antenna Impedance |
50 Ω |
|
Dimension |
117*55*38mm(except antenna) |
|
|
|
Transmitter: |
|
Output Power |
UHF4w/VHF5W |
|
Current |
≤ 1.6A |
|
Modulation Distortion |
≤ 5%(300-3000hz) |
|
Maximum Frequency Deviation |
< 5Khz(wide band)/< 2.5KHz(narrow band) |
|
CTCSS Frequency Deviation |
0.75KHz ± 50Hz |
|
Remanent Radiation |
≤ 7uW |
|
Modulation Mode |
16Kø F3E/11 Kø F3E |
|
Remanent Modulation |
≤ -35DB |
|
|
|
Receiver: |
|
RF Sensitivity |
≤ -0.25uv/≤ 0.3uv |
|
Silent Sensitivity |
≤ 0.2uv/≤ 0.25uv |
|
Audio Frequency Power |
≥ 500mw |
|
Audio Distoftion |
< 5% |
|
Modulation Receiver Bandwidth |
± 7khz |
|
Spurious Rejection |
≥ 55DB |
|
Selectivity |
≥ 65DB |
|
Intermodulation |
≥ 60DB |
