Product Description:
Special design Glass faceplate, Long time using life, 3Years Guarantee, Easy install, High Safety performance, Have Passed CE, RoHS Test.
Product Available for:
All smart products (Include: I pod, I phone, I pad, smart mobile phone, Video camera, game machine, TABLET, PSP, digital camera etc) can be charged via the build-in USB power supply.
Product feature:
1, Pass the CE, RoHS, FCC certification;
2, PC panel adopt LG Engineering inflaming retarding material with UL94V0 fire-protection rating;
3, Copper spring strip of AC Inlet adopt long-range elasticity and environmental protection phosphor bronze(Thickness: 0.6~0.7mm, Width: 6.3mm), no any distortion after 40, 000 times plug and unplug test, normal use 12 years no any looseness;
4, The design of USB Power based on surge, lightning, over-voltage and over-current protection;
5, Built-in high-powered and intelligent charger module, there are over voltage/current and short protections, 2 separated USB ports can auto detect the loading, so as to ensure the charged quality and extend the battery life;
6, To ensure the quality, each product has run over 8 Hrs Burn in test and the USB has passed the 3000V Safety test before shipment.
Packing and Shipment:
Packing: Non-woven fabrics pocket, Box, Carton;
Package Quantity: 100 PCS/10 box/Carton
Packing Size: 525mm (L)*340mm (W)*210mm (H)
N. W/G. W: 13.1/14.6KG
OEM Service: Customize the packing, the LOGO or other requirements are available
Production Capacity: 1000000PCS/M
Product Name |

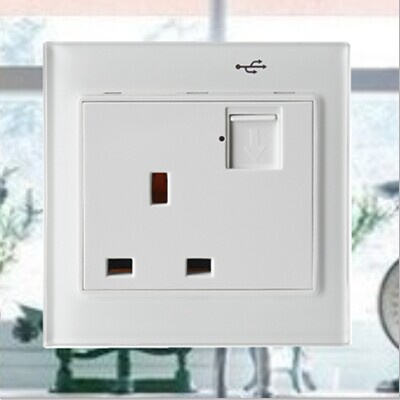

British Standard Wall Socket with USB Charger |
Construction |
Single USB charging ports and British Standard socket |
Material for faceplate |
LG Engineering Flame-retardant polycarbonate |
Feature |
White or champagne glass faceplate |
Material for contact |
Phosphor bronze (Thickness:0.6~0.7mm,Width:6.3mm) |
Maximum current for AC electric outlet(rated current) |
13Amp |
Maximum voltage for AC electric outlet(rated voltage) |
250V |
USB charging current (Maximum) |
2400mA |
USB charging voltage (Maximum) |
5V |
Power consumption |
<30mW |
Dimensions |
86mm(L)* 86mm(H)* 36mm(D) |
Lifetime |
100,000 times |
Color |
White, champagne or customized |
MOQ(Minimum order quantity) |
1000 pcs |
Compatible products |
Smart phones, Tablet, FSP, digital camera and etc |
Compatible plugs |
British Std. |
Application |
Commercial, Industrial, Hospital, Residential/General Purpose |
|
|
|
|
