Product Specifications
| Prod Model: |
HXK118 |
| High Quality Competitive Price: |
Www.Hbxk.COM |
Product Description
SPECIFICATIONS

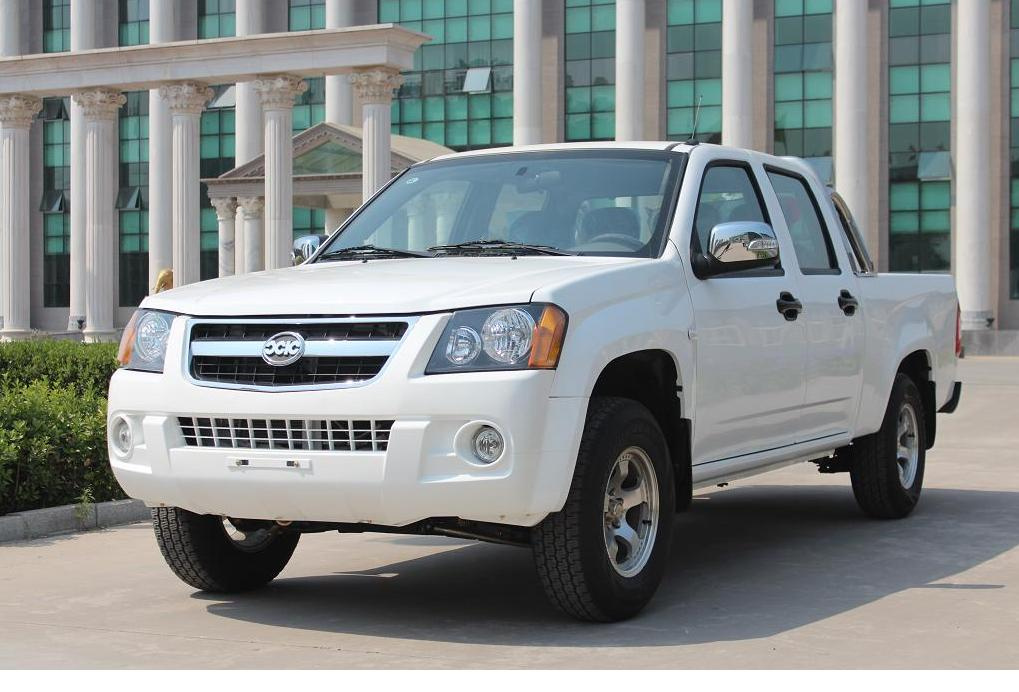

Vehicle Type Double cabin pickup cab
Model 118
HXK1021EG (Gasoline) HXK1021LEG (Diesel)
DIMENSIONS&WEIGHTS
Overall length (mm) 5130 5400
Overall width (mm) 1760
Overall height (mm) 1615
Wheelbase (mm) 3025 3390
Tread, front/rear (mm) 1460/1440
Min. Groud clearance (mm) 175
Curb vehicle weight (kg) 1495 1515
Gross vehicle weight (kg) 2620 2640
Seating capacity (person) 5
Payload (kg) 500 800
Fuel tank capacity (L) 56
Cargo body inside(mm) Length 1480 1860
Width 1470
Height 450
SYSTEM
Steering Circulating--ball
Suspension Front Dual arms with torsion bar spring independent suspension, with telescopic shock absorbers
Rear Variable rate asymmetric leaf spring
Bake Front Ventilating disc
Rear Drum
Clutch Single plate, dry type diaphragm spring with tensional vibration damper
Gearbox 5speed manual
Max. Vehicle speed (km/h) 120
Min. Turning radius (m) 6
Type 225/75R15
ENGINE(for all models)
Model GW491QE 4JB1(made in China)
Type 4-cylinder, in line, 4-cylinder,
OHC, down-draft, in line, water-cooled
water-cooled, EFI direct injection,
Fuel type gasoline diesel
Displacement (cc) 2237 2771
Compression ratio 8.8 18.2
Max. Power(HP/rpm) 102/4600 78/3600
Max. Torque(N. M/rpm) 193/2600 174/2000
STANDARD
Power steering
Mitsubishi Dashboard ( silver or wooden liner, Coffee or B/G color )
Manual gearbox
Manual front A/C
Power windows
Power mirrors
CD player
Tilting steering column
Aluminum alloy wheel disc / 225/75 R15 Tire
Leater seats
Safe belt of rear seat
Remote control door lock
Stainless steel guardrill
Metallic paint
We are a large modern enterprise founded in 1984 with 30 years development and growth, we have formed 4 industrial introduction base now:
Gaobeidian commercial vehicle production base;
Zhuozhou pickup truck production base;
Shandong Taian light truck production base;
Liaoning Lingyuan heavy-duty vehicle production base.
Our group is involved in the fields of whole car manufacturing, modified cars, spare parts processing and real estate development. Many modern production lines with domestic advanced level and 500 sets of equipment and assisting facilities include automobile welding, spray coating, assembly and test. etc.
At present, our group occupies an area of 1.3million square meters, including 800, 000 square meters of modern plant buildings. More than 9600 workers. Having established a 24-hour after-sales service system, we are confident of ensuring customer satisfaction. Working to improve product quality and maintain continual growth, we have passed evaluation of ISO9001 quality management system.
With the advanced technology and great brand, we have developed more than 30 kinds of products, such as "Xinkai" 1021 pickup series and 6490 and 6480 multifunctional business vehicle series, and our products has exported to more than 100 countries around the world.
If you are an importer need any kind of the products we, please contact us with your detailed requirements. We assure our best services and cooperation to all requirements of our valued buyer.
