Product Specifications
| Prod Model: |
TSQ2147X |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Rubber Recycling Machine |
| Automation: |
Automatic |
| Size: |
1-10mm |
| Belonging: |
New Plastic Granules Machine/Waste Plastic Granula |
| Equipment Weight: |
5600kg |
| Motor Specifications: |
Electric |
| Capacity: |
0.3-1.5 Tons |
| Cutting Chamber: |
742-1200 |
Product Description
Dura-shred tire recycling machine Granulator (TSQ2147X)

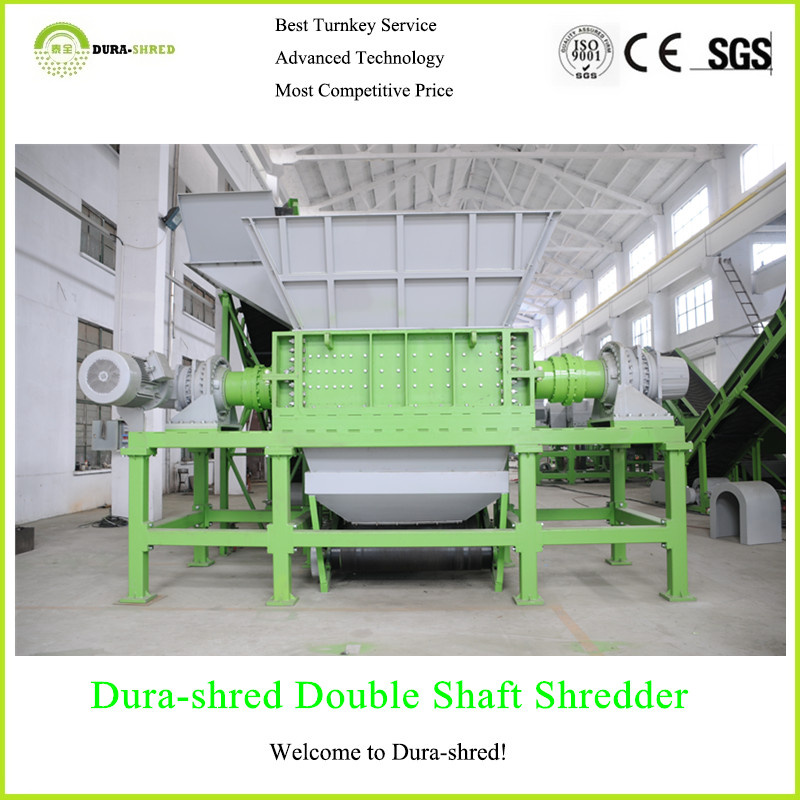

Double Shaft Shredder --brief introduction
Double Shaft Shredder Specification (please see below introduction)
Dura-Shred's two shaft shredders are designed with an aggressive low RPM, high torque shredding technology. The shredder blade thickness ranges from 25 mm to 152 mm (1"-6") depending on the type of tires, throughput, and desired end product. The biggest shredder can process different kind of tires, metal, plastic, wood etc., the biggest capacity can be up to 20 Ton/h.
We design our shredders based on the following applications
Tires
Wood
Plastics
Municipal Solid Waste
Non-ferrous Materials
Aluminum
Paper
Hazardous Waste
PCB Capacitors
Bulky Waste
Low RAD Waste
Fiberglass
Construction/Demolition Debris
Cloth - Canvas, Rags, Clothing
Plastic Sheeting, Buckets
Pallets
PVC Pipes & Tubes
TDF tire shredding system introduction
The TDF tire shredding system is designed to produce up to 1.2-2 tons per hour of TDF. Based on the needs of our customers, our TDF systems produce a 25 mm to 152 mm rubber chip, which is used as a coal additive for industrial boilers. Many of these facilities are turning to TDF because it burns hotter and cleaner than coal and is more cost effective.
Our company's introduction
Dura-Shred has been designing and manufacturing equipment for the recycling industry since 2001 and is emerging as a leader in providing cost effective turnkey recycling systems.
We have manufactured and installed recycling systems in countries all over the world, including the US(Miami), Italy, Japan, Canada, Mexico, South America, South Africa, Kazakhstan, India, Venezurla, Ecuador, Bolivia, Peru, Chile, Argentina , Columbia etc.
Our production plant is located in Wuxi, China with headquarters in Shanghai, China. We have a modernized factory with an experienced professional work force.
Why Choose Dura Shred?
---- Exclusive Control System-Controls and operates the entire plant from its centrally located position and provides instant visibility to what each machine is doing in real time.
----Unique Stop/Auto Reversal Feature-Protects against overfeeding and damage by non-process able items.
----Advanced Bearing Housing-Isolates bearings from cutting chamber contamination and protects against bearing failure.
---- Premier Full Turn Key Systems-Plant is manufactured, shipped, installed and ready to start recycling.
----Warranty-one of the best warrantees in the industry.
----Proven Design and Technology.
----A quality system with at an affordable price!
----Fully Automated via 1 centrally located touch screen control panel.
If you have any questions about our Dura-shred tire recycling machine Granulator (TSQ2147X), please Contact me / Visit our company without hesitation.
Contact me
Byron Liu
Tel: +86 18301911897
Fax: +86 021 60853579
Web: www.tqwinner.com
Wuxi Dura Shred Recycling Technologies Co., Ltd.( ISO, CE)| Granulator | TSQ2174X | TSQ 1740X | TSQ1732X |
| Motor Specifications | Electric | Electric | Electric |
| Number of Motors | 1 | 1 | 1 |
| HP/KW | 90kw | 45kw | 37kw |
| Vlotage | as per customer request | as per customer request | as per customer request |
| Cutting Chamber L×W | 742×1200 | 580×1000 | 580×800 |
| Equipment Dimensions L×W×H | 2150×2250×2950 | 1765×1900×2435 | 1765×1600×2435 |
| Equipment Weight | 5600kg | 3300kg | 2950kg |
| Hopper Opening L×W×H | 895×1434×1160 | 602×994×916 | 602×794×916 |
| Capacity | 800-1500Kg/hr | 500-800Kg/hr | 300-500Kg/hr |
| Product Size Range | 8-1mm | 8-1mm | 8-1mm |
Dura-Shred has been designing and manufacturing equipment for the recycling industry since 2001 and is emerging as a leader in providing cost effective turnkey tire recycling systems. Our main focus is to provide custom designed tire recycling systems that deliver optimum production for a variety of applications such as TDF (Tire Derived Fuel), rubber mulch, and crumb rubber. We have manufactured and installed recycling systems in countries all over the world, including the US, Mexico, Poland, South America, South Africa, and Kazakhstan etc. These systems are specifically designed and tailored to fit the diverse needs of our global customers.
Our production plant is located in Wuxi, China with headquarters in Shanghai, China. We have a modernized factory with an experienced professional work force. Our management team comprises of multi-culture and bi-lingual professionals fluent in English, Spanish, and Mandarin Chinese. Dura-Shred has a turnkey service that allows us to export to all major international ports.
Dura-Shred's mission is to provide our customers with cost effective turnkey recycling equipment. We accomplished this by establishing our own production and assembly facility in China using proven American and European tire shredding technologies.
Advantage of the System
Exclusive Control System - Controls and operates the entire plant from its centrally located position and provides instant visibility to what each machine is doing in real time.
Unique Stop/Auto Reversal Feature - Protects against overfeeding and damage by non-processable items.
Premier Full Turn Key Systems - Plant is manufactured, shipped, installed and ready to start recycling.
Warranty - one of the best warrantees in the industry.
Dura-shred main equipments:
Double Shaft Shredder
Dura-Shred's two shaft shredders are designed with an aggressive low RPM, high torque shredding technology. The shredder blade thickness ranges from 25 mm to 152 mm (1"-6") depending on the type of tires, throughput, and desired end product. The biggest shredder can process OTR tires, large truck tires, and car tires at a rate of up to 20 tons per hour.
Grater
The Grater is the ultimate machine for MID-stream grinding and steel separation. It is specifically designed to take pre-shredded tires chips and produce between 10-30mm wire free rubber chip. The Grater and can process up to 6 tons of input per hour. The main rotor housing is equipped with replaceable wear plates to increase the durability and longevity of the cutting chamber. Another unique feature of this machine is the ability to turn the knives once before having to send them to be sharpened or replaced, minimizing operating costs.
Granulator
The Granulators are designed to grind the rubber mulch from the Grater into small granules as fine as 10 mesh. The granules are screened and re-circulated until the desired size is reached. Due to the design of the our granulator and precise alignment of the blades, this Granulator produces a very uniform cut, high quality granule. During the granulation process, 99% of the fiber is removed, leaving a contaminant free crumb rubber granulate ready to be further processed or sold.
Miller
Dura-shred's miller is designed for rubber material where a powdered products is required. Granules of size 1-8 is fed via feeder to the rotating high speed serrated disk to produce a powder product in the required 30-120mesh range and where the final size is determined by adjustable centrifugal screen.
Dura-shred is looking forward to cooperating with you!
