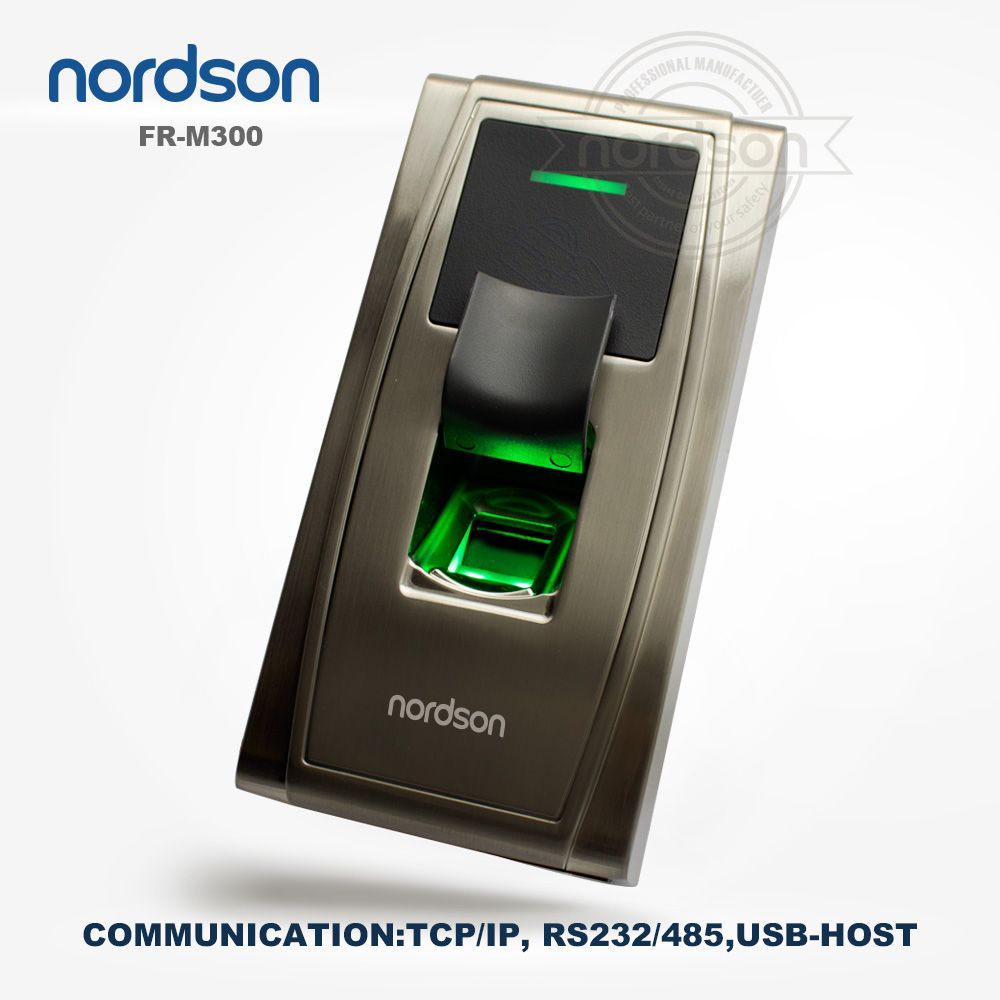

Dust proof Fingerprint cover access control device ( M300 )
Specification:
1. stainless steel, waterproof, IP65;
2. 1500 Templates fingerprint, 10,000 pcs RFID card capacity;
3. finger sensor cover standard;
4. RS485, TCP/IP, USB-host ;
5. Wiegand Signal input & output
Introduction:
MA300 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The MA300 features the fastest commercial-based fingerprint matching algorithm and high-performance, high-image quality optical fingerprint sensor.
The device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. The user can be enrolled by administrator card when the device works as a standalone access control. TCP/IP and RS485 are available that the device can be used in different network. TCP/IP communication makes sure the data transition between the device and the PC can be easily done within several seconds.
MA300 can be used in tough environment because of the IP54 protection index and the wide range of operating temperature.
Features:
? Fingerprint reader with durable and highly accurate optical sensor.
? 1 touch a-second user recognition.
? Stores 1,500 templates, 10,000 cards and 30,000 transactions.
? Reads Fingerprint and/or Card.
? Optional integrated smart card reader.
? Built-in Serial and Ethernet ports.
? Tamper-proofs switch and alarm outputs.
? Request-to-exit and alarm contacts.
? Real-time 1-touch data export 3rd party hosted & non-hosted applications.
? Audio-Visual indications for acceptance and rejection of valid/invalid fingers.
Specifications:
Fingerprint Capacity |
1500 Templates |
ID Card Capacity |
10,000 pcs. |
Transaction Capacity |
100,000 pcs. |
Hardware Platform |
ZEM710 |
Sensor |
Optical Sensor |
Communication |
RS485, TCP/IP, USB-host |
Access Control Interface for |
3rd party electric lock, door sensor, exit button, alarm |
Wiegand Signal |
Input & Output |
Stardard Access Control Function |
Time Zone, Group, Multi-identification, Duress mode, Anti- passback |
Optional Functions |
IC Card Reading, external USB keypad |
Display |
N/A |
Power Supply |
12V DC |
Operating Temperature |
-10 ºC ~ 60 ºC |
Operating Humidity |
10% ~ 90% |
Index of Protection |
IP54 |
