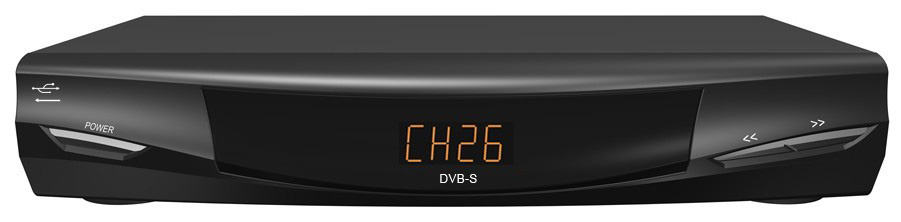

Product Specifications
| Prod Model: |
MSD 7816 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
TV Front-end Equipment |
Product Description
Solution: MSTAR 7816
1 Fully HD MPEG4/H. 264 DVB-T2 & DVB-T compliant
2 Support PVR function via USB2.0 & multimedia playback& time-shift function.
3 Support AC3, AAC, HE-AAC(optional)
4 Video resolution: 1080P, 1080I, 720p, 576p, 576I
5 OSD language: English and other languages as per request
6 Variable aspect ratio: Auto, 16: 9 Pillar box, 4: 3 Pan and Scan, 4: 3 Letter Box
7 Fully support 7-day Electronic Program Guide (EPG)
8 Auto/manual channel search
9 Favorite channel edit & parental lock function
10 Support teletext/subtitle/audio language selection
11 PAL/NTSC auto-conversion
12 Capacity for storing up to 1000 channels
13 Easy and fast software upgrade via USB port
14 Outputs: HDMI1.3, SCART(optional), RCA-V/L/R, S/PDIF(Coaxial), USB2.0(optional)
Specifications:
TUNER:
Receiving frequency range:
VHF: 174MHz to 230MHz
UHF: 470MHz to 862MHz
Input signal level: -75~-20dBm
Input impedance: 75Ω
DE-MODULATION
IF bandwidth: 7/8MHz
Video demodulation: COFDM
Transmission mode: 2K FFT, 8K FFT
Constellations: QPSK, 16QAM, 64QAM
Code rate: 1/2, 2/3, 3/4, 5/6, 7/8
Guards intervals: 1/4, 1/8, 1/16, 1/32
PROCESSOR AND MEMORY
CPU: MSD7816
VIDEO & AUDIO DECODING
MPEG2 MP@ ML & MPEG4 AVC/H. 264
[email protected]
Video resolution: 1080P, 1080I, 720p, 576p, 576I
Teletext: Support DVB-TXTETSI/EN300472
Audio decode: AC3, AAC, HE-AAC(optional)
Audio track: Mono, Dual-channel, Stereo
Audio sampling rate: 32, 44.1, 48kHz
REAR PANEL
Input voltage: AC100~240V, 50/ 60Hz
RF input connector: IEC 169-2 Female
RF loop through Connector: IEC 169-2 Male
HDMI1.3 X1
Single/dual SCART port (optional)
A/V outputs: Composite X1, L/R X1 (optional)
Coaxial X1
FRONT PANEL
IR Receiver: 38kHz
2 LED indicators: Signal Lock, Power
4-digit LED indicates channel number and time (optional)
USB2.0 port X1(on the side)
RCU
Category: IR (Carrier 38 kHz)
Battery: 2 X 1.5V AAA
ACCESSORIES
Remote control / User manual / Battery/AV Cable(optional)
POWER SUPPLY
Input voltage: AC100~240V, 50/60Hz
Power consumption: MAX 20W
Standby power: MAX 1W
AMBIENT
Operating temperature: 5~ 40
Storage temperature: -20~ 70.
|
Packing Info |
|
Unit Size (WxHxL) |
146x45x220mm |
|
Unit Weight(N. W. ) |
0.62kg |
|
Qty per Giftbox |
1pc |
|
Giftbox Size: (WxHxL) |
213x48x240mm |
|
Giftbox Packing: (G. W. ) |
0.85kg |
|
Qty per Export Carton |
12pcs |
|
Export carton (WxHxL) |
320x240x495mm |
|
Export carton (G. W. ) |
10.7kg |
|
Units per 20" /40" /40" HQ |
9000/19000/22500pcs |
