Product Specifications
| Prod Model: |
SUPERPOWER 900W-M |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
TV Front-end Equipment |
| Certification: |
ISO |
| Condition: |
New |
| Function: |
Modulator |
Product Description

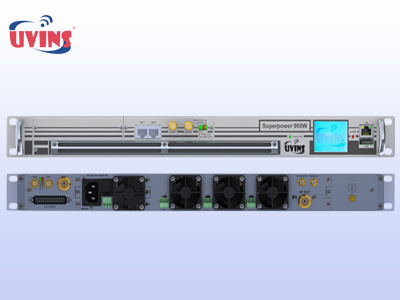

SuperPower 900W-M combines a complete transmitter with output power up to 130W rms or 220W p.s. and multiple input interfaces in a single 1U19"rack chassis. Supporting DVB-T/H/T2, ISDB-T/Tb, DAB/DAB+/ T-DMB, ATSC, PAL and NTSC modulations (dual-cast Analog and Digital is also supported), It also offers adaptive pre-correction circuits and built in GPS / GLONASS receiver for accurate synchronization and SFN operations. Whether you need a Terrestrial or Satellite fed transmitter, an on channel repeater, a re- transmitter or even a transposer, then SuperPower 900W-M is the required solution as it can be equipped and configured with different input interfaces (Satellite Receiver, ASI, Gigabit Ethernet or RF). Gap-filling operation is made possible by a powerful echo-canceller and, if necessary, by an additional high performance cancellation circuit. For the South American ISDB-Tb market, SuperPower 900W-M is today the only solution in the market combining Satellite Receiver, Re-Multiplexer/Layer Combiner/TS to BTS (188 to 204 byte) converter and up to 130W Transmitter in a single 1U box19"rack.
Feature
> Compact 1U19"Rack chassis
> Output Power up to 130W rms in digital or up to 220W p.s. in analogue
> High efficiency broadband amplifier technology
> DVB-T/H/T2, ISDB-T/Tb, DAB/DAB+/T-DMB, ATSC, PAL, NTSC modulations fully supported
> Embedded Re-Multiplexer/Layer Combiner/TS to BTS (188 to 204 byte) converter for ISDB-Tb
> Adaptive pre-correction circuits
> Powerful echo canceller when OneDriver is used as an on-channel repeater
> Optional high-performance additional echo cancellation circuit
> On-board high stability GPS / GLONASS receiver with battery
> Flexible input interfaces:
> 4 x ASI inputs (TS, BTS, T2MI, SMPTE-310M) + Analog input
> 2 x ASI inputs and 2 x Gigabit Ethernet
> 1 x DVB-S/S2 Satellite Receiver input
> 1 x RF input ? SNMP, Web Interface and Touch Screen display
