Product Specifications
| Prod Model: |
SW201D, SW401D, SW801D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Appearance: |
Steel Casing |
| Port Number: |
2/4/8 Ports |
| Mian Port Style: |
DVI/HDMI |
| Attach: |
USB Port |
| Country Of Origin: |
Shenzhen, China |
| Brand: |
Dylink |
Product Description

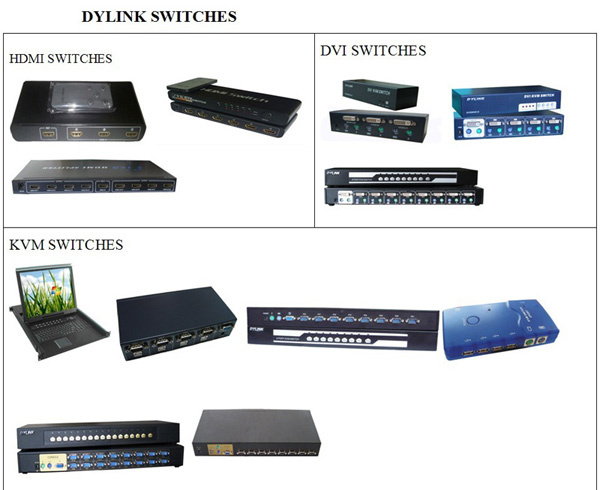

DVI SWITCHES
Model Number:
SW201D
SW401D
SW801D
Features
1. Allows you to share one DVI monitor, PS/2 mouse, and PS/2 keyboard between multiple PCS
2. Supports PS/2 keyboards and mice, including M/S Intellimouse® , Intellimouse Explorer® And Netmouse®
3. Supports high resolution of up to 1920x1200
4. Add PCS or Remove Connected PCS for Maintenance without powering down the PC
5. Keyboard and mouse emulation - computers boot even when the console focus is elsewhere
6. Power on detection - automatically switches to the first powered on port
7. Caps Lock, Num Lock and Scroll Lock status are saved and restored when switching
8. LED display for easy status monitoring
9. Front panel push button and hotkey commands for easy computer selection
10. Supports keyboard and mouse plug-n-play
11. Operating system independent, compatible with all operating systems
11. Support auto scan function
12. No software required
13. Non-powered
HDMI SWITCH:
Model Number:
SW301H
SW501H
Features:
1. Switches between different HDMI sources for display on an HDTV or monitor
2. HD DVD and Blu-ray DVD player compatible
3. Maintains high-definition resolutions up to 1080p (or 1920x1200 for computer monitors)
4. Support up to 1080p/60Hz deep color 30bit /36bit
5. Support Blue-Ray 24/50/60fs/HD-DVD/xcYCC
6. Digital format asDTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dol
7. Support signal retiming
8. Inputs can be switched with the IR remote control, also can be controlled by four buttons
9. It can smartly jump over those input sources which are not connected
10. With the smart function of memory, it can come back to the latest status when restarted or reconnected
Description:
Video Amplifier Bandwidth 1.65 GHz
Single Link Range 1080p / 1920 x 1200
DVI Input/Output Connector Type HDMI A type
Cable Distance (Device to Monitor) 15 m (Max. )
Video Input Connector (HDMI Female) SW301H: 3
SW501H: 5
Video Output Connector (HDMI Female) 1
LED Indicators 1 x Power
Power Supply 12V/2A DC
Power Consumption 15 w(max)
Dimensions(W x H x D) SW501H: 67mm*27mm*180
|
User Ports |
1 |
|
Computer Ports |
SW201D: 2 SW401D: 4
SW801D: 8 |
|
Port Select |
Push Button or Hot Key |
|
LEDs |
SW201D: 2 SW401D: 4
SW801D: 9 |
ConsolePortConnectors
|
1 PS/2 keyboard mini_din 6pin(female);
1 PS/2 mouse mini_din 6pin(female);
1 - DVI-I Single Link Female; |
PC Port Connectors
|
SW201D:
2 PS/2 keyboard mini_din 6pin(female);
2 PS/2 mouse mini_din 6pin(female);
2 - DVI-I Single Link Female;
SW401D:
4 PS/2 keyboard mini_din 6pin(female);
4 PS/2 mouse mini_din 6pin(female);
4 - DVI-I Single Link Female;
SW801D:
8 PS/2 keyboard mini_din 6pin(female);
8 PS/2 mouse mini_din 6pin(female);
8 - DVI-I Single Link Female; |
|
Scan Interval |
10 seconds |
|
Power |
Non-powered |
|
VGA Resolution |
1920 x 1200, DDC2B |
