Product Specifications
| Prod Model: |
M1607BCR+D19 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Screen Size: |
7" |
| Horizontal Resolution: |
More Than 480 Tvl |
| Connection: |
4 Wires |
| Maximum Length Of Line Connection: |
to 100 |
| Video Channels Quantity: |
2 Doorbells+2 CCTV |
| Additional Monitors Quantity: |
up to 3 |
| Memory Block Connection: |
Built in Card-Reader for SD Card |
| Image Capture: |
Yes |
| DVR: |
Yes |
| Voice Message: |
Yes |
Product Description

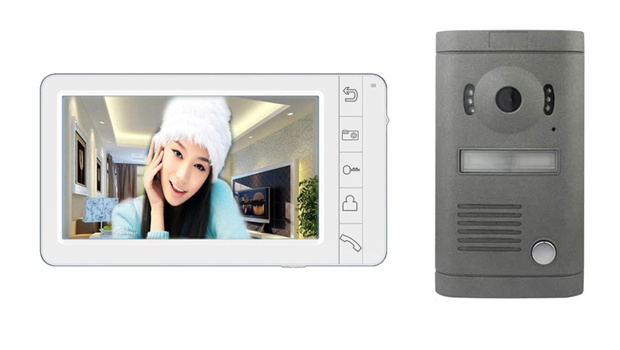

7"LCD Color Video Door Phone
Handset villa video door phone
Support 4 wires connection
Support Maximum length of line connection to 100
Simple DVR function with motion detection
Auto leaving message
Video & audio recording
Picture taking with internal flash or SD card
Multimedia function: Photo frame, music playing
Brightness, contrast and color adjustable
Alarm clock and calendar
Real-time monitoring to doorbell or CCTV camera
Make internal call to other monitors
Lock control
Feature:
1.4-wire, 7'' color digital LCD(touch screen)
2. Support lock control
3.1/4'' color CCD camera
4. Max support 4 indoor monitors+ 1 outdoor panel+9 CCTV cameras
Detail Description:
Indoor monitor
Indoor monitor
1. Intercom function
2. Door monitoring function
3. Lock control
4. Optional volume adjustment
5. Appropriate color, contrast and brightness
6. Don't disturb choice
7. Visitor-call transfer
8. Indoor monitor listening function.
9. Image format convert 16: 9 to 4: 3
10. Make broadcast
11. Video and audio recording
12. Multimedia manager
13. Picture capture
14. Mechanical key
15. TFT resolution: 800x480
Outdoor panel
1. Metal case
2. High-quality circuit for clear voice
3. Electric-controlled lock release
4. Surface
5. Night Vision& Waterproof
Specification:
Indoor monitor
Display screen: 7'' color digital LCD (touch screen)
Resolution: >480TV lines
Power Supply: DC 15V 1A
Video input: 75omh, 1Vp-p, CCIR standard
Power consumption: 2.6W ~9 w
Wiring mode: 4 wires, polar
Dimension: 22019679mm
Video channels: 4
Outdoor panel
Subscribers quantity: 1
Camera CCD: 1/4' CCD
Construction: Surface
Operating temperature: - 20 C~+ 60 C
Connection: 4 wires
Lock control: Yes
Power: 10V-14V
Dimension: 179× 104× 55mm
Support Solution:
Solution: 1 doorbell + 4 monitors+9 CCTV Camera
2 doorbell + 4 monitors+8 CCTV Camera
|
Model |
M1607BCR |
|
Screen |
color digital LCD |
|
Screen size |
7' ' |
|
Horizontal resolution |
more than 400TVL |
|
Connection |
4 wires |
|
Maximum length of line connection |
to 100m |
|
Video channels quantity |
2 doorbells+2 CCTV |
|
Additional monitors quantity |
Up to 3 |
|
Memory block connection |
Built in card-reader for SD card |
|
Image capture |
Yes |
|
Video and audio capture |
Yes |
|
Lock control |
Yes |
|
Power |
AD100-240V |
|
Power consumption |
9W/2.3W |
|
Key types |
Touch keys |
|
Dimension |
260x195x35mm |
