Guangzhou Tengsheng Audio Equipment Co., Ltd. >> Dw-10 Single 10 Inches 2-Way Audio DJ System

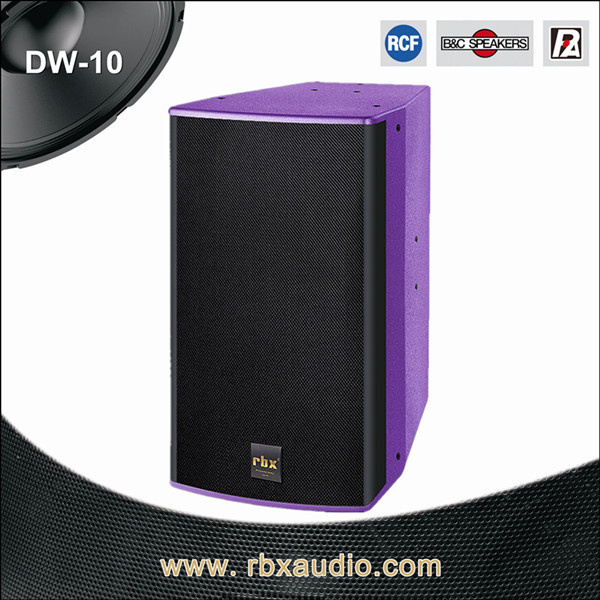

Dw-10 Single 10 Inches 2-Way Audio DJ System

Name: Dw-10 Single 10 Inches 2-Way Audio DJ System
Brand: china-manufacturer-directory.com
SKU: 701851912
Availability: InStock
Rating: 4.4 (84 reviews)

Supplier:	Guangzhou Tengsheng Audio Equipment Co., Ltd.
Price:	US $ 300-550/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	DW-10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	2-Way Full Range PRO Audio
Crossover:	Asymmetric Internal Passive Crossover
Lf Component:	NdFeB 110mm Magnet with Aluminum Frame
Hf Component:	B&C 120mm Magnet
Size Options:	10", 12"
Installing:	Hanging, Pole Mount, Stand, Lying Down
Diaphragm:	Paper
Capacitor:	Solen
Clients' Logo:	Acceptable
Warranty:	3 Years
Hi-Fi:	Not Hi-Fi
Operation Mode:	Wire / Remote Control
Speaker System:	Optional Combination
Speaker Material:	Wood
Application:	Entertainment Venue
Certification:	CCC
Noise:	Nun
Monitor:	Nun
THD:	<0.05%

Product Description

Features:

a. Bass reflex design on the back;

b. Imported multilayer birch plywood;

c. Reinforcing wood bar inside;

d. B&C HF loudspeaker

e. Nd-Fe-B LF loudspeaker;

f. Wide frequency, rich and strong bass, mellow and thick alto.

1.Description:

DW-10 is a two-way full-range speaker designed specifically for high-end clubs. The box uses a bass reflex design on the back, we apply several sheets of imported multilayer birch plywood. To enhance its stability and decrease the resonance, reinforcing wood bars are applied inside.

DW-10 is equipped with a 10" LF Nd-Fe-B precise driver and a 1" B&C HF precise compression driver. When you use it, you will feel a a wide frequency. Also, you can feel a deep, rich and strong bass and a mellow alto.

2. Application:
It can be used as a PA Speaker in night club.

3. Technical data:

Model	DW-10 single 10 inches 2-way Audio DJ system
Drivers	LF: 1×10"voice-coil: 2"
Drivers	HF: 1×1"voice-coil: 1.7"
Frequency(±3dB)	50HZ-20KHZ(±3dB)
Dispersion(-6dB)	Hor:90° × Vert:60°
Sensitivity(1m/1W)	97dB
Maximum SPL	122dB Continuous/128dB Peak
Nominal Impedance	8 Ohms
Input power	Rate: 250W/Peak: 1000W
Recommend AMP	600W to 1000W into 8 Ohms
Connectors	2 × Speakon NL4MP
Dimensions	525 × 300 × 350mm (H × W × D)
Master carton	595 × 360 × 400 (H × W × D)
Net Weight	16Kg
Gross Weight	18.5Kg

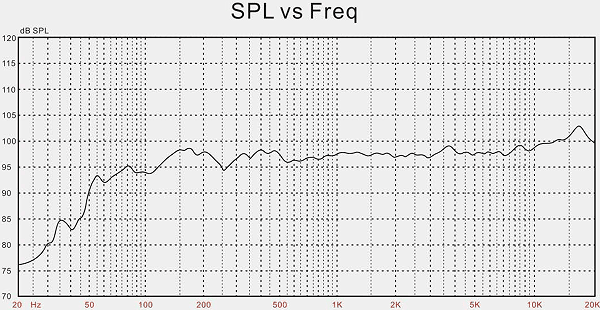

4. Frequency response:

5. Construction:

Physical	Polygonal
Enclosure	Imported multilayer birch plywood
Grille	Die-casting steel net with circular hole, black sponge inside
Paint	Polyester coatings (whose color can be customized.)
Handing Position	M8 screw of installation holes (18 pcs)
Pole Mount	Bottom: Φ35mm support base

6. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. Please kindly keep it away from dust and the strong magnetic field.
c. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.

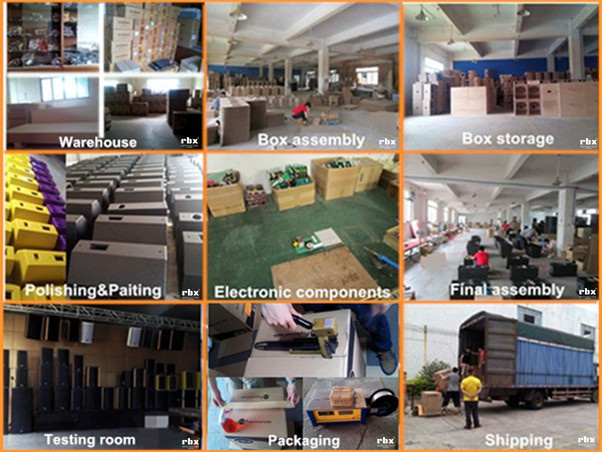

7. Company View:

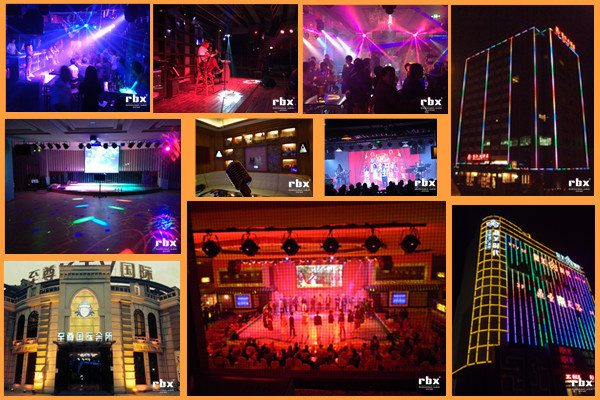

8. Our Projects:

Guangzhou Tengsheng Audio Equipment Co., Ltd. is located in Huashan Town, Baiyun District, Guangzhou City, covers an area of 5, 000 square meters. Our company is closed to GUANGZHOU BAIYUN Airport, the transportation is convenient. We've been devoteing ourselves to the R&D, manufacturing and marketing of high-quality professional audio system.

During the passed years, We've owned a team of highly qualified engineers and sales. We've been always developing new products according to the market trends and the feedback from our clients, which gain much praise and trust. Besides products, we provide audio system solution also. We always take the pursuit of win-win situation between our clients and us.

Our company owns a serial of automated production equipments and quality management system basing on international standards, both of these help us to keep making progress. Excellent quality dates from pursuit of every aspect, and, customer satisfaction comes from sincere service. We'll listen to the voice of the world, and create perfect audio system.
