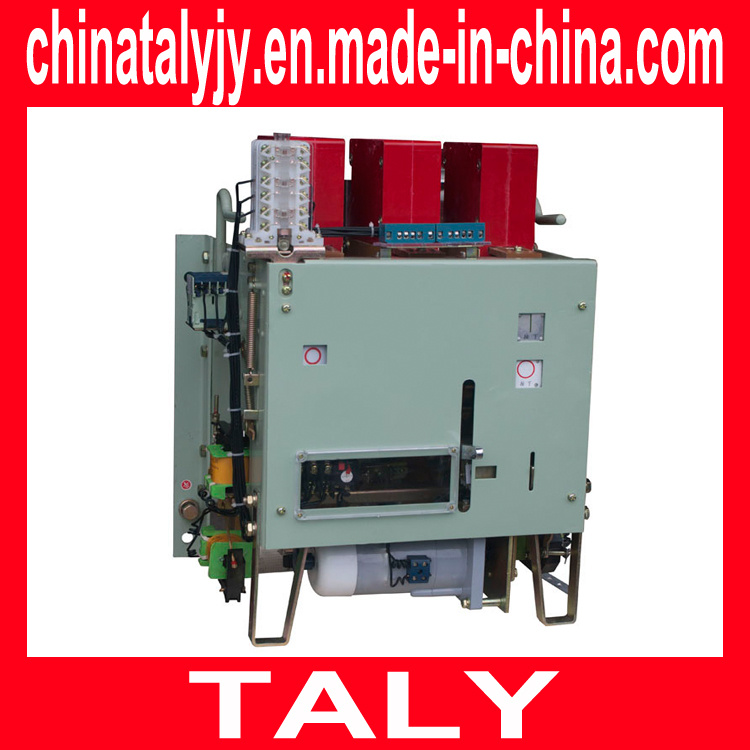

Dw15 Series All-Purpose Type Circuit Breaker
Product Specifications
| Prod Model: |
DW15 |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
AC50Hz |
| Rated Voltage: |
380V |
| Rated Current: |
100A to 4000A |
| Type: |
Motor Magnetic Type |
| Arc-extinguishing Medium: |
Air |
| Structure: |
ACB |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CCC |
| Operation: |
Electric Type |
| Installation: |
Open Frame |
| Speed: |
Normal Type Circuit Breaker |
Product Description
DW15 Series intellect type universal circuit breaker is used for controlling and protect low voltage distribution network...
DW15 Series intellect type universal circuit breaker
DW15 Series intellect type universal circuit breaker is used for controlling and protect low voltage distribution network. It usually installs in the low voltage distribution cabinet as the main switch for the main protection, the technique performance has reached the same type products in advanced standard of international.
We also produce many various of air circuit breaker.
Welcome to contact with us if you are interested in. We are looking forward to starting the cooperation with you
Contact:
Tel: +86-577-57189983
Mobile Phone: +86-13616776676
Fax: +86-577-62713637
|
Rated current of frame Inm |
|
630 |
|
1000 |
1600 |
2500 |
4000 |
|
(A) |
200 |
400 |
630 |
1000 |
1600 |
2500 |
4000 |
|
Conventional thermal current Ith(A) |
3 |
3 |
3 |
3 |
3 |
3 |
3 |
|
Rated current of breaker In(A) |
A hot electromagnetism type |
100 160
200 |
315 400 |
315 400
630 |
630 800
1000 |
1600 |
1600 2000
2500 |
2500 3000
4000 |
|
Electronic type |
100 200 |
200 400 |
315 400
630 |
630 800
1000 |
1600 |
1600 2000
2500 |
2500 3000
4000 |
|
Rated capacity of short circuit breaker(kA) |
AC 380V |
20 |
30 |
30 |
40 |
40 |
60 |
80 |
|
AC 660V |
|
25 |
25 |
|
|
|
|
|
AC 1140V |
|
12 |
12 |
|
|
|
|
|
Rated short time current(kA) |
8 |
12.6 |
12.6 |
30 |
30 |
40 |
60 |
|
time about rated short time current (S) |
0.2 |
0.2 |
0.2 |
0.5 |
0.5 |
0.5 |
0.5 |
|
mechanical endurance of breaker |
10000 |
10000 |
10000 |
5000 |
5000 |
5000 |
5000 |
|
electrical endurance(1In,1Ue)(times) |
1000 |
1000 |
1000 |
500 |
500 |
500 |
500 |
|
AC380V Protection electrical enduranceAC-3(times) |
2000 |
2000 |
2000 |
|
|
|
|
|
frequency of operation |
60 |
60 |
60 |
20 |
20 |
20 |
20 |
|
Fly arcly Distance (mm) |
280 |
280 |
280 |
350 |
350 |
350 |
350 |
|
arm of force operation (mm) |
90 |
90 |
90 |
250 |
250 |
250 |
250 |
|
operation force(N) |
200 |
200 |
200 |
350 |
350 |
350 |
350 |
The company is a professional manufacturer of low-voltage electrical components, power automation equipment, electrical construction oriented electrical manufacturing companies, but it is also a collection of scientific research, commerce and trade as one integrated enterprise. The national water system network, identified as "networks" of recommended by the State Economic and Trade Commission.
Over the years the company, through constant practice, innovation, effort, enterprise achieved rapid development. The company's existing high-, MID-level engineers and technicians 31 people, 816 employees, supporting assist 126 enterprises; same time, the company has established a marketing network outside by point to the surface, China to over 300 domestic sales outlets now. The products are widely used in power plants, banks, hospitals, hotels, chemical, military, factories and other infrastructure, buildings and residential areas.
Company's major series specifications of the products have passed the national CCC certification, while continuing to deepen the quality of management, and actively with the international standards, the full implementation of ISO9001 international quality system certification, and passed the quality system certification, some products made UL, EC body CE certificate, the product is well received by domestic and foreign users.
To face the challenges of the new century, the company will continue to carry forward the "advocate science, sticking to integrity and pragmatic, harmonious development" spirit of enterprise, is committed to the construction of "science and technology enterprises" TELI Foundation became a powerful cultural cohesion and brand influence modern enterprise.
