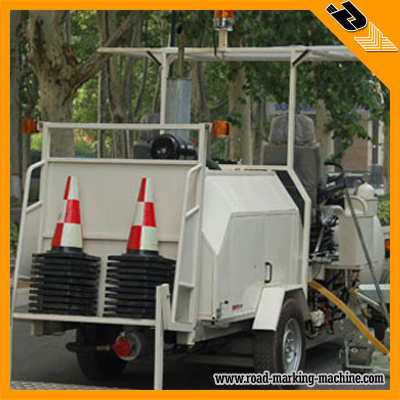

The two component road marking machine can be divided into marking vehicle, driving type and self-propelled type according to different degree of automation, functional configuration, construction quality and efficiency.
Different between I, II, III Road Marking Machine
1. Marking shoe I: The upper part is equipped with automatic stirrer filled with paint and hardener.
2. Marking shoe II:
The upper part is equipped with automatic stirrer filled with paint and hardener while the
Lower part equipped with acentric shaft with special treatments.
3. Marking shoe III: Equipped with four new-type air-operated spray guns, one hand spray gun with an extension pipe.
Parameter of DY-BSTCI/II/III Road Marking Machine
No. |
Item |
Specs |
1 |
Engine |
Imported 42HP water-cooled electrical starting diesel engine with four-cylinder in line. |
2 |
Driving System |
Imported oil pressurized continuously variable speed transmission system. |
3 |
Driving System |
0-20km/h |
4 |
Standard Component (I) |
100mm and 400mm. |
5 |
Standard Component (II) |
100mm and 400mm. |
6 |
Standard Component (III) |
100-1000mm. |
7 |
Paint tank |
700L +100L |
8 |
Glass beads Bin |
100L |
9 |
Lighting and warning function |
Equipped highlight light marking the night marking operation more convenient. |
10 |
Micro-electronic control system |
There are many marking standard control methods in the system. |
11 |
Size |
5000 x 1600 x 1650mm |
12 |
Weight |
2500kg |
