Dynamic Balancing Machine for Crankshaft (PHQ-50)

Name: Dynamic Balancing Machine for Crankshaft (PHQ-50)
Brand: China-Manufacturer-Directory.com
SKU: 672686742
Availability: InStock
Rating: 4.4 (116 reviews)

Supplier:	Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd.
Price:	US $ 1000-10000/Piece
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CIF,others

Product Specifications

Prod Model:	PHQ-50
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Length:	1100 Mm
Width:	950 Mm
Height:	1350 Mm
Gross Weight:	450 Kg
Place Of Origin:	Shanghai, China
Brand Name:	Jp
Type:	Vibration Testing Machine
Weight:	100-500Kg
Power Source:	AC380V

Product Description

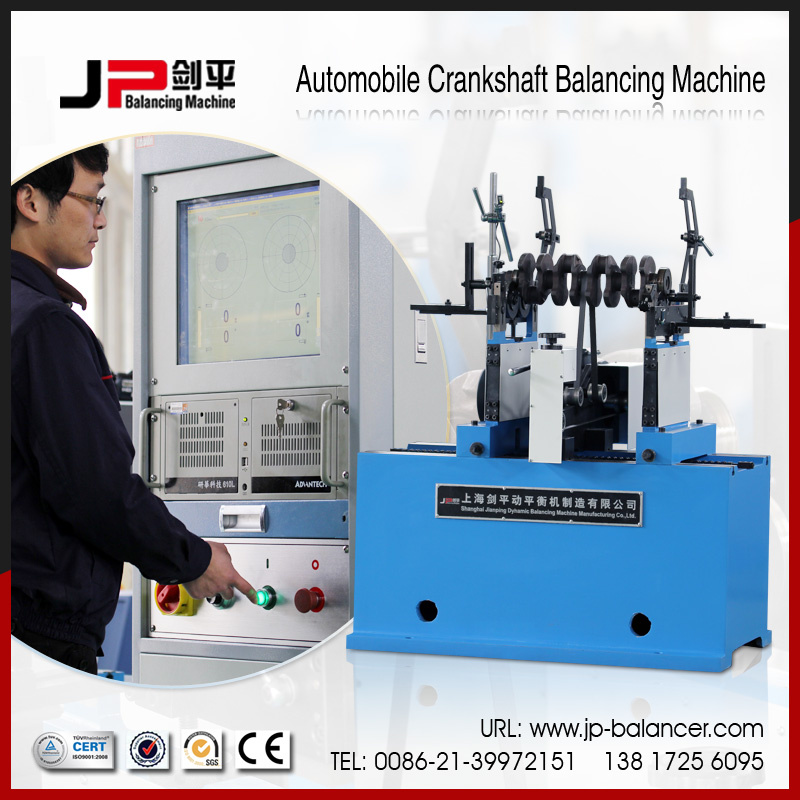

Dynamic Balancing Machine for Crankshaft(PHQ-50)

Production Description:

1) Specially designed brackets transmit mechanical force with low vibration damping
2) Durable and reliable sensor possesses good linearity
3) Permanent calibration brings high accuracy with a permission of large initial unbalance amount
4) Belt-driving offers higher precision and easier operation
5) Advanced electrical measuring system and friendly man-machine interface
6) Modular design offers a wide range of application

Special Features:

The measuring unit employs JP-580 Electrical Measuring unit is a system of top function and precision. It can be applied in all kinds of single/double plate and hard/soft bearing machines, and can be connected with different velocity and pressure sensors easily. The unit adopts industrial computer made in Yanhua Industry Co, which equiped with 17-inch LCD screen and Windows XP Operating System. Featuring with high running speed and reliabilitystrong dustproof and shakeproof ability, it is applicable to various industrial environments.

Range of Application:

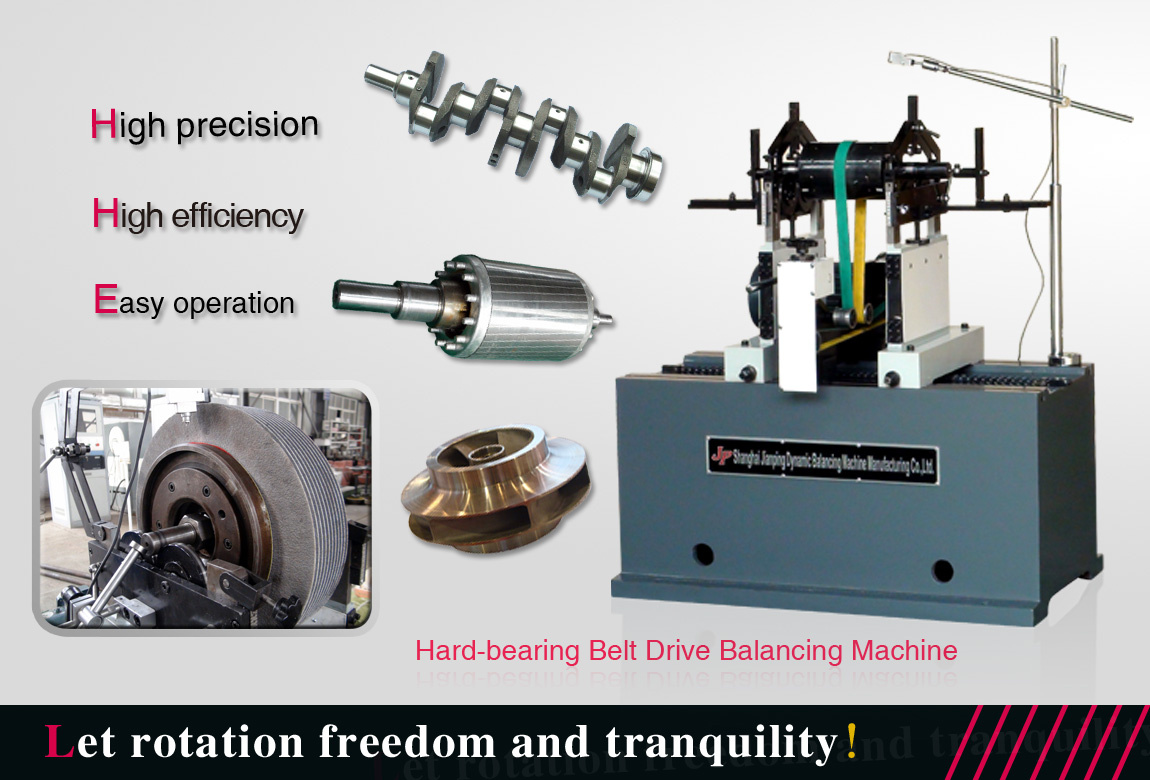

This balancing machine is widely used in balancing rotatable bodies, such as kinds of medium-sized and small-sized motors rotors, impeller, fans, crankshaft, turbocharger, water pump, roller, grinding wheel, main shaft of machine tool , textile machinery, tool , spindle, etc .. Driven by belt, equipped with Variable speed motor to drive .Which ensures high quality balancing and precision. quick booting ,easy operation. and high efficiency

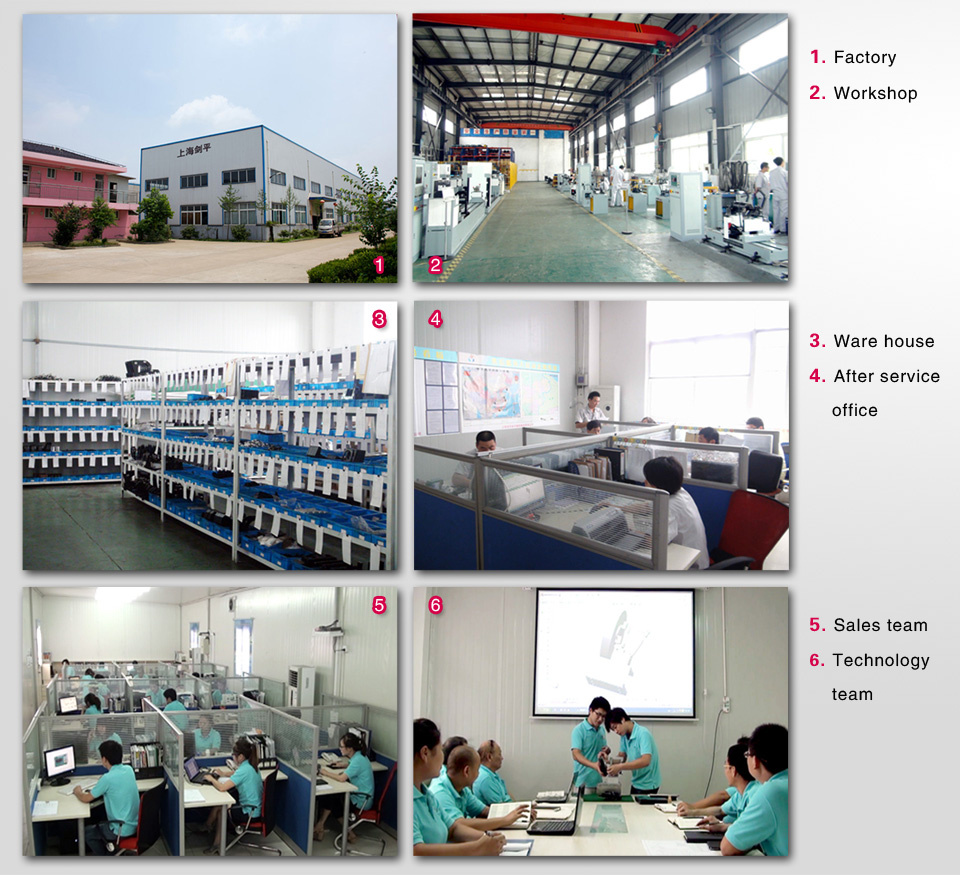

Factory Outlook:

Certificates:

Production Parameters:

Technical data at a glance	PHQ-50
Max Mass of Workpiece (kg)	50
Max Diameter of Workpiece (mm)	700
Distance between Two Support Bearings (mm)	80--700
Journal Diameter Scope of Workpiece (mm)	8~80
Diameter Scope of Driving Belt (mm)	18~200
Rotation Speed when the Diameter of Driving Belt is 100mm (r/min)	700/1050 Stepless speed regulation
Motor Power (kw)	0.75 Frequency conversion
Min Achievable Residual Unbalance Amount (emar)	0.5g. mm/kg

Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. is a professional manufacturer of dynamic balancing machine, which locates in the largest city of China-Shanghai. The high-tech business entity composed of scientific and technical personnel who have devoted to the design, development and manufacturing of balancing machines for many years as well as the backbone elite with abundant experience.

Dynamic balancing machine produced by the company cover horizontal Balancing Machine, vertical Balance Machine, various semi-automatic Balancing Machine, automatic Balance Machine for industrial production flow, special dynamic balancing machine for turbo, main shaft of machine tool, crankshaft of automobile, driving shaft, electric armature, fans, roller, aerospace engine, on-site balance for power factory and station, including automobile, electric, aerospace, turbo, common machinery industries. The products are also batch exported to Occident, Australia, South Africa, Russia, Middle East, Southeast Asia and etc.

Company sticks to a "Human Oriented" management pattern and attaches importance to the selection and cultivation of qualified employees. Outstanding expertise and employee quality guarantees high-quality products. What' S more, good after-sale services and technical support eradicate your fear of trouble in the future when purchasing or using Jp balancing machine. Company has won AUDITED SUPPLIER by SGS-CSTC and passed ISO9001: 2008 authentication of TUV. CE Certificate of Ente Certificazione Macchine

Quality is our fundamental, credibility is our aim, customer satisfaction is our eternal pursuit. Welcome visits, discussions and suggestions as well as inquiries from the new and old customers. Wish to establish a long-term partnership and friendship with clients all over the world
