DYNAMIC HTHP Filtration System:

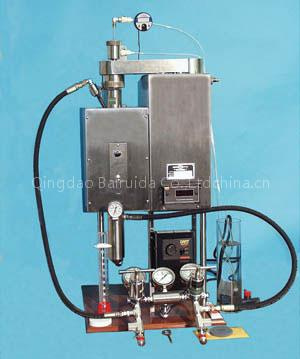

DYNAMIC HPHT® Filtration System - Model 90
The industry's only true dynamic filtration system for conducting filter cake formation and permeability analysis for drilling fluids optimization
Utilizing a wide range of available filter mediums, the DYNAMIC HPHT filtration system can be heated and pressurized to provide the closest possible simulation of down-hole conditions. Several safety features have been designed into the system to protect the user and help ensure reliable test results.
The filter medium is a thick-walled cylinder with rock-like characteristics to simulate the build-up of filter cake on the formation. The filter medium is available in varying porosities and permeabilities to simulate down hole formations.
Filtration occurs radially from the inside of the filter core to the outside. At the same time, the filter cake is formed on the inside of the filter core to simulate filter cake formation on the wall of a borehole. Following completion of a test, the filter cake can be inspected visually. A polished stainless steel shear bob runs through the central axis of the filter core. The shear bob is rotated to produce a concentric cylinder-type shear across the filtration surface.
The LCD display allows monitoring of real-time test results, which are printed for further analysis and filing of test results. The DYNAMIC HPHT filtration system also features an interface port, which allows downloading of ASCII-formatted data to a personal computer. The system is fully automatic with a built-in computer controller.
Through menu-driven software, the user can establish up to 20 sequence steps to program the following testing parameters:
Temperature
Pressure
Differential pressure
Shear rate
For Operational and Safety features, see the Product Brochure.
Ordering Information
Part No. 209113 - Dynamic HPHT Filtration System Model 90
Ceramic Filter Cores
Part Number Porosity - Mean Pore Diameter Permeability - Air
210545 5 micron 750 milli-darcy
210546 10 micron 950 milli-darcy
210547 20 micron 2.8 darcy
213483 35 micron 5.5 darcy
210548 60 micron 6.7 darcy
210549 90 micron 13.5 darcy
210550 150 micron 26.5 darcy
210551 190 micron 75 darcy
Specifications:
Working pressure 2500 psig
Maximum temperature 500° F
Maximum differential pressure 500+ psig
(actual maximum limited by core strength)
Maximum power requirements 1500 watts
Heater power 1200 watts
Power supply 120/240V, 50/60 Hz
Sample volume 250 CC
Filtrate volume 50 CC
Shear bob drive 1/4 HP motor with belted magnetic drive;
No dynamic seals to wear out
Shear rate constant 2693 1/s per rpm (no filter cake)
Initial shear rate range (with standard bob) 9, to 269 1/s
Dimensions 12.5 x 17.75 x 28 in (305 x 455 x 711 mm)
Weight 170 pounds (77 kg)
