| Supplier: | Wuxi Guanya Refrigeration Technology Co., Ltd. |
|---|---|
| Price: | US $ 1000-10000/Set |
| Min Order: | 1/Set |
| Quantity:: | |
| Trade Terms: | FOB |
|
|

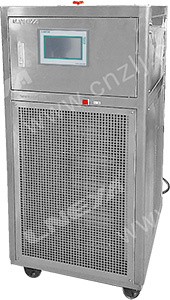

| Prod Model: | SUNDI-525W N |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Heating And Refrigeration Machine: | Heating and Refrigeration Oil Bath |
| Temperature Feedback: | Heat-Conducting Medium: PT100 Raw Material Proc |
| Temp. Accuracy: | 1 Degree |
| Expansion Valve: | Danfoss |
| Oil Separator: | Emerson |
| Evaporator: | Kaori Plate Heat Exchanger |
| Operation Panel: | 7-Inch Color Touch Screen Controller, Temperature C |
| Closed Circulation System: | The Whole System Is Full Closed Circulation, There |
| Refrigerant: | R-404A |
| Optional: | Optional Ethernet Interface, Configure PC Operatin |
| Certification: | CCC |
| Type: | Temperature Controller |
| Usage: | Sundi |
| Control Type: | Mechanical |
| Display Type: | LED |
| Material: | Stainless Steel |
| Brand: | Lneya |
| Model | SUNDI-525W N | SUNDI-535WN | SUNDI-555W SUNDI-555 | SUNDI-575W SUNDI-575 | SUNDI-5A10W SUNDI-5A10 | SUNDI-5A15W | |
| Temperature range ºC | -50ºC~250ºC | -50ºC~250ºC | -50ºC~250ºC | -50ºC~250ºC | -50ºC~250ºC | -50ºC~250ºC | |
| Control Mode | Feed forward PID + Our special dynamic control calculation, PLC controller | ||||||
| Temp. control | Option: process temperature control or jacket oil temperature control | ||||||
| Temp. difference | Set or control the temperature difference between jacket oil and raw material process | ||||||
| Program Editor | 20 programs, each program can edit 45 steps. | ||||||
| Communication protocol | MODBUS RTU Protocol, RS 485 Interface | ||||||
| Temperature feedback | Heat-conducting medium: PT100 Raw material process: PT100 | ||||||
| Temp. accuracy | ±1ºC | ±1ºC | ±1ºC | ±1ºC | ±1ºC | ±1ºC | |
| Heating power | 2500W | 3500W | 5500W | 7500W | 10000W | 15000W | |
| Cooling capacity | 250ºC | 2000W | 3500W | 5500W | 7500W | 10000W | 15000W |
| 100ºC | 2000W | 3500W | 5000W | 7000W | 10000W | 15000W | |
| 20ºC | 2000W | 3500W | 5000W | 7000W | 10000W | 15000W | |
| 0ºC | 1800W | 3000W | 5000W | 7000W | 10000W | 15000W | |
| -20ºC | 850W | 1500W | 2850W | 4200W | 6000W | 11000W | |
| -40ºC | 250W | 450W | 900W | 1500W | 2000W | 3750W | |
| Circulation pump | Max20L/min 2BAR | Max20L/min 2BAR | Max35L/min 2BAR | Max50L/min 2.5BAR | Max50L/min 2.5BAR | Max110L/min 2.5BAR | |
| Compressor | Tecumseh | Copeland | Copeland | Copeland | Copeland | Copeland | |
| Expansion valve | Danfoss | Danfoss | Danfoss | Danfoss | Danfoss | Danfoss | |
| Oil separator | Emerson | Emerson | Emerson | Emerson | Emerson | Emerson | |
| Evaporator | KAORI plate heat exchanger | ||||||
| Operation Panel | 7-inch color touch screen controller,temperature curve record,data export to excel format. | ||||||
| Safety protection | Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device, liquid low level protection, high temperature protection and temperature fault protection. | ||||||
| Closed circulation system | The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supplement oil automatically at low temperature. | ||||||
| Refrigerant | R-404A | R-404A | R404A | R404A | R404A | R404A | |
| Connection size | DN-15 or M24*1.5 | DN15 or M30*1.5 | DN20 or M30*1.5 | DN20 or M30*1.5 | DN20 or M30*1.5 | DN-25 M38*1.5 | |
| Water-cooled type W (cooling water at 20ºC) | 600L/H 1.5bar~4bar | 800L/H 1.5bar~4bar | 1500L/H 1.5bar~4bar | 1800L/H 1.5bar~4bar | 2600L/H 1.5bar~4bar | 3200L/H 1.5bar~4bar | |
| Dimension | water-cooled | 400*600*1050 | 400*600*1050 | 600*700*1150 | 600*700*1150 | 600*700*1150 | 700*700*1250 |
| air-cooled | 550*680*1450 | 620*700*1450 | 700*700*1750 | ||||
| Weight | water-cooled | 160kg | 185kg | 245kg | 285kg | 320kg | 360kg |
| air-cooled | 280kg | 320kg | 360kg | ||||
| Power | AC 220V 50HZ 4.5kW (max) | AC 380V 50HZ 6.5kW (max) | AC 380V 50HZ 9kW (max) | AC 380V 50HZ 12.5kW (max) | AC 380V 50HZ 16.5kW (max) | AC 380V 50HZ 24kW (max) | |
| Case material | SUS 304 | SUS 304 | SUS 304 | SUS 304 | SUS304 | SUS304 | |
| Optional | Optional Ethernet interface, configure PC operating software | ||||||
| Optional | Optional outside touch screen display controller (separated), the communication line distance is 10 meter. | ||||||
| Optional power | 220V 60HZ three-phase, 440V~480V 60HZ three-phase | ||||||
