Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Manual Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Poles Number: |
3 |
| Certification: |
CCC |
Product Description
Product Features

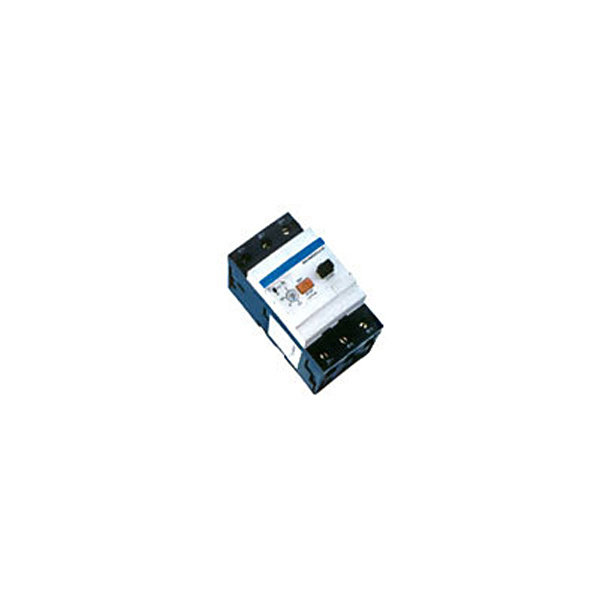

DZ519 breaker(GV3Motorcircuitbreaker)is applied to comtrol theoverload, phade-broken,short-circuir protection and non-frequent start of three-pha squirrel-cage asynchronous electromotor in the circui withmax AV 690 and 1A- 80Acurrent,and is used as distribrtion line protrction and nonfre quent overload conversion, and is also usedas the isolator.
Specification |
DZ519-M |
(GV3-M) |
(GV3-ME) |
DZ519-M10 |
6-10A |
6-10A |
DZ519-M16 |
10-16A |
10-16A |
DZ519-M20 |
14-20A |
14-20A |
DZ519-M15 |
16-25A |
16-25A |
DZ519-M400 |
25-40A |
25-40A |
DZ519-M63 |
40-63A |
40-63A |
DZ519-M80 |
56-80A |
56-80A |
Type |
The adjusting range commuting current for coppnents A. |
Kw AC-3,50HZ/60HZ
The standard power of three-phase electromotor KW.ac-350HZ/60HZ |
|
AMPS |
KW |
DZ519-M40 |
25-40 |
18.5 |
DZ519-M63 |
40-63 |
30 |
DZ519-M80 |
56-80 |
40 |
|
Elecal Industrial Automation is Specializing in the manufacture and export of low-voltage and hight-voltage electrical products in China. Such as MCB, MCCB, ELCB, RCD, Contactor, Fuse, Relay, Switch, Distribution Box etc.
All the manufacturing process of the products is in strictly conformity to international IEC standard and we have established and perfected quality control procedures in accordance with ISO9001 international quality management system.
