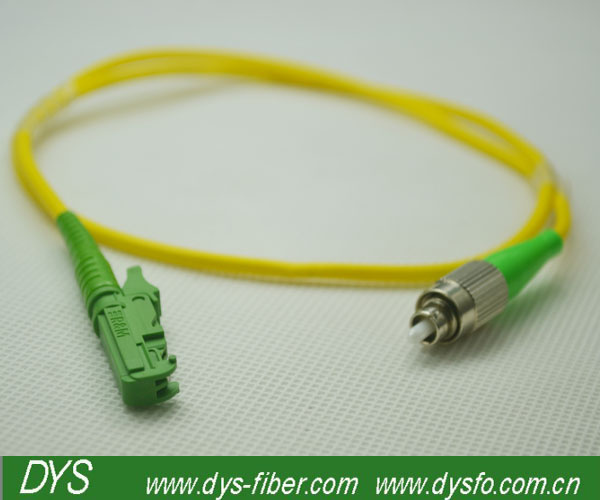

E2000-FC APC optical jumper cable
Fiber optic patch cord is available in both Single mode and multimode versions.
Both single-mode and multimode versions fiber optic patch cord come with a zirconia ceramic ferrule with pre-polished PC,UPC,APC profile and convex spherical end.
These end face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability
Features:
1.Low insertion loss and back reflection loss
2.Ferrule end surface pre-domed
3.Excellent mechanical endurance
4.Good in repeatability
5.Good in exchange
6.Green Production, CE, RoHS Standard
Application:
1.Telecommunications
2.CATV, LAN, MAN, WAN, Test &Measurement
3.Military industry
4.Medical
Parameter
| Mode | Single mode | Multimode |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.2dB | ≤0.2dB | ≤0.3dB |
| Return Loss | ≥55dB | ≥65dB | ≥35dB |
| Interchangeability | ≤0.2dB |
| Salt Spray | ≤0.1dB |
| Repeatability | ≤0.1dB (1000 times) |
| Vibration | ≤0.2dB (550Hz 1.5mm) |
| Temperature | ≤0.2dB (-40+85 sustain 100 hours) |
| Humidity | ≤0.2dB (+25+65 93 R.H.100 hours) |
| Apex Offset | 0μm ~ 50μm |
| Radius of Curvature | 7mm ~ 25mm |
| Standards-Compliant | ROHS,IEC and GR-326 |
| Fiber cable performance specifications |
| Fiber type | Min.Bandwidth | Distance | attenuation |
| 62.5/125 | 850/1300nm
200/500 MHz/Km | @100Mbps 2km @1Gig 220m | 850/1300nm
3.0/1.0dB/km |
| 50/125 | 850/1300nm
500/500 MHz/Km | @100Mbps 2km @1Gig 500m | 850/1300nm
3.0/1.0dB/km |
50/125
10Gig Optimized | 850/1300nm
2000/500 MHz/Km | @100Gig Varies by VCSEL typical 300m 2850nm | 850/1300nm
3.0/1.0dB/km |
| 9/125 | 1310/1550nm
Approx 100 Terahertz | Up to 100km Varies by transceiver | 1310/1550nm
0.4/0.3dB/km |
| Fiber type | Single mode:
1,9/125-G652D
2,9/125-G655
3,9/125-G657 |
Multimode:
4,50/125-OM2
5,62.5/125-OM1
6,50/125-OM3 |
| Fiber | Corning,China Fiber,other |
| Connector1 | SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others |
| Polishing | PC,UPC,APC,MTRJ Male connector,MTRJ female connector |
| Connector2 | SC,FC,LC,ST,MU,DIN,MTRJ,E2000,MPO,SMA,D4 and others |
| Polishing | PC,UPC,APC,MTRJ Male connector,MTRJ female connector |
| Cord type | Simplex ,Duplex |
| Cable diameter | 0.9mm ,2.0mm,1.8mm 3.0mm |
| Cable jacket | PVC,LSZH,OFNR,OFNP |
| length(M) | 0.5m,1m,3M,5m,10m,20m,200m |
