Product Specifications
| Prod Model: |
EARROW 4-stroke engine with CE/ outboard motor |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Recommended Fuel: |
Unleaded Gasoline |
| Colour: |
Jewelry Blue, Pearl White, Dark Grey |
| Ignition System: |
Cdi |
| Control System: |
Tiller Handle |
| Starting System: |
Manual |
| Starting Carburation System: |
Choke Valve |
| Gear Position: |
Forward-Neutral-Reverse |
| Type: |
Fishing Vessels |
| Material: |
Alloy |
| Marine Parts: |
Engine/Motor |
Product Description

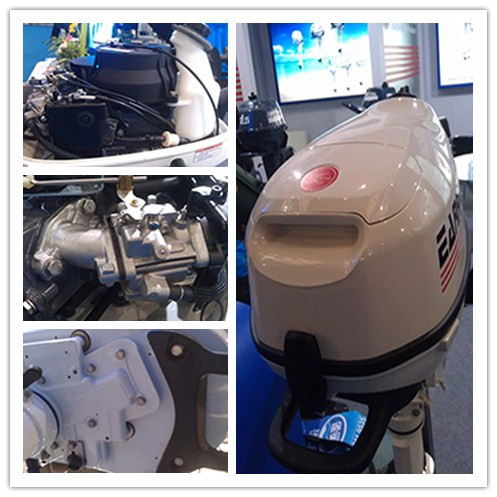

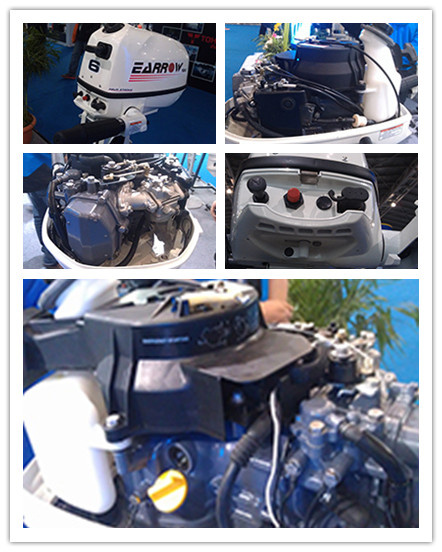

Product: EARROW 4-stroke engine with CE/ outboard motor/ outboard engine
R & D TeamOEM service available;All of our key engineers came from the previous BRP outboard factory of China DG, with more than 20years' experience.Warranty 1 year for commercial usage;3 years for pleasure;Specifications
1. Lower Noise
2. More Stable
3. Factory price
4. Beautiful shape and appearance
5. Top cover more durable
6. Various engine series
7. New design
Series:Two stroke: 2.5hp;3hp;4hp;5hp;9.9hp;15hp;18hp;30hp;Four stroke: 2.5hp;4hp;5hp;6hp CertificationCE/SGS/ISO 9001 ITEM: outboard motors
Type: outboard motors for sale
Details- production time: 20ays after order confirm and receive 30% deposit
- CE standard, FOB Ningbo, USD currency
- MOQ: 1~10 unit
- shade material details pls check attached quotation sheet
- packing details as attached also
- samples: 2 working days, we keep stock. Freight collect. Courier cost need to check with express when packing finished
About Us
We are Chinese professional outboard motor manufacturer. All our outboards are CE approval and our factory is ISO9001 qualified.
Our product range is from 2.5hp to 30hp,both two and four stroke are available.
Philosophy
Quality First, User-oriented Management, Dedication to customer servicesProduct Series
3-30HP outboard motor
4 stroke 6HP outboard engine, one cylinder.
Port of Load
Ningbo, our factory is located in xiapu zone of beilun Ningbo Zhejiang China, the over street is a container storage yard. Very convenient for delivery. | F6C |
| Dimension | Overall length: 750mm (29.5in) |
| Overall width :333mm (13.1in) |
| Overall height S :1040mm (40.29in) |
| Overall height L :1168mm (46in) |
| Net weight (S/L) | 27kg/ 28kg |
| Gross weight (S/L) | 35kg/ 36kg |
| Package Size (S/L) | 115*45*57.5 cm³ / 128*45*57.5 cm³ |
| Full Throttle Operating Range | 4500-5500 r/m |
| Maximum Output | 4.4kw/6hp |
| Idling Speed | 1500±50r/m |
| Type | Four Stroke |
| Displacement | 139cc |
| Bore×Stroke | 62×46mm |
| Ignition System | CDI |
| Spark Plug | NGK BR7HS-10 |
| Spark Plug Gap | 0.6-0.7mm |
| Control System | Tiller Handle |
| Starting System | Manual |
| Starting Carburation System | Choke Valve |
| Gear Position | Forward-Neutral-Reverse |
| Gear Ratio | 2.08 (27:13) |
| Trim and Tilt System | Manual Tilt |
| Recommended Fuel | Unleaded Gasoline |
| Gear Oil | 0.1L |
| Fuel Tank Capacity | 1.1L |
