Earth Magnet

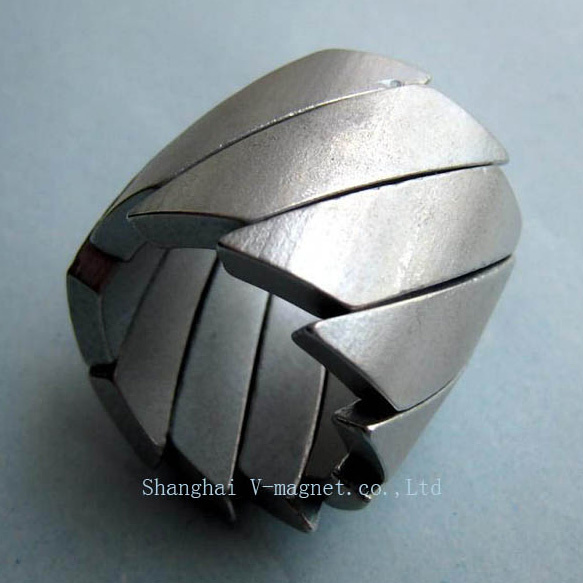

Name: Earth Magnet
Brand: china-manufacturer-directory.com
SKU: 699538615
Availability: InStock
Rating: 4.4 (142 reviews)

Supplier:	Shanghai V-Magnet Co., Ltd.
Price:	US $ 1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Permanent
Composition:	NdFeB Magnet
Coating:	Nickel
Application:	Industrial Magnet
Shape:	Arc or Cup

Product Description

Earth magnet---HS: 85051110---OEM all size and shape!
Magnet N-( N35, N38, N40, N42, N45, N48, N50), Magnet M-(35M, 38M, 40M, 42M, 45M, 48M), Magnet H-(35H, 38H, 40H, 42H, 45H), Magnet SH-(30SH, 33SH, 35SH, 38SH, 40SH, 42SH), Magnet UH-( 28UH, 30UH, 33UH, 35UH, 38UH), Magnet EH-(28EH, 30EH, 30EH, 33EH, 35EH)

1) Available shape: Arc, Disc/cylinder, block, segment, sphere, ring, bar/stick, tube and magnetic ring with various sizes. According to the customer's requirement(OEM)
2) Available coating: Zn, Ni, Ni-Cu-Ni, Epoxy, CR3+ZN, NI+AG, NI+AU.
3) Magnetized direction: Multiple poles on face alone axial, radial magnetized and other special magnetized pattern.
Olny provide drawing, you can get right earth magnet!

Magnetic properties of Sintered NdFeB magnets:
Grade	Remanence	Coercive Force	Intrinsic Coercive Force	Max. energy product	Max.
					Operating
					Temperature
	Br	Hcb	Hcj	(BH )	Tw
				max
	mT	kA/m	kA/m	kJ/m3
	(kGs)	(kOe)	(kOe)	(MGOe)
N35	1170-1220	> = 868	> =955	263-287	80 C
	(11.7-12.2)	( > = 10.9)	( > = 12)	(33-36)
N38	1220-1250	> =899	> =955	287-310	80 C
	(12.2-12.5)	( > = 11.3)	( > = 12)	(36-39)
N40	1250-1280	> = 907	> =955	302-326	80 C
	(12.5-12.8)	( > = 11.4)	( > = 12)	(38-41)
N42	1280-1320	> = 915	> =955	318-342	80 C
	(12.8-13.2)	( > = 11.5)	( > = 12)	(40-43)
N45	1320-1380	> = 923	> =955	342-366	80 C
	(13.2-13.8)	( > = 11.6)	( > = 12)	(43-46)
N48	1380-1420	> = 923	> =955	366-390	80 C
	(13.8-14.2)	( > =11.6)	( > = 12)	(46-49)
N50	1400-1450	> = 796	> =955	382-406	80 C
	(14.0-14.5)	( > = 10.0)	( > = 12)	(48-51)
N52	1430-1480	> = 796	> =955	398-422	80 C
	(14.3-14.8)	( > = 10.0)	( > = 12)	(50-53)
33M	1130-1170	> = 836	> = 1114	247-263	100 C
	(11.3-11.7)	(> = 10.5)	( > = 14)	(31-33)
35M	1170-1220	> = 868	> = 1114	263-287	100 C
	(11.7-12.2)	( > = 10.9)	( > = 14)	(33-36)
38M	1220-1250	> = 899	> = 1114	287-310	100 C
	(12.2-12.5)	( > = 11.3)	( > = 14)	(36-39)
40M	1250-1280	> = 923	> = 1114	302-326	100 C
	(12.5-12.8)	( > = 11.6)	( > = 14)	(38-41)
42M	1280-1320	> = 955	> = 1114	318-342	100 C
	(12.8-13.2)	( > = 12.0)	( > = 14)	(40-43)
45M	1320-1380	> = 995	> = 1114	342-366	100 C
	(13.2-13.8)	( > = 12.5)	( > = 14)	(43-46)
48M	1360-1430	> = 1027	> = 1114	366-390	100 C
	(13.6-14.3)	( > = 12.9)	( > = 14)	(46-49)
50M	1400-1450	> = 1033	> = 1114	382-406	100 C
	(14.0-14.5)	( > = 13.0)	( > = 14)	(48-51)
35H	1170-1220	> = 868	> = 1353	263-287	120 C
	(11.7-12.2)	( > = 10.9)	( > = 17)	(33-36)
38H	1220-1250	> = 899	> = 1353	287-310	120 C
	(12.2-12.5)	( > = 11.3)	( > = 17)	(36-39)
40H	1250-1280	> = 923	> = 1353	302-326	120 C
	(12.5-12.8)	( > = 11.6)	( > = 17)	(38-41)
42H	1280-1320	> = 955	> = 1353	318-342	120 C
	(12.8-13.2)	( > = 12.0)	( > = 17)	(40-43)
45H	1320-1360	> = 963	> = 1353	326-358	120 C
	(13.2-13.6)	( > = 12.1)	( > = 17)	(43-46)
48H	1370-1430	> = 995	> = 1353	366-390	120 C
	(13.7-14.3)	( > = 12.5)	( > = 17)	(46-49)
35SH	1170-1220	> = 876	> = 1592	263-287	150 C
	(11.7-12.2)	( > = 11.0)	( > = 20)	(33-36)
38SH	1220-1250	> = 907	> = 1592	287-310	150 C
	(12.2-12.5)	( > = 11.4)	( > = 20)	(36-39)
40SH	1240-1280	> = 939	> = 1592	302-326	150 C
	(12.5-12.8)	( > = 11.8)	( > = 20)	(38-41)
42SH	1280-1320	> = 987	> = 1592	318-342	150 C
	(12.8-13.2)	( > = 12.4)	( > = 20)	(40-43)
45SH	1320-1380	> = 1003	> = 1592	342-366	150 C
	(13.2-13.8)	( > = 12.6)	( > = 20)	(43-46)
28UH	1020-1080	> = 764	> = 1990	207-231	180 C
	(10.2-10.8)	( > = 9.6)	( > = 25)	(26-29)
30UH	1080-1130	> = 812	> = 1990	223-247	180 C
	(10.8-11.3)	( > = 10.2)	( > = 25)	(28-31)
33UH	1130-1170	> = 852	> = 1990	247-271	180 C
	(11.3-11.7)	( > = 10.7)	( > = 25)	(31-34)
35UH	1180-1220	> = 860	> = 1990	263-287	180 C
	(11.8-12.2)	( > = 10.8)	( > = 25)	(33-36)
38UH	1220-1250	> = 876	> = 1990	287-310	180 C
	(12.2-12.5)	( > = 11.0)	( > = 25)	(36-39)
40UH	1240-1280	> = 899	> = 1990	302-326	180 C
	(12.5-12.8)	( > =11.3)	( > = 25)	(38-41)
28EH	1040-1090	> = 780	> = 2388	207-231	200 C
	(10.4-10.9)	( > = 9.8)	( > = 30)	(26-29)
30EH	1080-1130	> = 812	> = 2388	223-247	200 C
	(10.8-11.3)	( > = 10.2)	( > = 30)	(28-31)
33EH	1130-1170	> = 876	> = 2388	247-271	200 C
	(11.3-11.7)	( > = 10.5)	( > = 30)	(31-34)
35EH	1170-1220	> = 876	> = 2388	263-287	200 C
	(11.7-12.2)	( > = 11.0)	( > = 30)	(33-36)
38EH	1220-1250	> = 899	> = 2388	287-310	200 C

Shanghai V-Magnet Co., Ltd. Was founded in 1998. We are a professional manufacturer of permanent magnet products, including NdFeB, AlNiCo, SmCo, ferrite magnets, flexible magnet, magnetic hook(pot) and some other magnetic applications.

We can supply NdFeB permanent magnets in various sizes, shapes and dimensions at the requests of customers and will deliver them in the shortest possible time. At present, We are able to mass produce N52, N48H, N42SH, N40UH, N38EH and other brands, technology is the leading in domestic, the annual production ability is 8000 tons.

Products are widely used in DC motor, permanent magnet generator, electronic and electrical appliances, instrumentation, sensors, mechanical equipment and some other fields.

High-quality products provided and have excellent service for the customers all over the world.

Determined to become a magnetic material solution experts!
